3.3. Measurements
Resistance measurements operate in auto/manual ranging; voltages operate in
auto/manual ranging and current measurements are only manual ranging.
AUTO on the display means auto ranging, no AUTO indicated is manual ranging.
key operation : To change to manual ranging, press the range key. Each additional
press of the key will move the decimal place. To go back to AUTO ranging, hold the range
key for longer than two seconds.
1 ) Resistance Testing
Pressing the resistance key, enters the resistance testing mode on the SBS-6500.
resistance, voltage and temperature all are measured simultaneously.

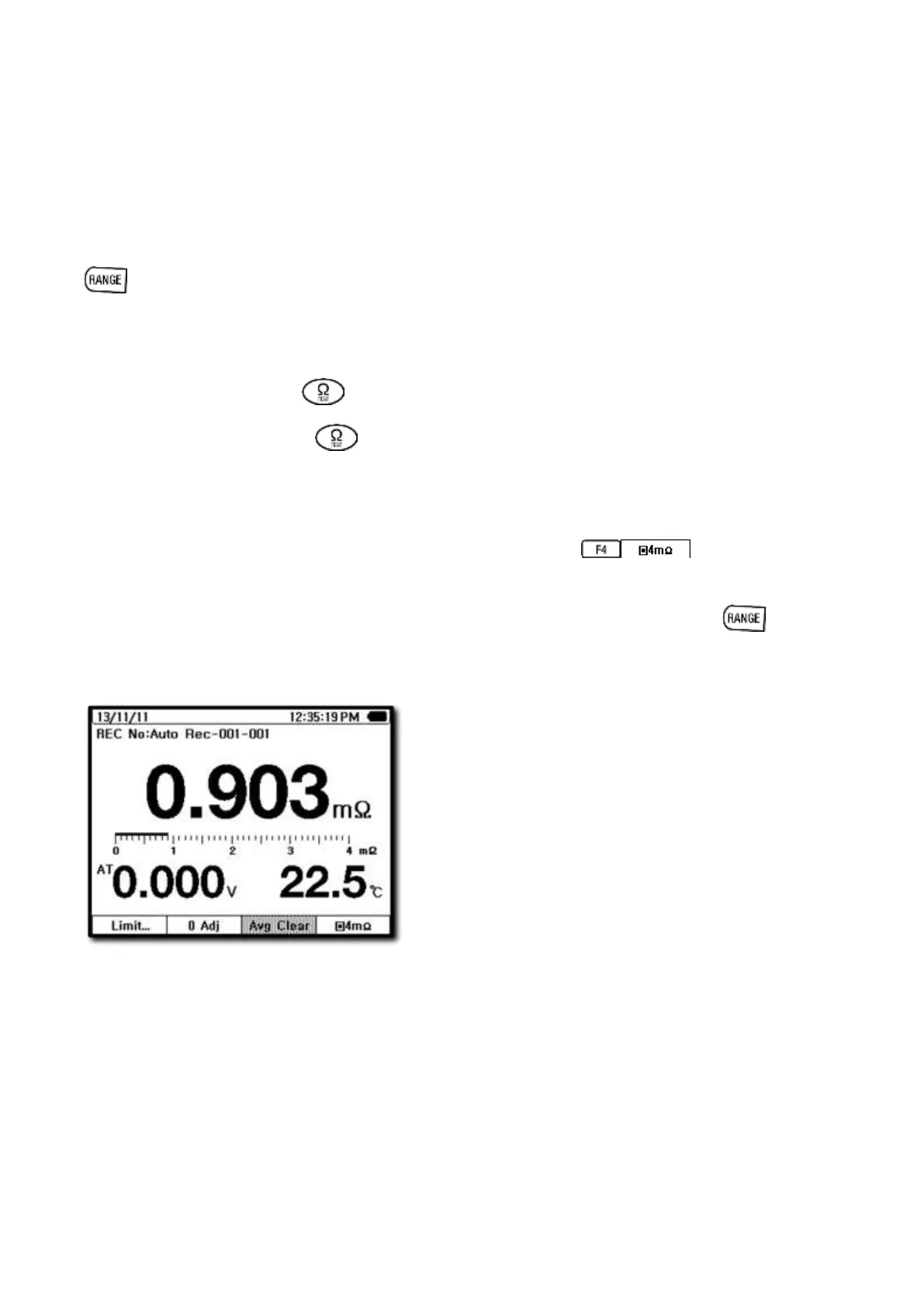

The unit defaults to be in auto ranging ( 40mΩ- 4 Ω )
4mΩ range is active in manual ranging only – press the key to change to
this range.
To change the range in manual ranging in 40mΩ- 4 Ω ranges, press the key and
change ranges. Each time the key is pressed it changes range (moving the decimal
point one place each time).
