SBS-6500 User Manual
Storage Battery Systems, LLC.
10. SBS-2003 Digital Hydrometer SG Upload
The SBS-6500 has been designed to merge specific gravity readings from the battery cells
taken with the SBS-2003 Digital Hydrometer into the data blocks along with resistance,
voltage and temperature data. This allows for a single report to be generated with all
maintenance data in place.
10.1 Transfer Specific Gravity Data (SBS-2003 Required)
[Operation Procedure]

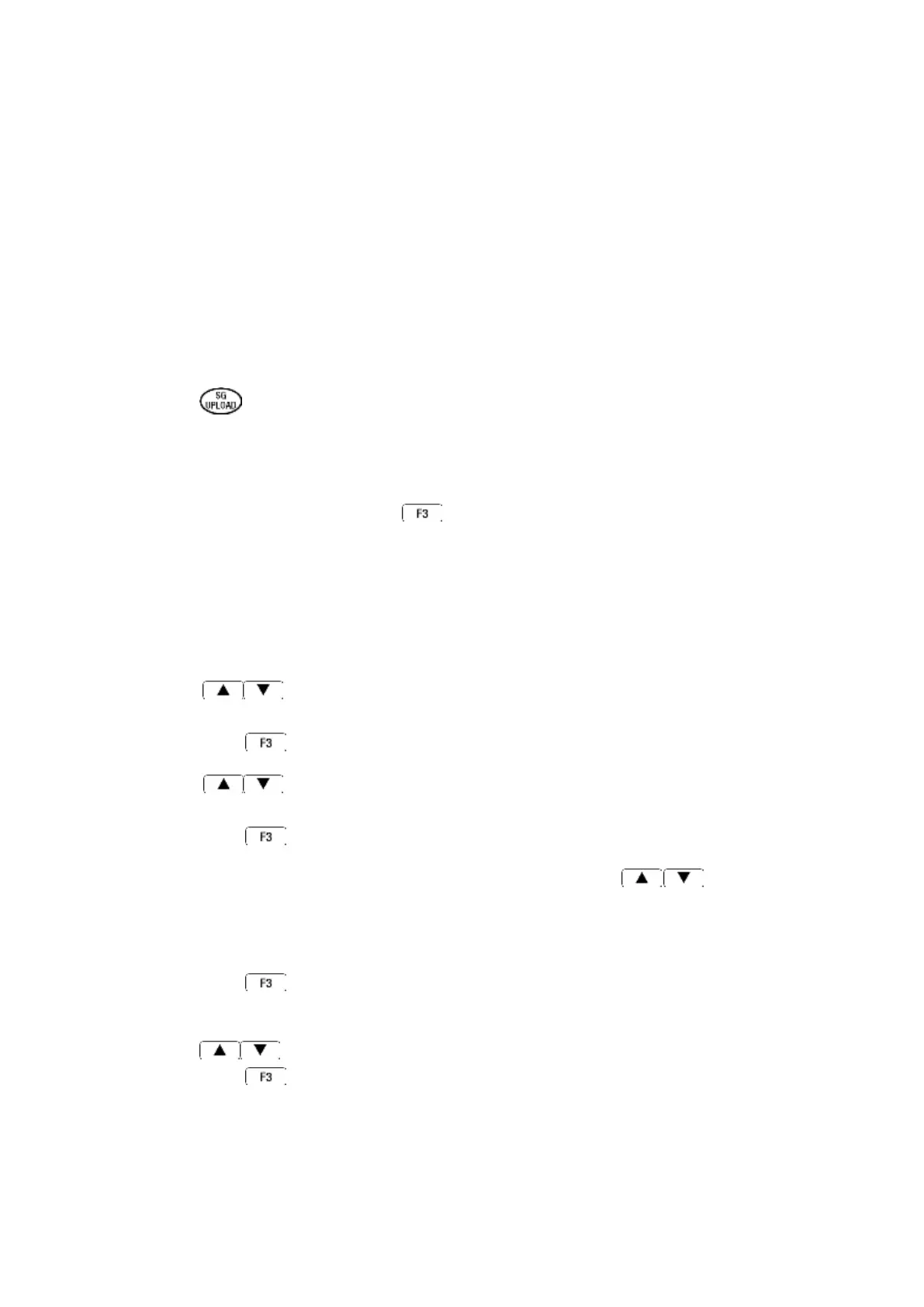

① Press the key to enter the SG Upload display screen.
② Follow the on screen instructions to prepare transfer of data from the SBS-2003.
③ Once the SND command is entered on the SBS-2003 and the ( - - -) begins to
scroll across the screen, press the NEXT key on the SBS-6500.
④ The SBS-6500 and SBS-2003 will automatically pair and transmit all of the readings
stored in the memory of the SBS-2003 (maximum of 250 readings into a string).
⑤ Once the devices begin data transfer, progress information will appear on both units as
data is transmitted.
⑥ Press the keys to select the first number of the group of specific gravity
readings that needs to be copied.
Then press the NEXT key.
⑦ Press the keys to select the last number of the group of specific gravity
readings that needs to be copied.
Then press the NEXT key.
⑧ The string list will be automatically displayed. Use the keys to select
destination string where you want to copy the specific gravity readings into. NOTE:
voltage and resistance readings must be in the blocks in order to import specific
gravity readings.
Then press the NEXT key.
⑨ Test numbers of then string are displayed.
Press the keys to select destination test number.
Then press the NEXT key.
