Mistral Operating Instructions
Part No. SCAZ037980 v6.0.2 14 E&OE
LCD Monitor

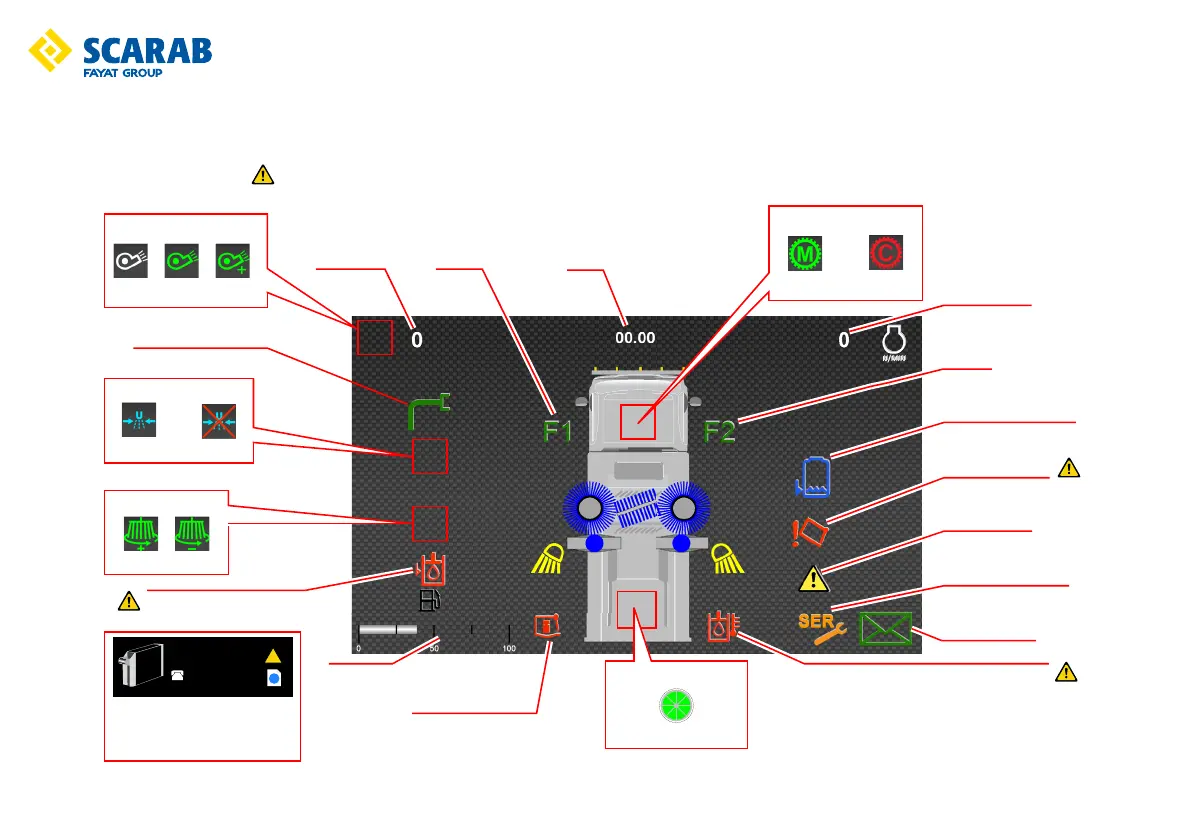

The sweeping monitor displays information on the current status of the sweeper while it is in sweep mode, by indicating which items of equipment are active, plus other relevant
information i.e. fluid levels, fan speed and temperatures, it also alerts the user to any warnings by means of appropriate flashing symbols and, when appropriate, a warning
buzzer. For warnings identified by , stop and investigate the cause. The accompanying illustration shows the range of information/alert symbols that can be displayed,
however it should be noted that warning symbols (*) only illuminate when a specific condition occurs.
!
N/MIN
N/MIN
F1
F1
F2
F2
00.00
0
0 50 100
0
Fan speed
Suction fan
OFF ON BOOST
TimeOption
Engine speed
Option
+
!
NODE Software Error !
+44 1622 831006
i
Wander hose active
High pressure water
ON No water
Brush speed
Fast Slow
Flashes across screen
when Node software is
incompatible
Fuel level
auxiliary engine
Hopper overload
warning *
Hydraulic oil temperature warning *
Assign node *
Low water level
(dust suppression) *
Hopper raised *
Fault active *
Service reminder *
Reduction gearbox
Manual Crawler
Fan speed indicator
2000 rpm
Low hydraulic oil level *
To Next Page
