Hydraulic oil tank
Wear appropriate PPE.
Ensure that the hopper safety prop has deployed correctly when working beneath a raised hopper. failure to do so could result in serious injury.
When mounting the chassis always use the access steps and tread plates. Ensure they are free from contamination that may cause them to become slippery. Always
wear suitable footwear with clean and dry soles.
Ensure that the sweeper is on a flat and level surface with the auxiliary engine stopped for a suitable period, to allow the oil to cool.
Hydraulic oil: HLP32 or equivalent. Fuchs Renolin B10 VG 32 (as used by Scarab
Sweepers).
It is advisable to top-up the Hydraulic oil level when the system is cold.
The hopper must be in a fully lowered position for checking the hydraulic oil
level and when topping up.
Topping-up
1. Open the right hand engine gantry door to gain access to the hydraulic
tank.
2. Using the appropriate size spanner, remove the filler cap q.
3. Top-up with HPL 32 or an equivalent hydraulic oil to the appropriate level.
4. Remember the hopper has to be down to check the hydraulic oil level.
5. Replace the filler cap q.

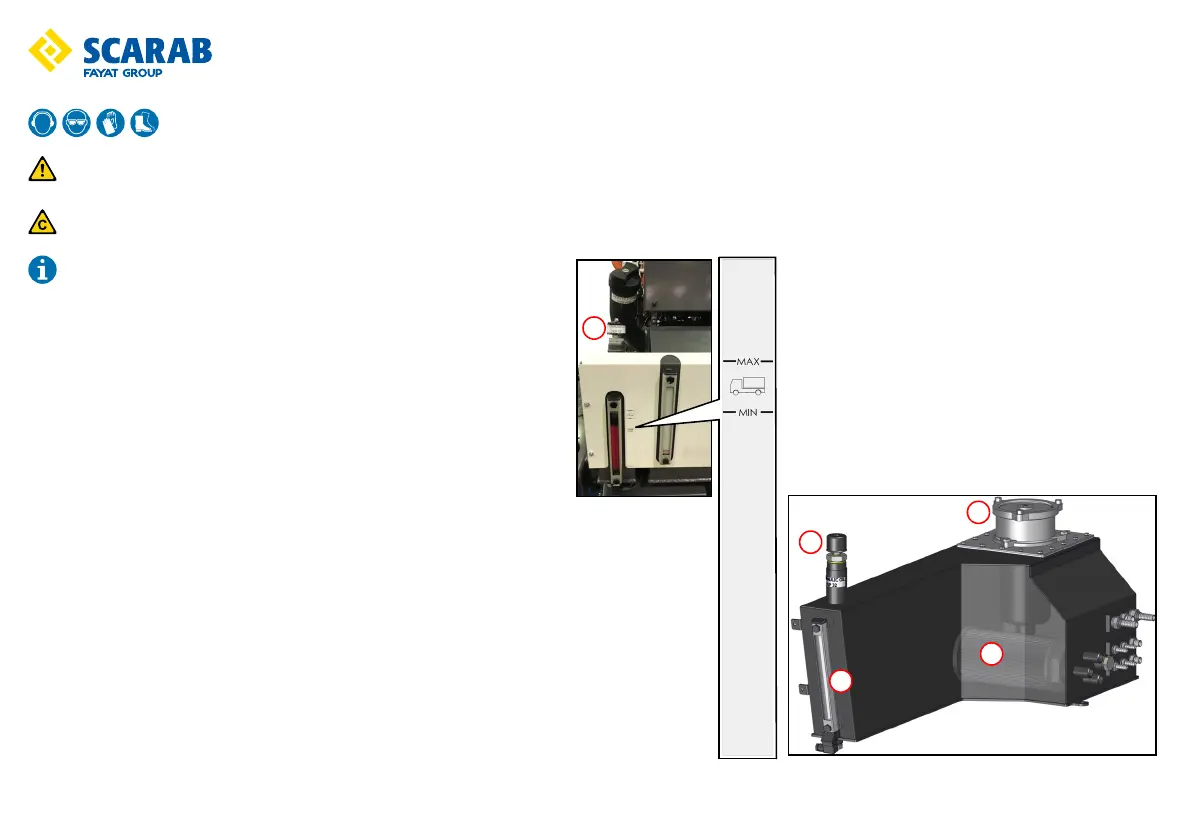

Oil tank components
q - Fill/breather cap.
w - Return filter.
e - Sight glass.
r - Suction filter.
