Mistral Operating Instructions
Part No. SCAZ037980 v6.0.2 2 E&OE

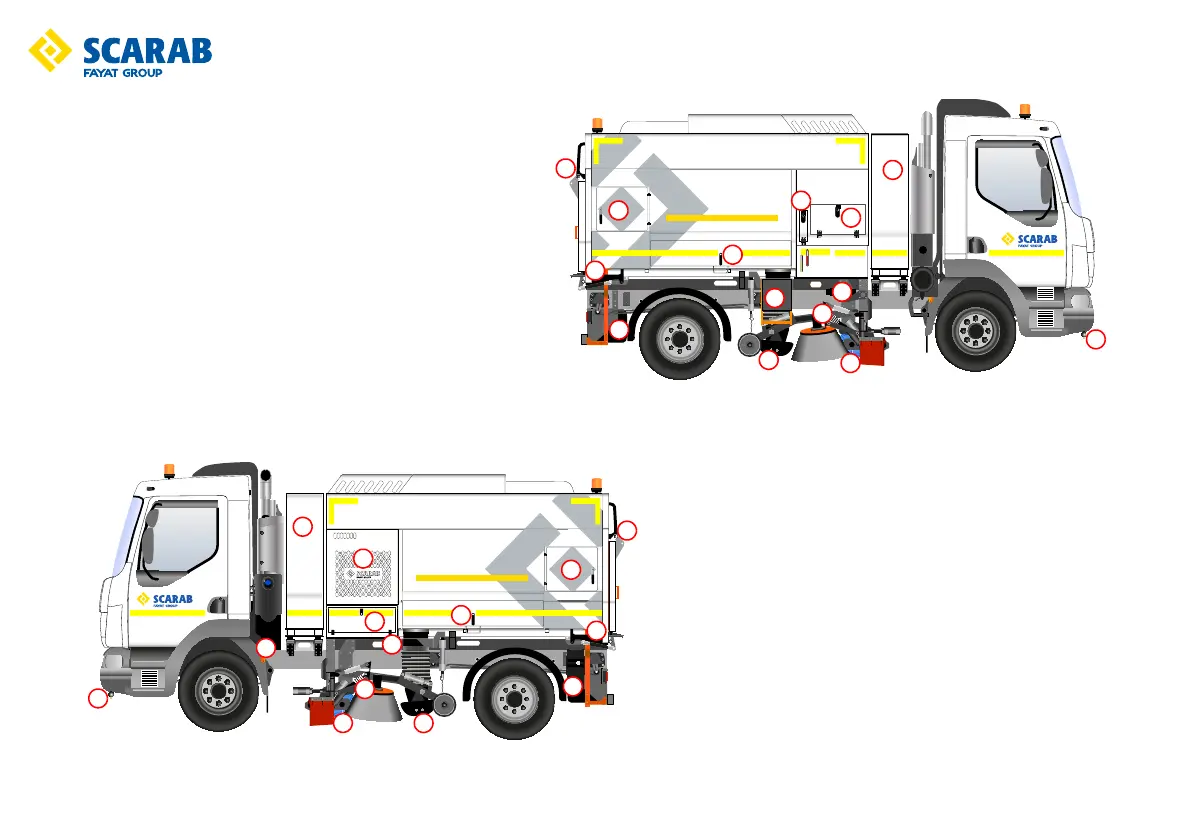

q Water tank.
w Access cover, pneumatic and electronic cabinet.
e Access cover, auxiliary engine fuel and hydraulic oil filling.
r Storage locker.
t Side loading hatch.
y Door open/close ram.
u Vehicle fuel tank, orientation is dependant on chassis.
i Access ladder to auxiliary engine.
o Low pressure water pump and valves.
⑩ Central brush (wide sweep) assembly.
⑪ Low pressure and/or high pressure spray bar.
⑫ Shut off valve, high pressure front spray bar.
⑬ Hydraulic oil and auxiliary engine water cooler location.
⑭ Access cover, pneumatic valve block.
⑮ Auxiliary hand pump.
⑯ Side brush assembly.
⑰ Suction nozzle assembly.
⑱ High pressure hose reel, orientation dependant on chassis.
⑲ Rear door locking mechanism.
MISTRAL
1
2
3
4
5
6
7
8
9
10
11
16
17
19
MISTRAL
4
5
1
6
10
11
12
13
14
15
16
17
18
19
