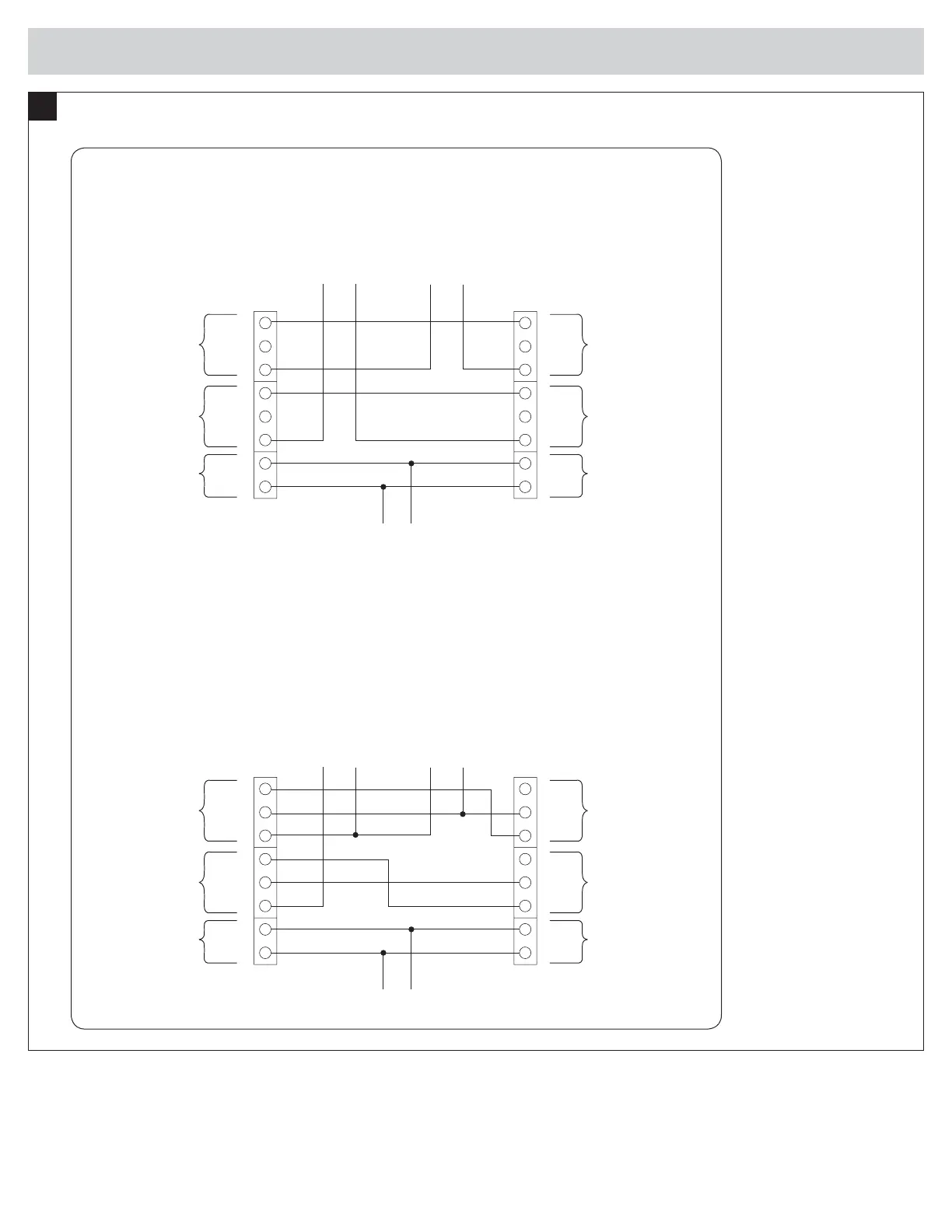

8 CONNECT WIRING TO BOARD (PLUS MODEL)
8a
Connect Outside Wires to Boards
• Choose between NO or NC.
DC Power
NO
NC
C
NO
NC
C
DC (+)
DC (-)
MBS: 1A, 30VDC,
Resistive
DPS: 0.25A, 30VDC,
Resistive
NO
NC
C
NO
NC
C
DC (+)
DC (-)
Normally Open
(NO)
MBS MBS
Normally Open
(NO)
DPS DPS
DC Power
MBS: 1A, 30VDC,
Resistive
DPS: 0.25A, 30VDC,
Resistive
DC(-) DC(+)
Mag Lock
Board
Mag Lock
Board
Normally Open (NO) Wiring in Parallel
Switch position will be closed when doors are closed and locked.
To be used with normally open terminals
Switch position will be open when doors are closed and locked.
To be used with normally closed terminals
DC Power
NO
NC
C
NO
NC
C
DC (+)
DC (-)
MBS: 1A, 30VDC,
Resistive
DPS: 0.25A, 30VDC,
Resistive
NO
NC
C
NO
NC
C
DC (+)
DC (-)
Normally Closed
(NC)
MBS MBS
In Out
Normally Closed
(NC)
DPS DPS
In Out
DC Power
MBS: 1A, 30VDC,
Resistive
DPS: 0.25A, 30VDC,
Resistive
DC(-) DC(+)
Mag Lock
Board
Mag Lock
Board
Normally Closed (NC) Wiring in Parallel
