Schlage M422 - Verify Magnet Adjustment; Prepare Additional Holes; Install Eight; Screws

7
5h

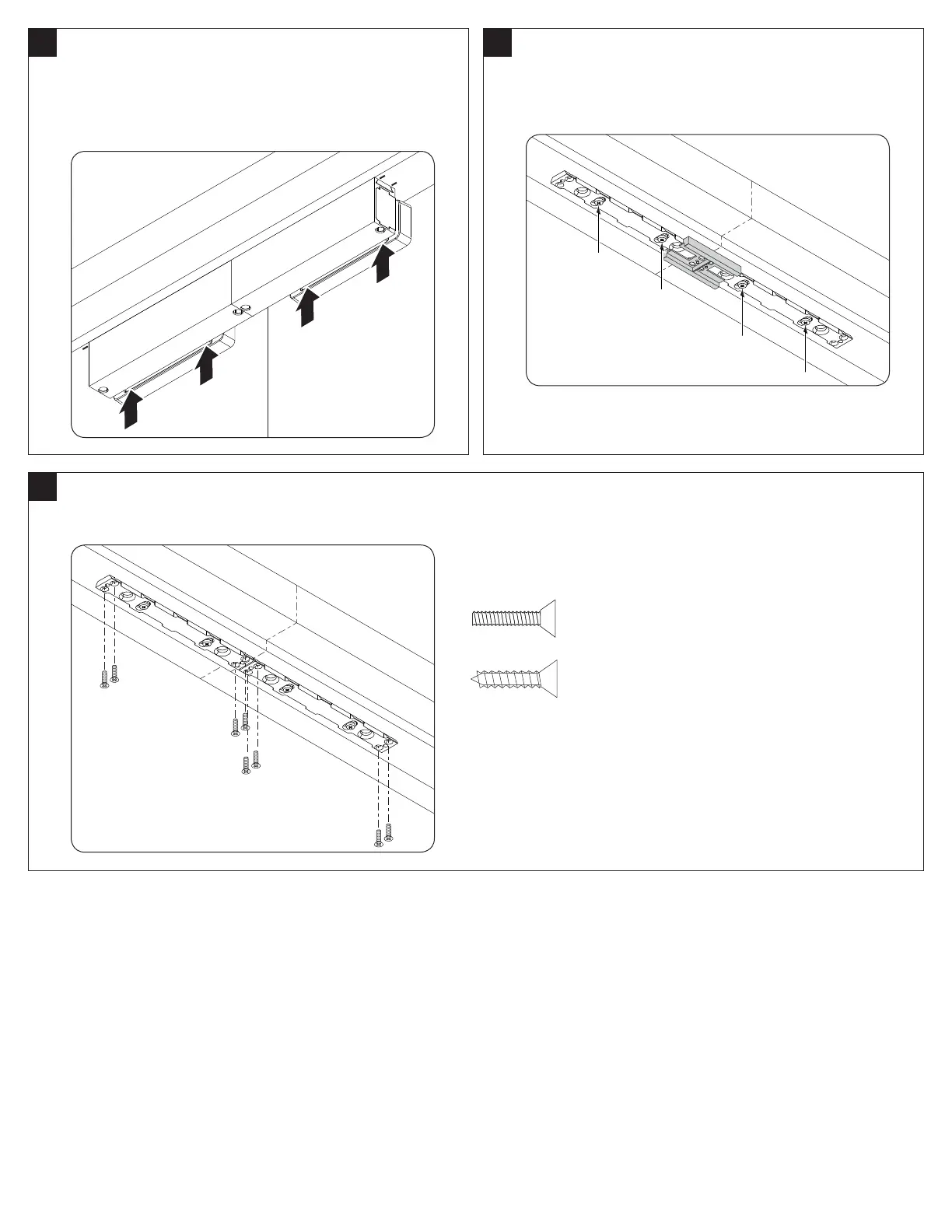

Verify magnet Adjustment
• Close door and verify magnets make full contact with
armatures.
• If alignment is satisfactory, go to step 5i.
• If further adjustment is required, repeat steps
5e through 5h.
Magnets making full
contact with armatures
INSIDE
5i
Prepare Additional Holes
• Install alignment tool on brackets.
• Fully tighten four (4) screws.
• Drill eight (8) remaining holes. Use #10-24 tap if
metal is reinforced.
Fully tighten four screws
OUTSIDE
5j
Install Eight (8) Screws
• Remove alignment tool.
• Install and fully tighten eight (8) screws.
OUTSIDE
Actual Size
Reinforced
Metal
Sheet
Metal
