Schlage M422 - Review Plug Locations; Connect Plugs to Boards; Connect ATS Wires

11
8b

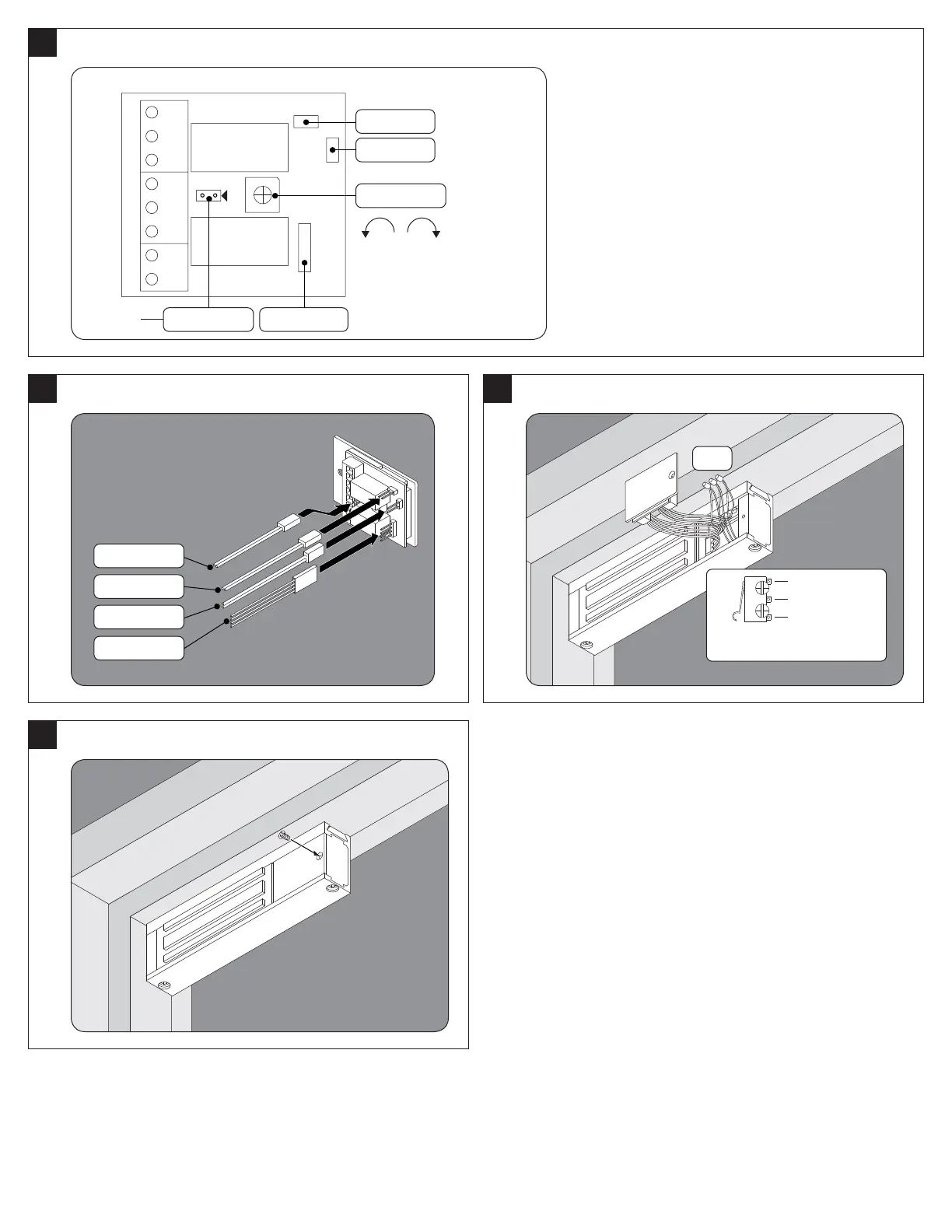

Review Plug Locations
TB1
TB2
TB3
From Magnet
From LED
From MBS
From MBS
RTD Adjuster
RED
Polarized
Black/Red
Note: Two MBS
plugs are
interchangeable
Min.
Time
Max.
Time
Mag Lock Board
8c
Connect Plugs to Boards
From Magnet
From LED
From MBS
From MBS
8d
Connect ATS Wires
ATS
NC (violet)
NO (gray)
C (white)
Switch Rating:
1A @ 30VDC, Resistive
8e
Install Covers
