ELECTRICAL SPECIFICATIONS
Model
Amps (12VDC)
Per Lock
Amps (24VDC)
Per Lock
Holding Force
(lbs) Per Coil
M422 1.500 0.760 500
M452 1.500 0.760 1000
M492 1.300 0.700 1500
LOCK INSTALLATION
1 PREPARE FOR INSTALLATION
1a

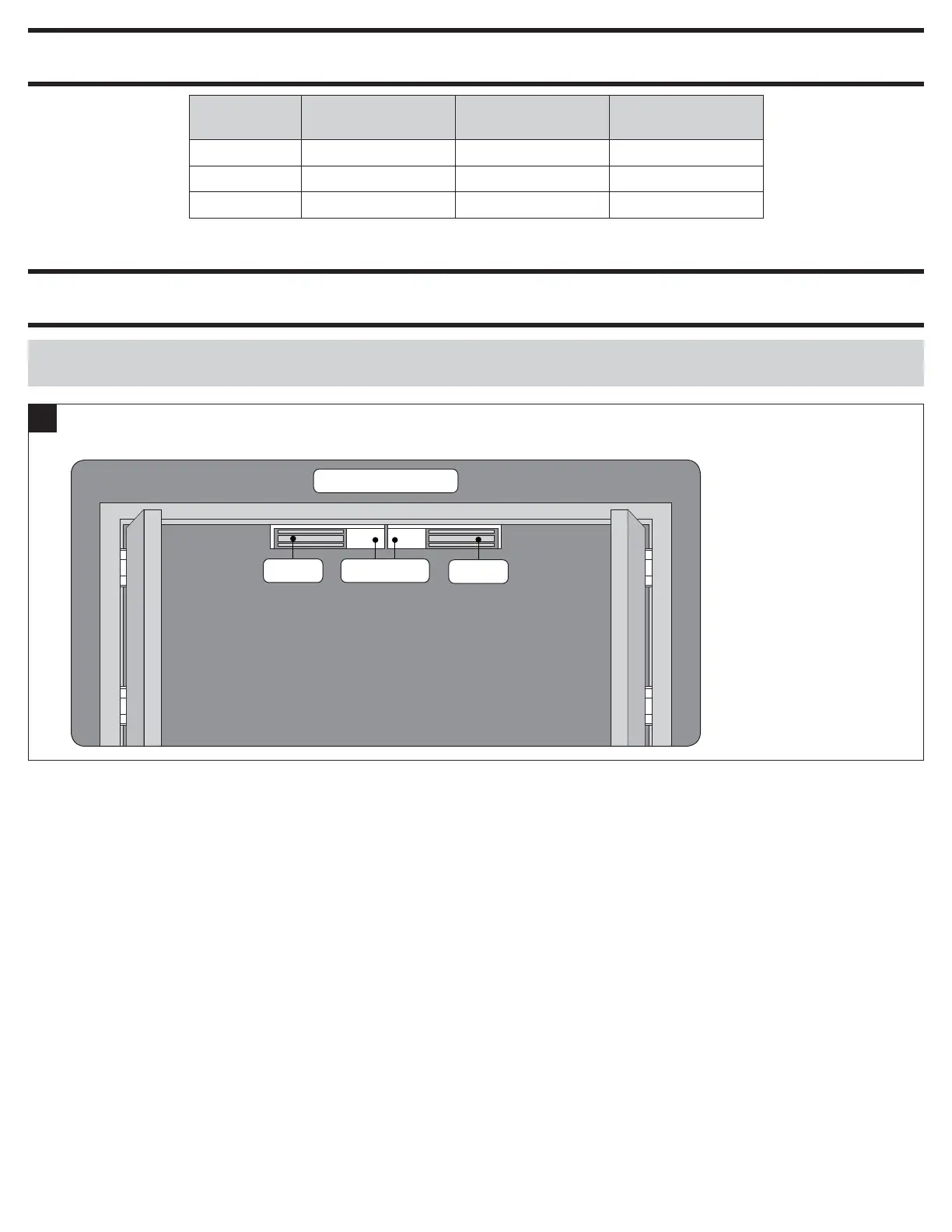

Lock Orientation
• Locks should be installed with wiring covers in the middle, so the magnet in one of the locks must be reoriented.
Shown from Exterior
Magnet
Magnet
Wiring Covers
