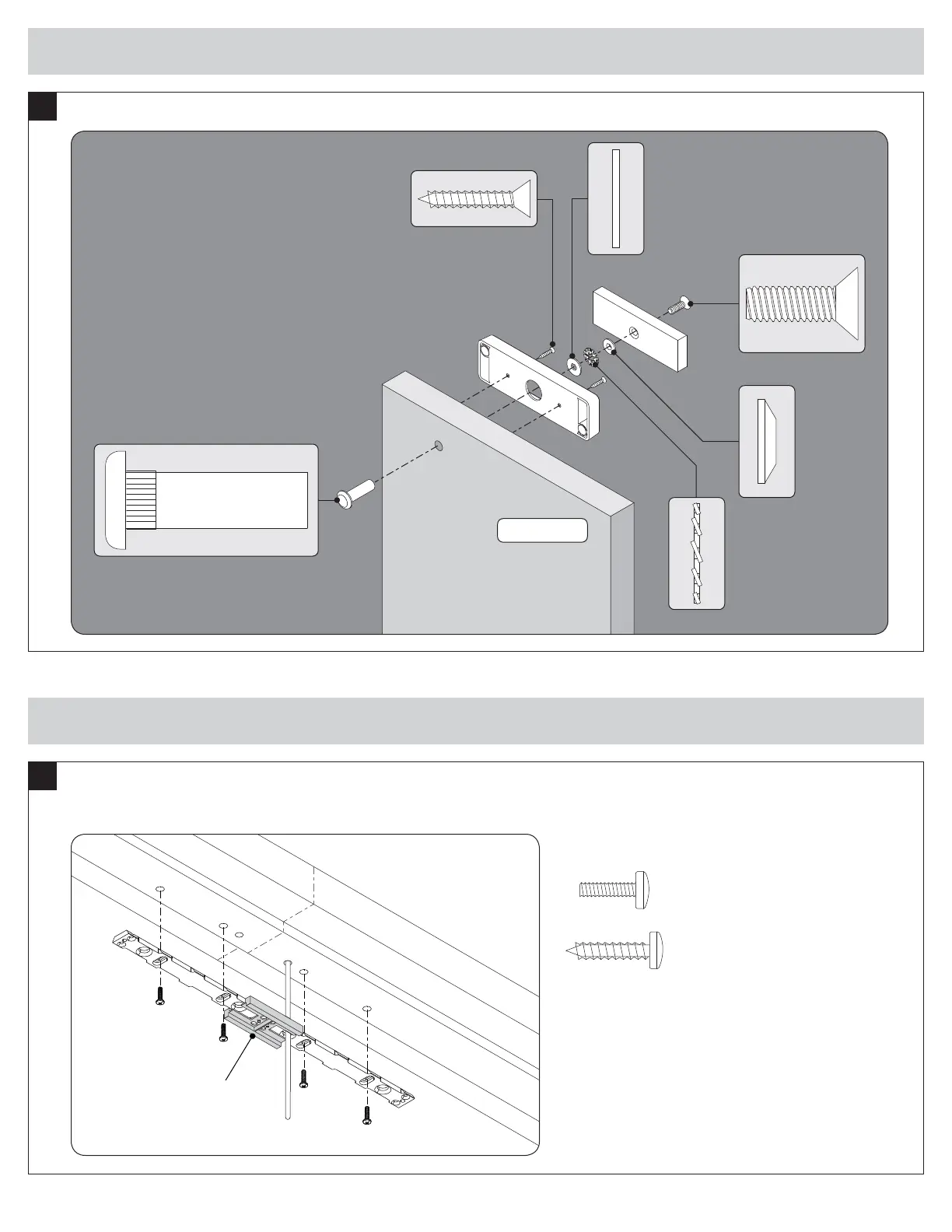

4 ATTACH ARMATURES TO DOORS
4a
Install as Shown
Outside
2x
5 INSTALL MOUNTING BRACKETS INTO FRAME
5a
Attach Mounting Brackets Temporarily
• Install alignment tool onto brackets.
• Install four (4) screws into slotted holes and partially tighten.
OUTSIDE
Wires
Alignment tool
Actual Size
Metal
Wood
