Schlage M422 - Remove Wiring Covers and End Blocks; Slide One Magnet Onto Bracket; Slide Second Magnet Onto Bracket; Align Magnets to Armatures

6

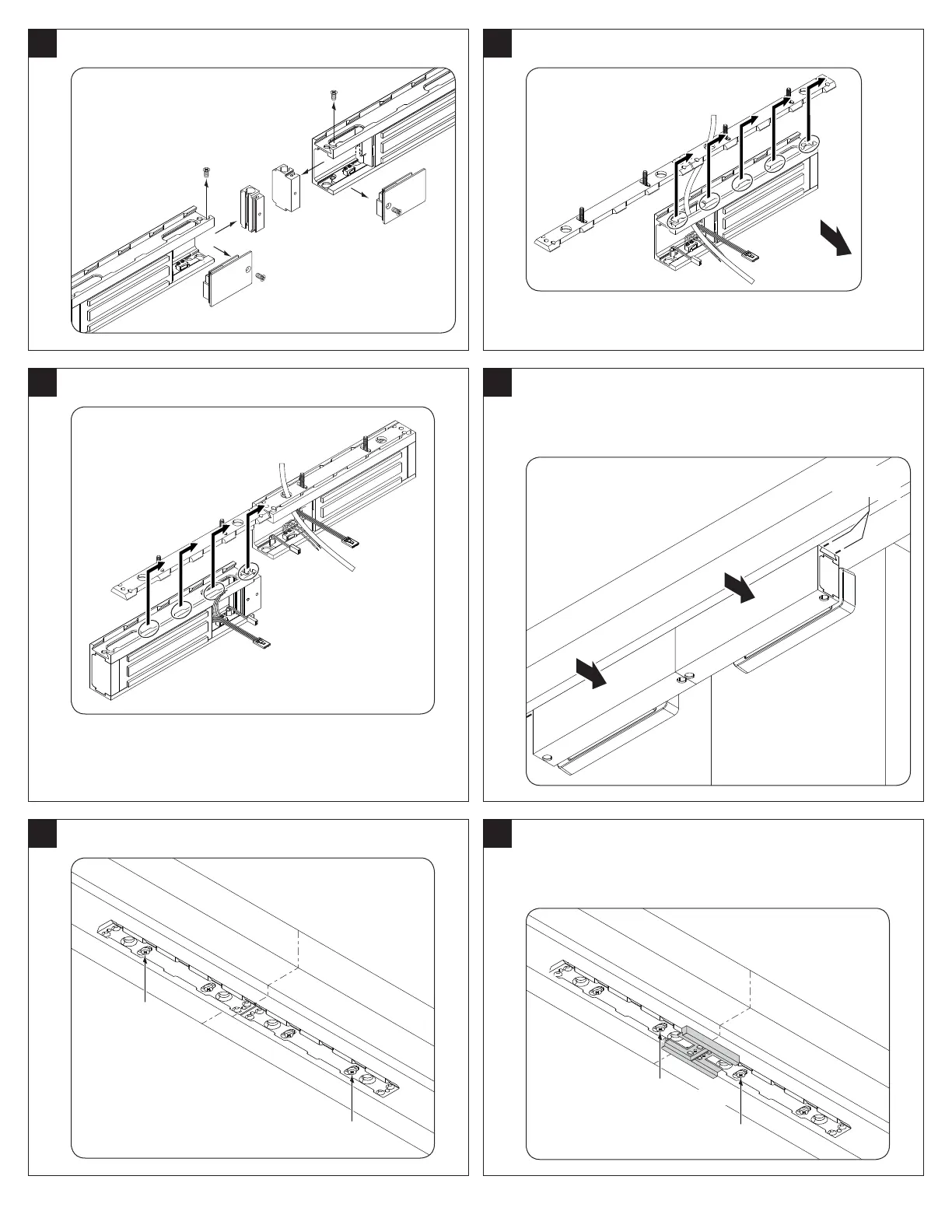

5b
Remove Wiring Covers and End Blocks
5c
Slide One Magnet onto Bracket
OUTSIDE
5d
Slide Second Magnet onto Bracket
5e
Align Magnets to Armatures
• Close doors.
• Press magnets to fully engage with armatures.
• Mark brackets on ends.
Mark here
(both sides)
Press magnets
to armatures
INSIDE
5f
Remove Magnet and Snug Two (2) Outer Screws
OUTSIDE
Snug these two screws
5g
Align Center of Brackets Using Alignment Tool
• Loosen two (2) innermost screws.
• Place alignment tool over brackets.
• Tighten all four (4) screws.
OUTSIDE
Loosen these
two screws
