NOTE
Ferromagnetic material changes the switching positions of the
sensor. For example: Adapter plate made of ordinary steel.
At ferromagnetic adapter plates:
l
First mount the product on the adapter plate.
l
Then set the position of the magnetic switch.
NOTE
l
Do not use the sensor as a safety component.
l
Do not pull on the cable of the sensor.
l
Secure the cable and connection plug so that they are not
taught and cannot move during operation.
l
Do not exceed the permitted bending radius of the cable.
l
Do not allow the sensor to come into contact with hard
objects and chemicals (e.g., nitric acid, chromic acid and
sulfuric acid).
Assembly and
adjustment of the
magnetic switches

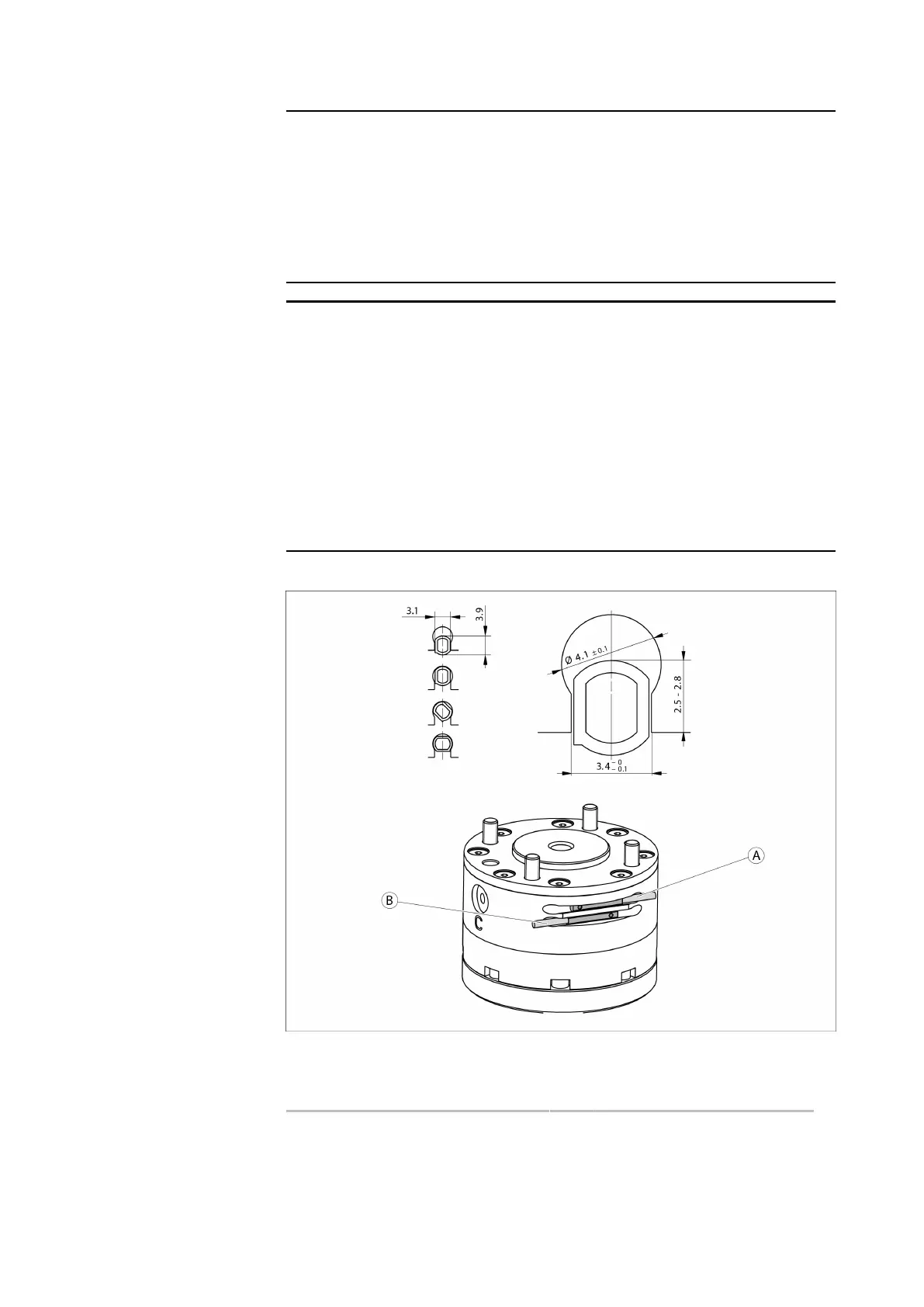

Assembly steps for mounting the magnetic switches
A Magnetic switch 2
"unlocked state"
B Magnetic switch 1 "locked
state"
