Assembly
06.00 | DRG | Assembly and operation manual | en | 389041 21

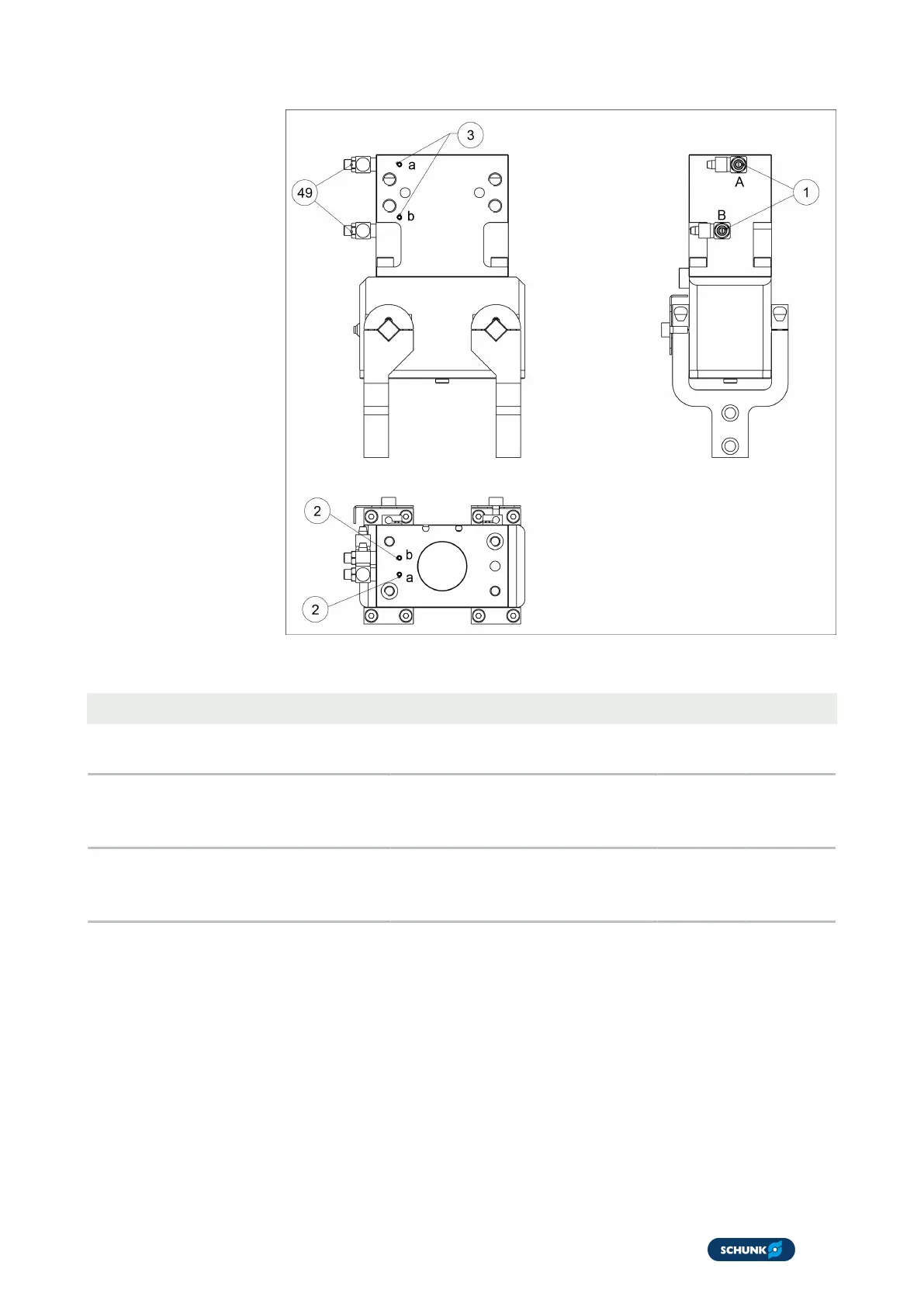

Air connections
Tab.: Thread diameter of the air connections
Item Connection DRG 44 DRG 54 DRG 64 DRG 80 DRG 100
1 Hose connection
(A = OPEN, B = CLOSED)
2 x M5 2 x M5 2 x M5 2 x M5 2 x G⅛"
2 Hose-free direct connection
at the base
(a = OPEN, b = CLOSED)
2 x M3 2 x M3 2 x M3 2 x M3 -
3 Hose-free direct connection
at the side
(a = OPEN, b = CLOSED)
2 x M3 2 x M3 2 x M3 2 x M3 -
l
Open only the air connections that are needed.
l
Close unused main air connections using the screw plugs from
the enclosed pack.
l
For a hose-free direction connection, use the O-rings from the
enclosed pack.
