36 06.00 | DRG | Assembly and operation manual | en | 389041
4. Check the installation position of the cylinder piston to the
cover housing / housing.
5. Put the assembly device (2) over the cylinder piston, at this
plug the cylinder pin (7) into the assembling hole of the
cylinder piston (5).
6. Press the assembly device onto the cover housing / housing
and secure it with suitable screws (4).
7. Tighten the screw (3).
8. Unscrew the screws (4) and remove the assembly device (2).
9. Check the installation position between the cylinder pistons
and cover housing / housing.
7.5.2 Assembly device

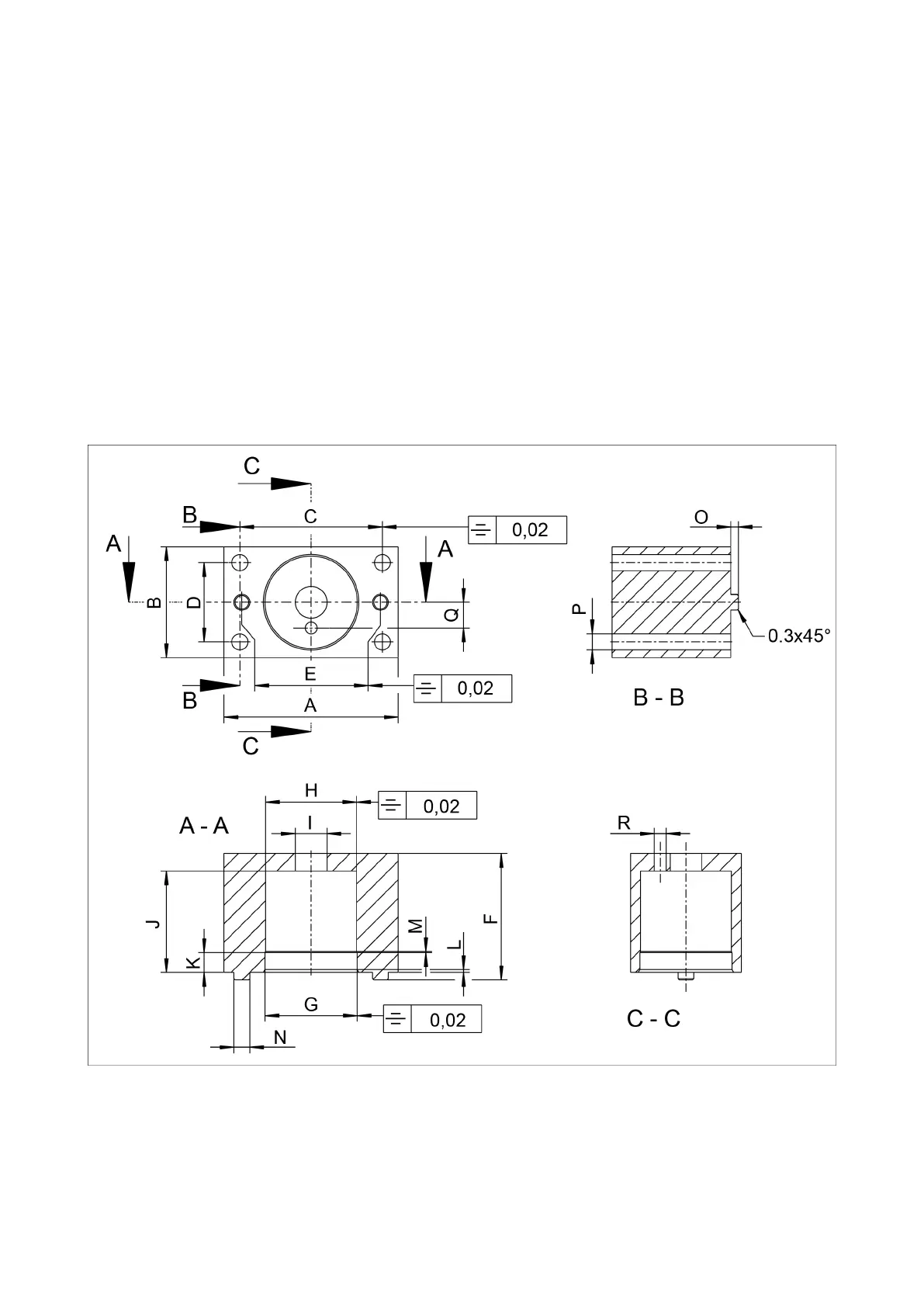

Assembly devices for sizes DRG 44-80
