7.5.1 Assembling with assembly device
Use a cylinder piston assembly device for mounting the sizes DRG
44 to 100.

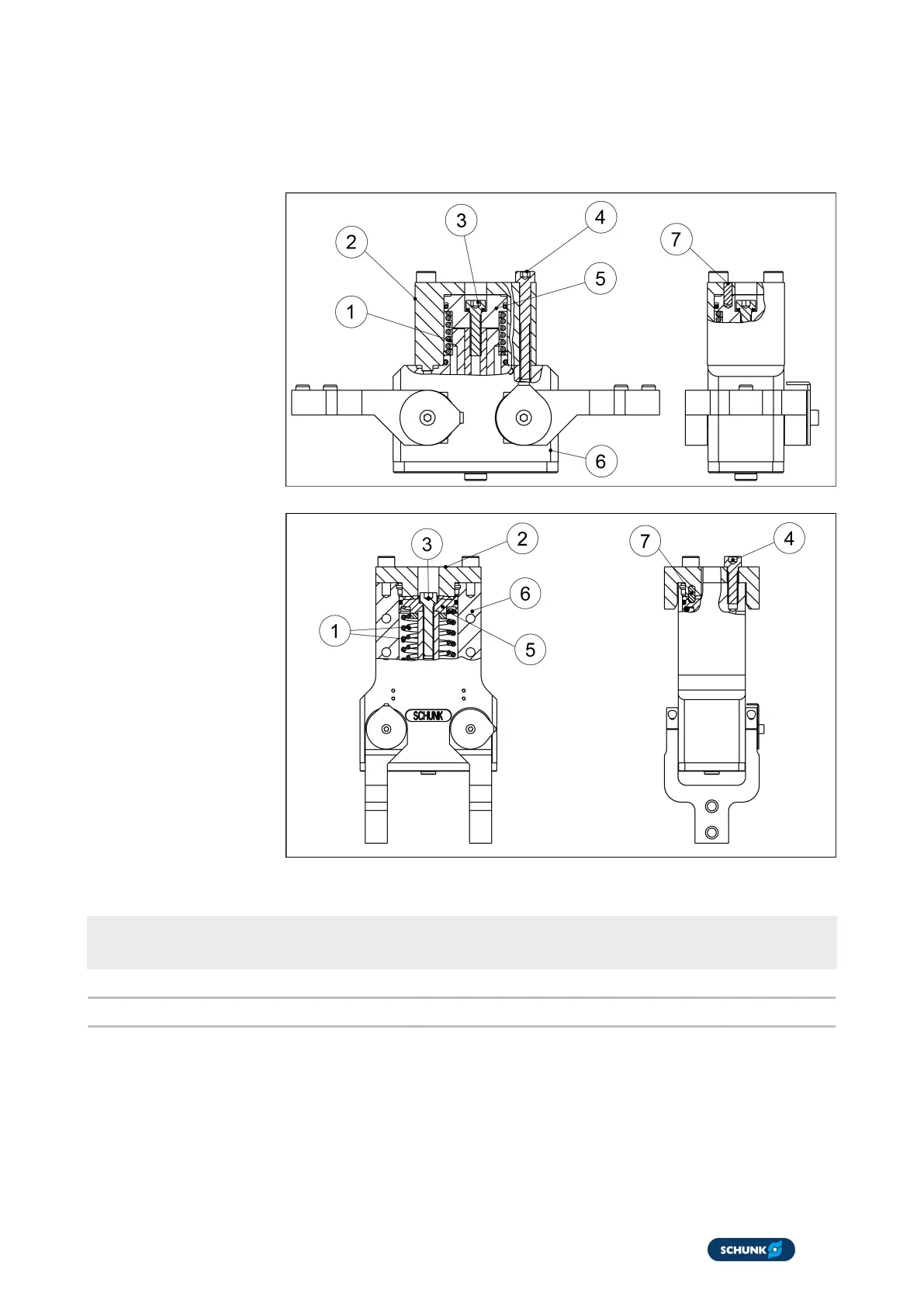

Assembly device DRG 44-80
Assembly device DRG 100
Tab.:
Type DRG
44-90-AS
DRG
54-90-AS
DRG
64-90-AS
DRG
80-90-AS
DRG
100-90-AS
Screw (4) M4 x 35 M4 x 40 M5 x 45 M6 x 55 M10 x 35
Cylindrical pin (7) Ø3m6x8 Ø3m6x8 Ø4m6x8 Ø4m6x10 Ø6m6x16
1. Insert the cylinder pin (7) into the assembly device (2).
2. Insert the springs (1) onto the cover housing (6) (DRG44-80) or
into the housing (6) (DRG100).
3. Place the cylinder piston (6) with screws (3) onto the springs.
