38 06.00 | DRG | Assembly and operation manual | en | 389041
7.6 Drawings

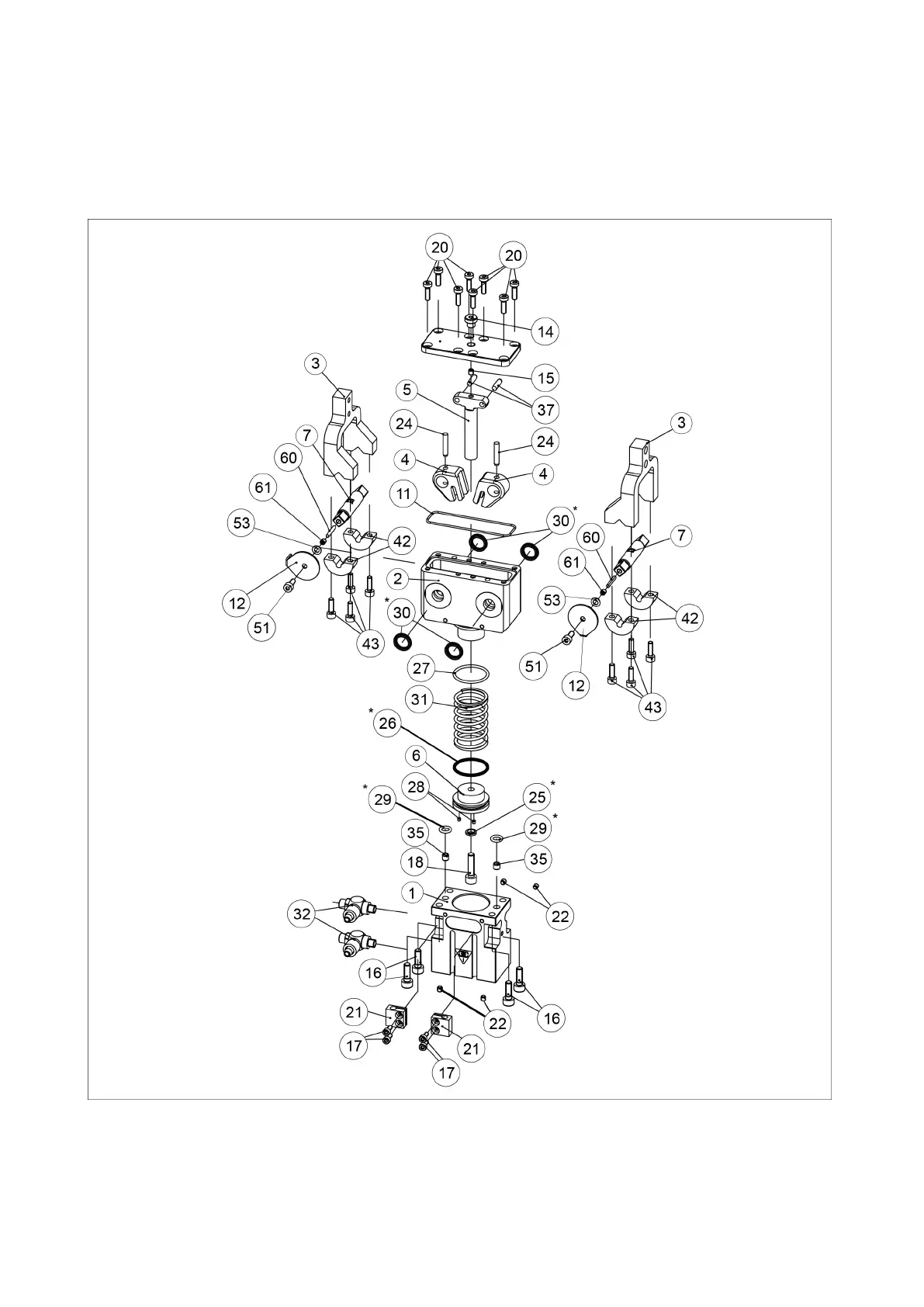

The following figures are example images.
They serve for illustration and assignment of the spare parts.
Variations are possible depending on size and variant.
Assembly of DRG 44 – 80
* Wearing part, replace during maintenance.
Included in the seal kit. Seal kit can only be ordered completely.
