SCHUNK DRG 44 User Manual

Maintenance
06.00 | DRG | Assembly and operation manual | en | 389041 37
Type DRG 44-90-AS DRG 54-90-AS DRG 64-90-AS DRG 80-90-AS
A 44 54 64 80
B 28 35 40 50
C±0.1 36 46 54 69
D±0.1 20 27 30 39
E±0.1 35 44 52 65
F 30 32 36 45
ØG
H7
23.3 30.3 35.3 44.8
ØH
H7
23 30 35 44.5
I 8 8 10 12
J±0.1 25.6 26.5 31.1 38.1
K 5 10 15 15
L 1x 30°
M 30°
N
h7
4 5 6 8
O±0.1 1.9 2.2 2.8 2.8
P 4 4 5 6
Q±0.2 6.5 8 10 12
ØR
H7
3 3 4 4

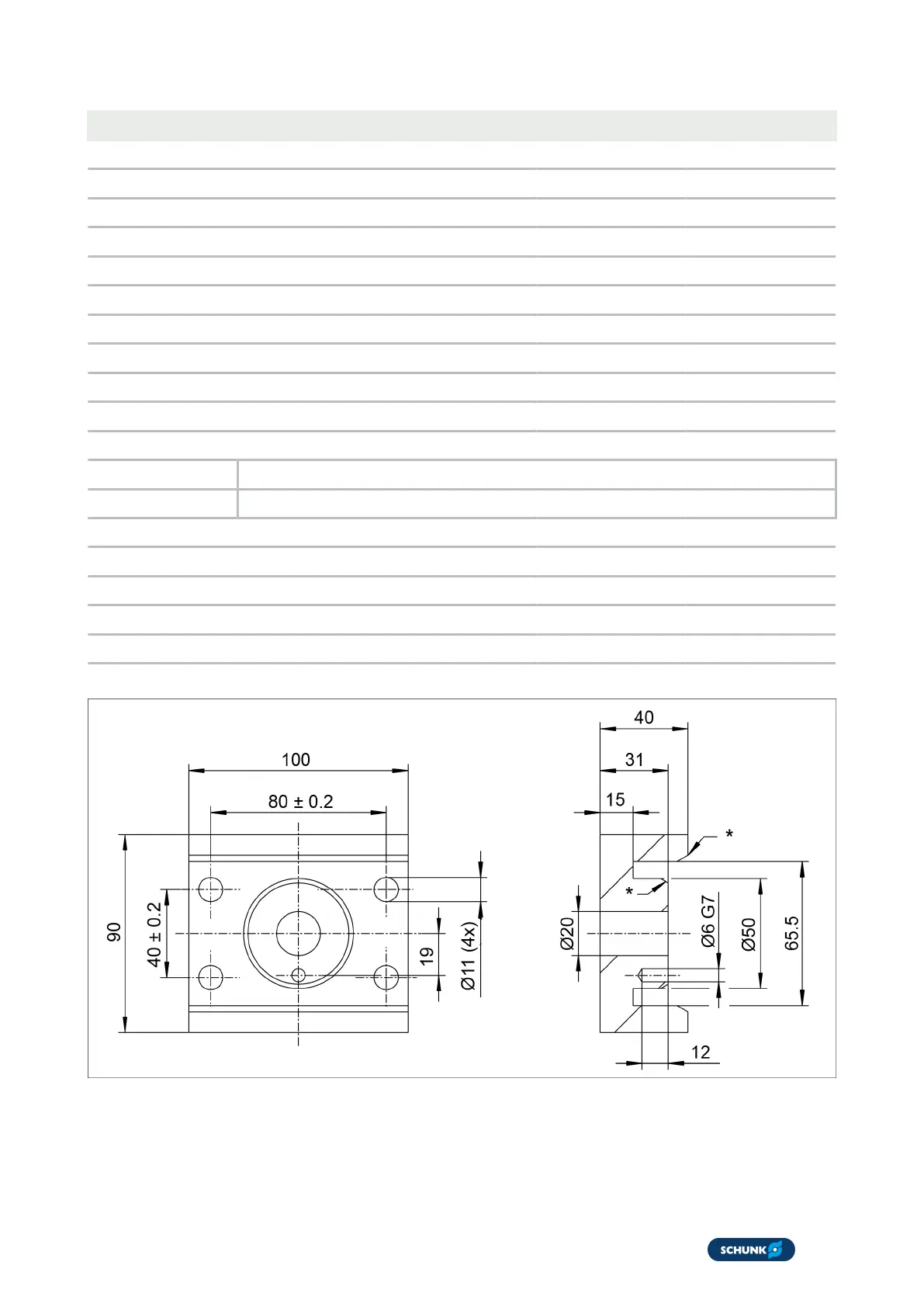

Assembly devices for sizes DRG 100
* Note the chamfer
