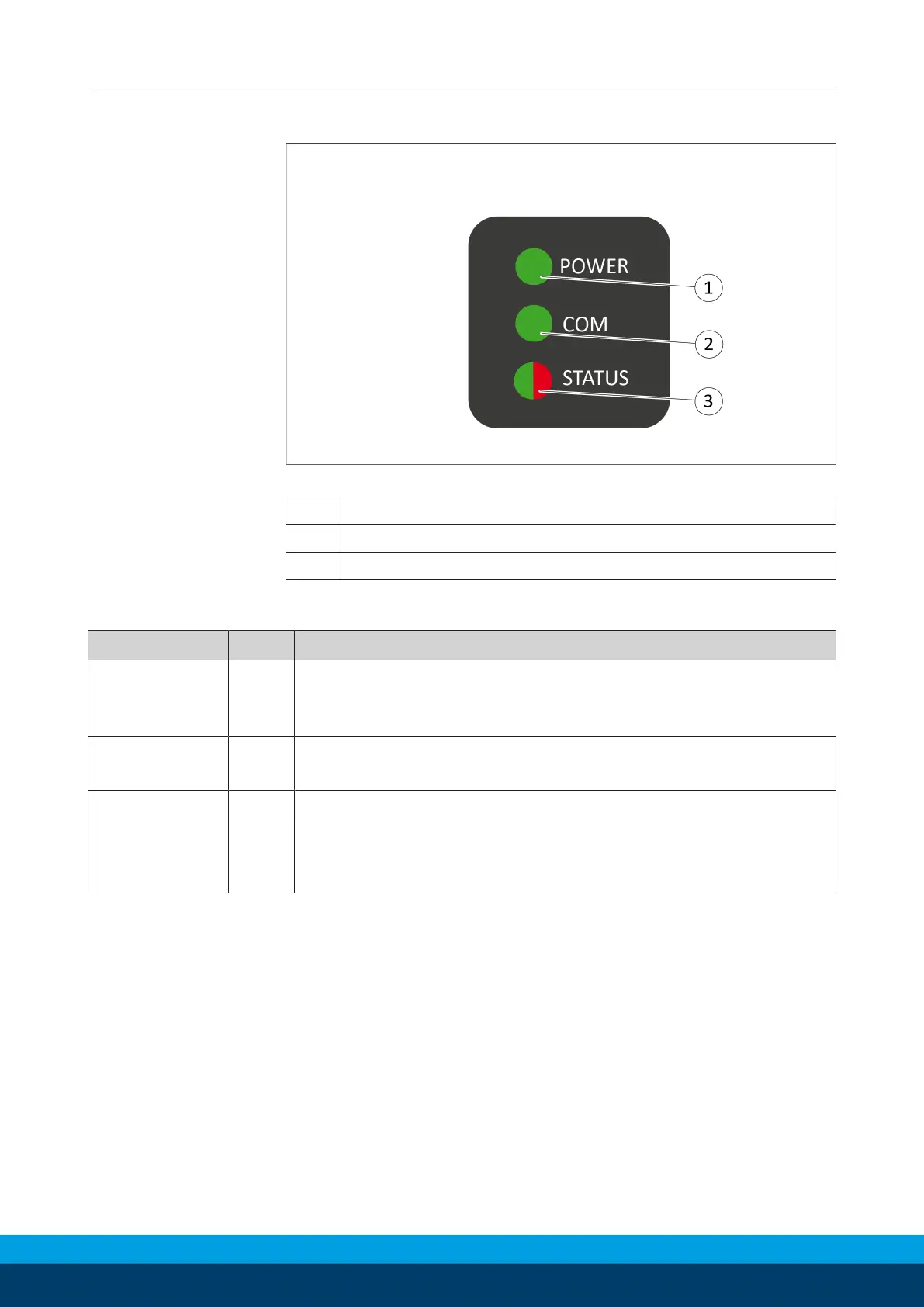

4.3.4 "IO-Link" variant
Function label
1 LED POWER
2 LED COM
3 LED STATUS
4.3.5 LED "POWER", "COM" and "STATUS"
Designation Color Function
POWER Green • Lights up if ready for operation
• Does not light up if logic or actuator voltage is reversed or not
in the valid range.
COM Green • Does not light up if IO-Link communication is not active
• Flashes if IO-Link communication is active
STATUS Green
/ Red
• Does not light up if electronics are not active or defective
• Lights up green if ready for operation
• Lights up red in case of a fault. Error message is
communicated via IO-Link
