Assembly
11.00 | EGP | Assembly and Operating Manual | en | 389476
35

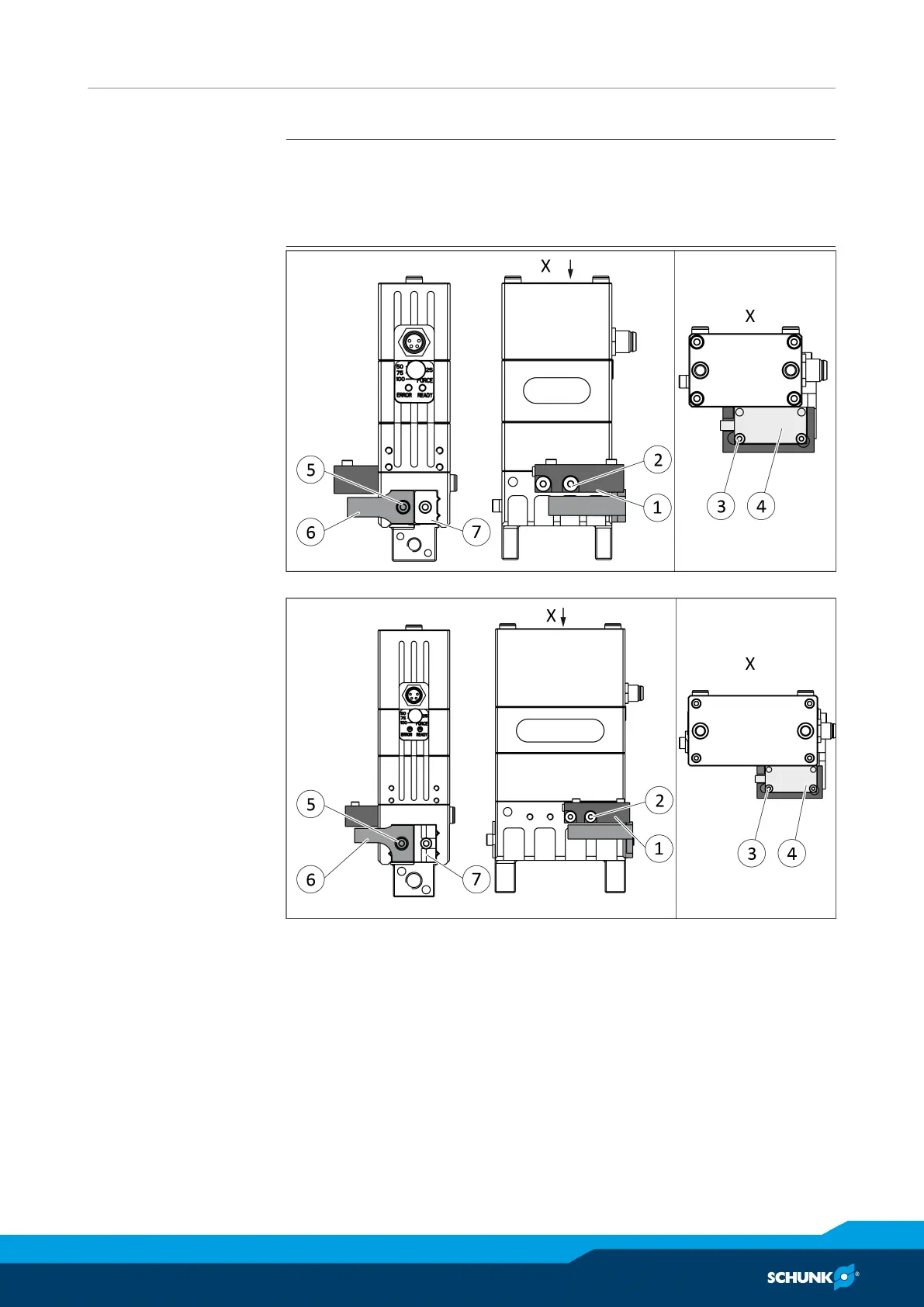

5.3.3 Mount Flexible Position Sensor (FPS)
NOTE
The sensor cannot be used for sizes 25 and 25-S.
The sensor is mounted to the product using a holder. This holder
is available from SCHUNK.
Size 40 and 50
Size 64
Ø Secure holder (1) with screws (2).
Ø Secure sensor (4) to holder (1) with screws (3).
Tightening torque: 1Ncm
Ø Up to 12/2015: Secure control cam (6) onto the cover (7) of the
base jaw with screw (5).
Ø As of 01/2016: Secure control cam (6) directly to the base jaw
with screw (5).
✓ Ensure that the magnets in the control cam (6) are facing
towards the sensor surface.
Ø Connect the torque sensor system controller and adjust the
sensor (4), see Sensor Assembly and Operating Manual.
