5.3.2.2 Set the inductive proximity switch (IN)

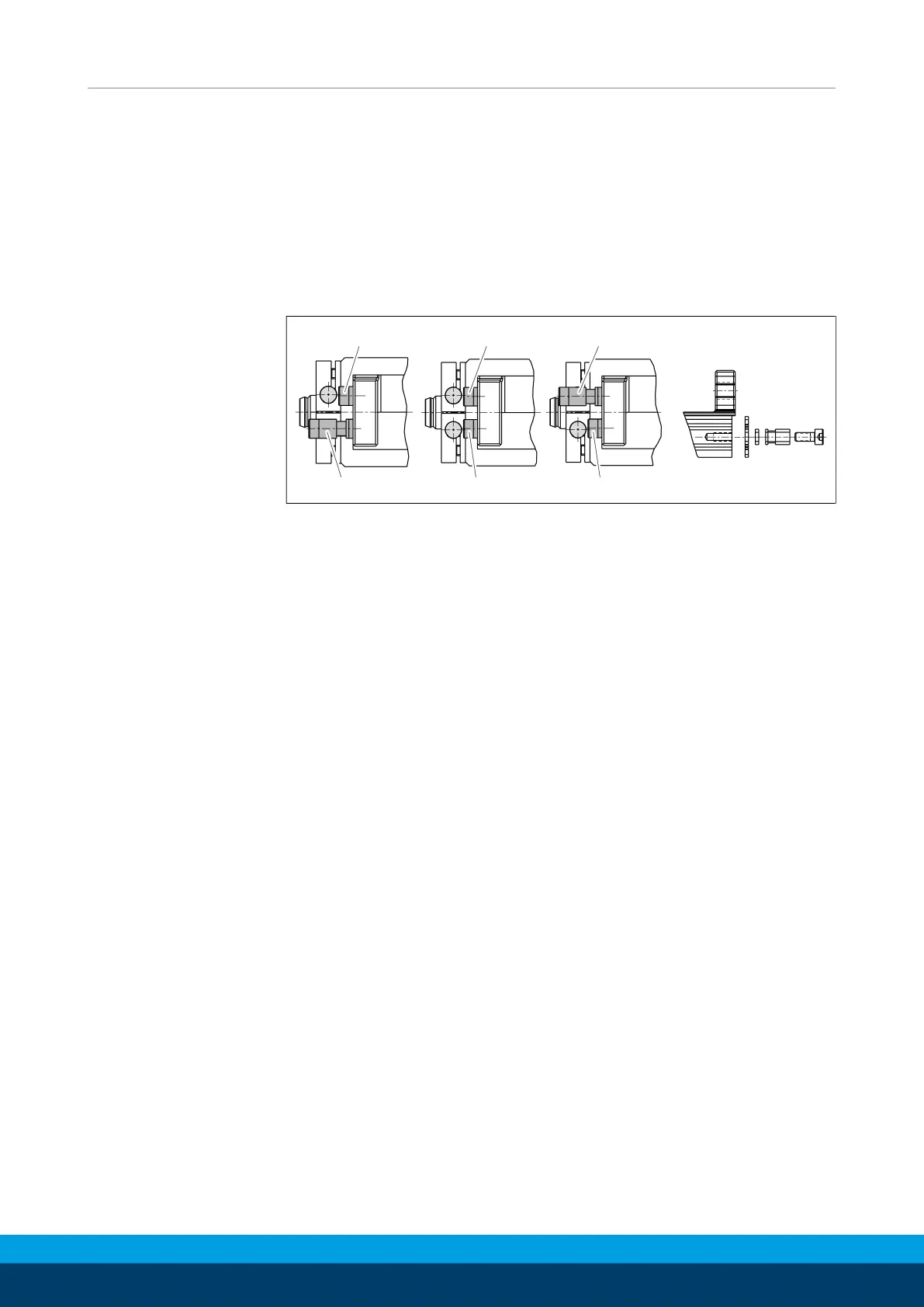

The sensor is dampened by the screw heads.
If the screws are used without spacer sleeves, the positions
"Gripper opened" and "Gripper closed" can be monitored.
If the spacer sleeve is used, the distance between the screw head
and the gripper finger is greater. This enables e.g. the position
"Gripper closed" to be varied or the position "Part gripped" to be
monitored.
Gripper open
Gripper closedPart gripped
Gripper open
Gripper closed
Part gripped
Adjusting the sensor
