Assembly
11.00 | EGP | Assembly and Operating Manual | en | 389476
33

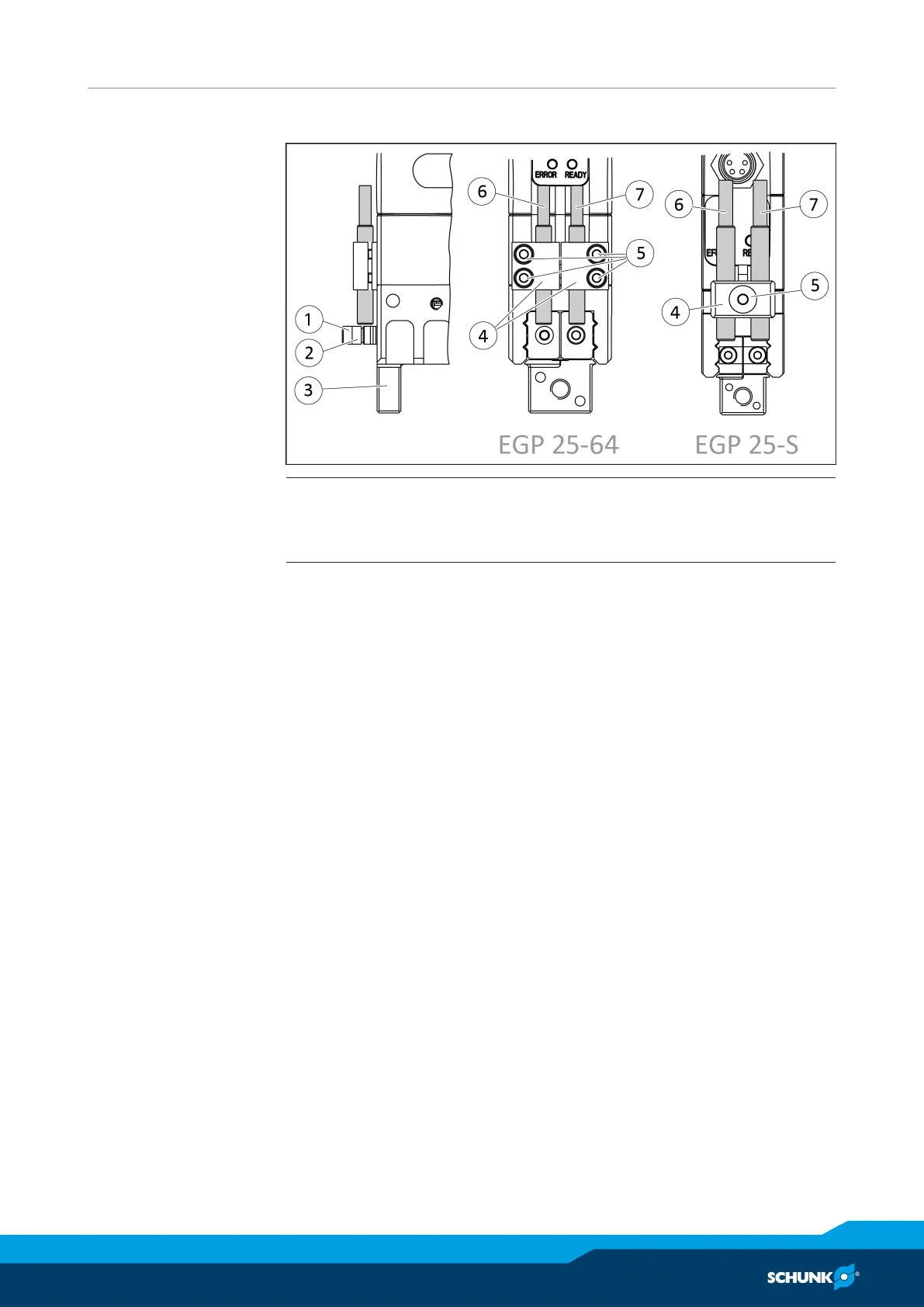

5.3.2.1 Mount inductive proximity switches
NOTE
The positions "Gripper opened" and "Gripper closed" are monitored
without an additional spacer sleeve (2) via the screws (1).
Ø To monitor the position "Part gripped": Screw the spacer sleeve
(2) and scew (1) from the accessory pack to the gripper finger (3).
Tightening torque: 12.5 Ncm
Ø Screw on sensor holder (4).
✓ Tighten screws (5) only slightly.
Ø Move product to the position "Gripper opened" .
Ø Slide sensor (6) into the sensor holder (4) and adjust the 0.2mm
distance to the screw head.
Ø Move product to the position "Gripper closed".
Ø Slide sensor (7) into the sensor holder (4) and adjust the 0.2mm
distance to the screw head.
Ø Tighten the screw (5) on the sensor holder (4).
Tightening torque: 10 Ncm
Ø Connect both sensors (6)/(7).
Ø Bring the product in position and test the function.
