Assembly
11.00 | EGP | Assembly and Operating Manual | en | 389476
29
Screw-in depth and tightening torque
Item Mounting
EGP
25 40 50 64
Side A
1 Mounting screw M3 M4 M5 M5
Max. depth of
engagement [mm]
7.4 8.9 10.9 10.9
Minimum screw-in depth
[mm]
6.9 8.4 10.4 10.4
Tightening torque [Nm] 1.2 3.1 6.1 6.1
2 Centering sleeve Ø 5 Ø 6 Ø 8 Ø 8
Side B
4 Mounting screw M3 M4 M5 M5
Max. depth of
engagement [mm]
6.9 8.9 10.4 10.4
Minimum screw-in depth
[mm]
6.4 8.4 9.9 9.9
Tightening torque [Nm] 1.2 3.1 6.1 6.1
3 Centering sleeve Ø 5 Ø 6 Ø 8 Ø 8
Side C
5 Mounting screw M2.5 M3 M4 M4
Connections at the
base jaws

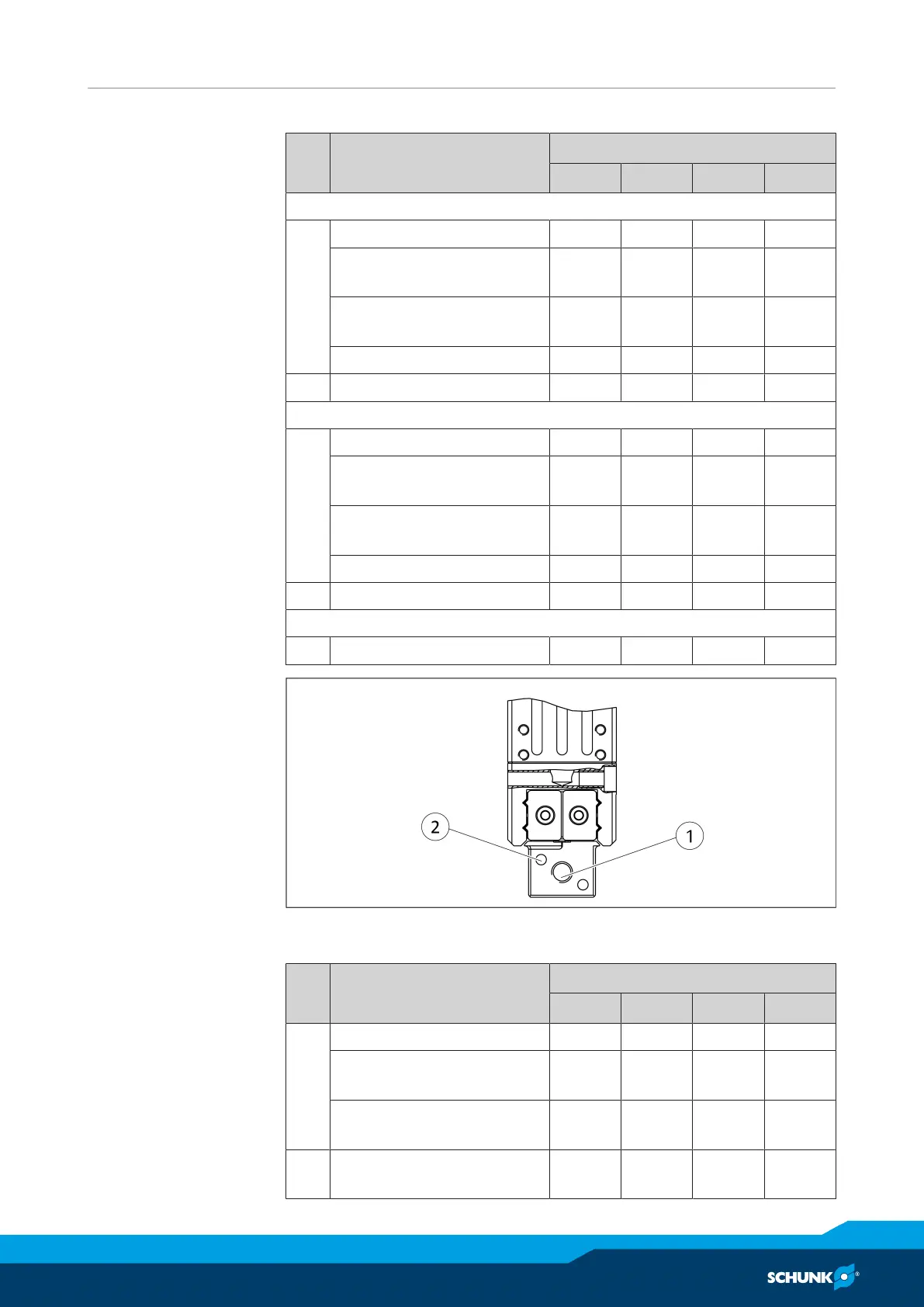

Mounting of the gripper finger
Screw-in depth and tightening torque
Item Mounting
EGP
25 40 50 64
1 Thread in base jaws M4 M5 M6 M8
Max. depth of engagement
from locating surface [mm]
4 6 8 10
Max. tightening torque of
the mounting screws [Nm]
3.1 6.1 10 25
2 Bore holes for cylindrical pin
[mm]
Ø1.5 Ø2.5 Ø 3 Ø 4
