Assembly
11.00 | EGP | Assembly and Operating Manual | en | 389476
31
NOTE
Note on EMC conformity (in accordance with EN 61000-6-4:2007
+ A1:2011):
• The product may only be used in DC distribution networks with
an expansion of < 30 m.

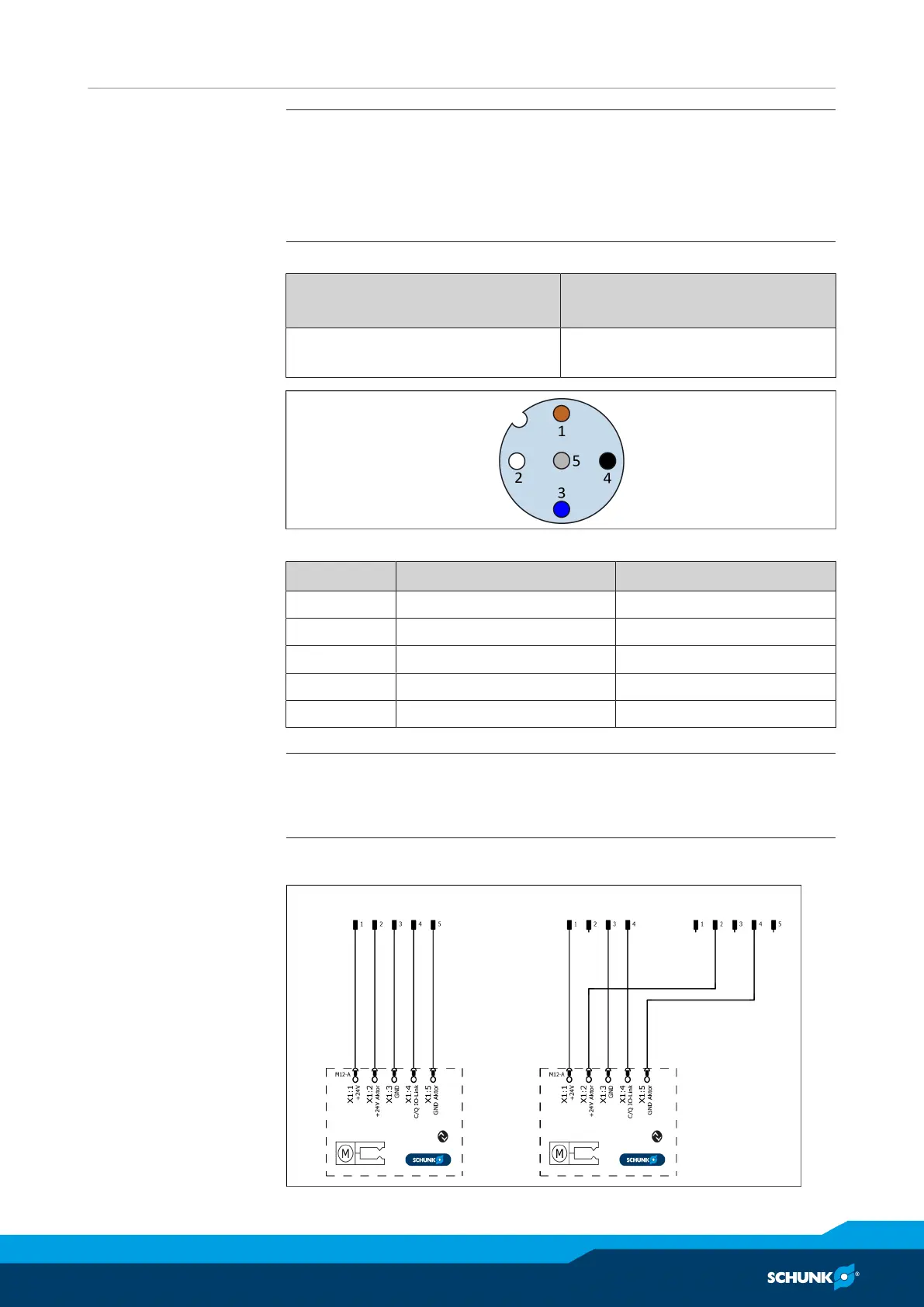

Components of the electrical connection
Plug connector
gripper
Plug connector
provided by the customer
Connector 5-pin, M12, A-coded Connection cable 5-pin, M12
socket, A-coded
Voltage supply and
control
IO-Link cable assignment, 5-pin M12 port class B
Pin Wire strand Signal
1 Brown + 24V
2 White + 24 V (actuator)
3 Blue GND
4 Black C/Q IO-Link
5 Grey GND (actuator)
NOTE
For information on actuation, see Software guide "SCHUNK
gripper with IO-Link".
5.2.3.1 IO-Link connection diagram
IO-Link master
Class B
24V+ power supply
IO-Link master
Class A
Y distributor
