Assembly and settings
01.00 | FPS-F5 | Assembly and Operating Manual | en | 15959911 13

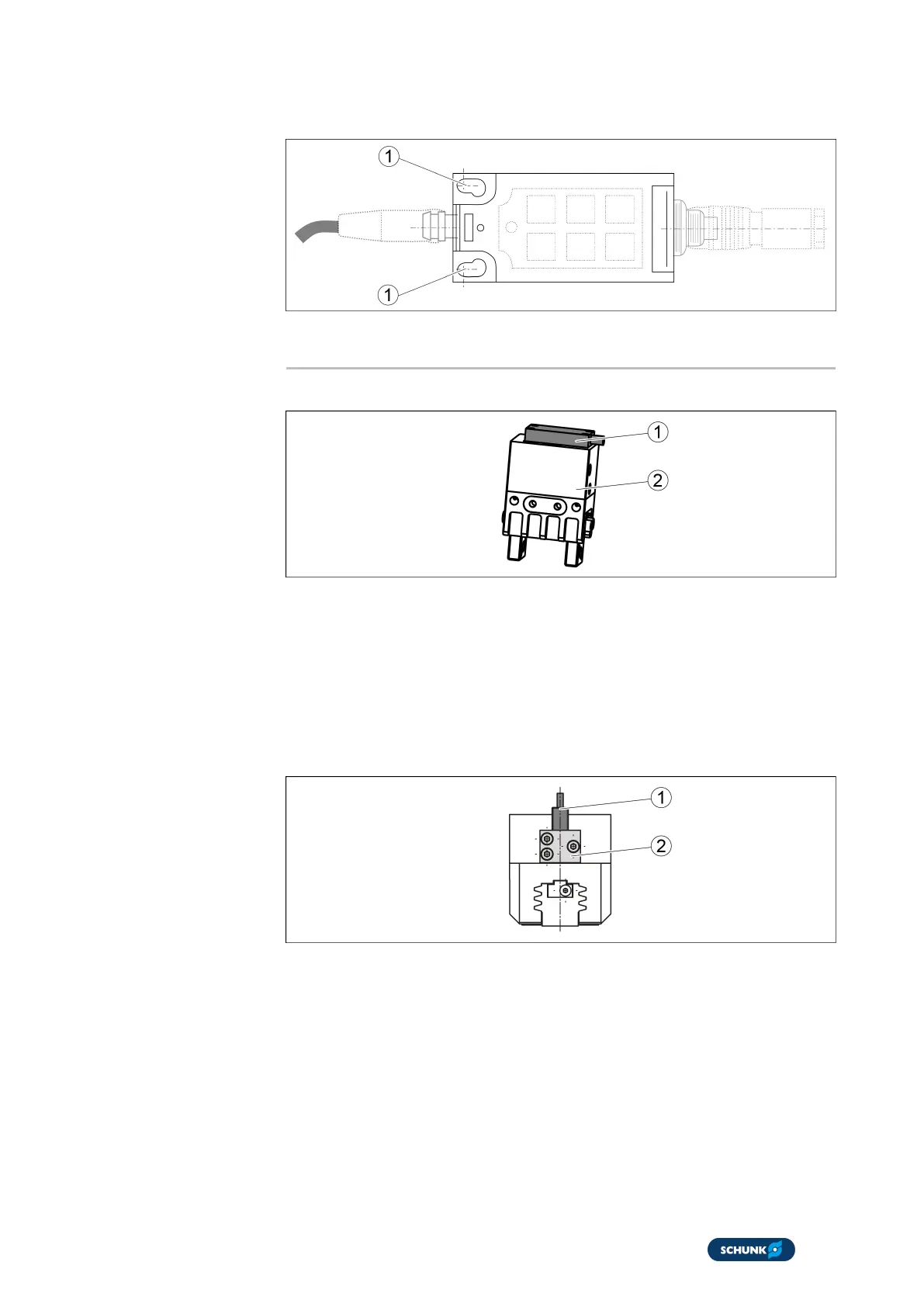

5.1.1 Mechanical connection FPS-F5
Mechanical connection
1 Screw-on points, M4 screws
5.1.2 Mechanical connection FPS-S 13
Installing the sensor
1. Position the active sensor area (circular elevation) in the
recess provided for it in the product (2).
2. Screw the sensor (1) onto the product (2).
3. Connect the sensor (1) to the electronic processor and fasten
the cable.
5.1.3 Mechanical connection FPS-S M8
Installing the sensor
1. Push the sensor (1) through the clamping holder (2) until it
stops in the housing.
2. Tighten the screws on the clamp holder (2).
3. Connect the sensor (1) to the evaluation electronics and fasten
the cable.
