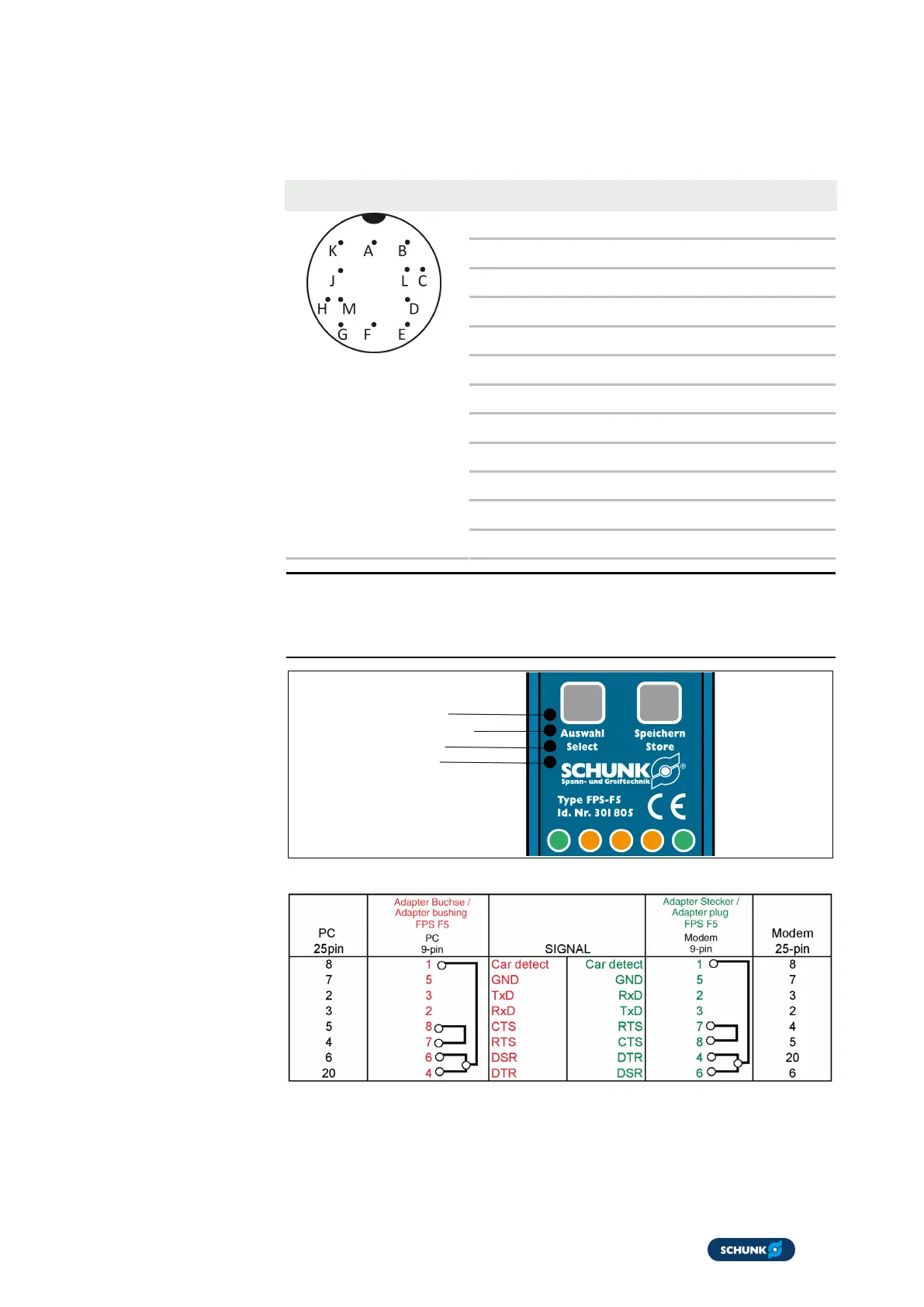

5.2 Electrical connection
5.2.1 Electrical connection FPS-F5
12-pin connector
Pin Function
View of the FPS
connector
A +24 V
B TX
C Open (digital output)
D C (digital output)
E B (digital output)
F A (digital output)
G Closed (digital output)
H RX
J GND
K n.c.
L select (digital input)
M store (digital input)
NOTE
The connections with the designations Open, A, B, C and Closed
correspond to the five switching outputs.
RS 232
GND
Coding pin
RxD
TxD
Interface RS 232
Adapter RS 232
Cable assignment adapter to interface RS 232
