SCHUNK FPS Series - 5.2.2 Electrical connection FPS-S 13

Assembly and settings
16 01.00 | FPS-F5 | Assembly and Operating Manual | en | 15959911
9-pin
SUB-D connector
Connector (PC)
Connector (FPS)
(handshakes)

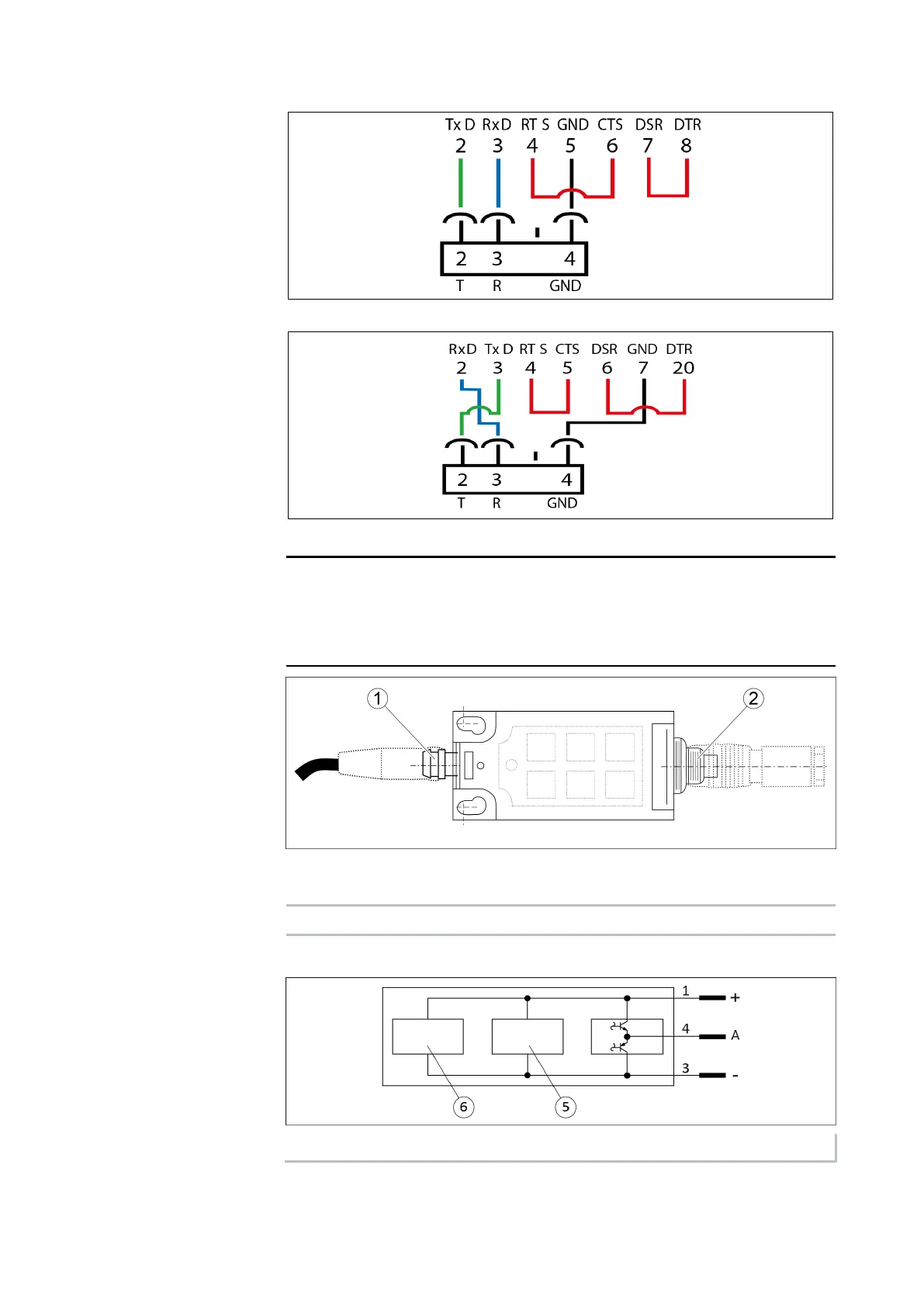

Assignment of 9-pin SUB-D connector
25-pin
SUB-D connector
Connector (PC)
Connector (FPS)
(handshakes)
Assignment of 25-pin SUB-D connector
NOTE
For connection to the modem, there is a 9-pin and 25-pin socket
instead of the connector. Pins 2 and 3 are reversed, otherwise
connection is the same as for the PC.
Electrical connection
1 Sensor connector, 3-pin connector
2 Output connector, 12-pin connector
5.2.2 Electrical connection FPS-S 13
Type of switching: Analog
