6.3.4 Operating status function
Operating status function
This function displays the current operating status. The following
values are displayed:
l
Diagram with switching outputs, input voltage and position
values
l
Temperature inside the electronic processor
l
Voltage supply of the electronic processor
If the temperature and voltage supply values exceed or fall below
the limit values once, the corresponding LED lights up red. Each
time the system is restarted, the LED remains red.

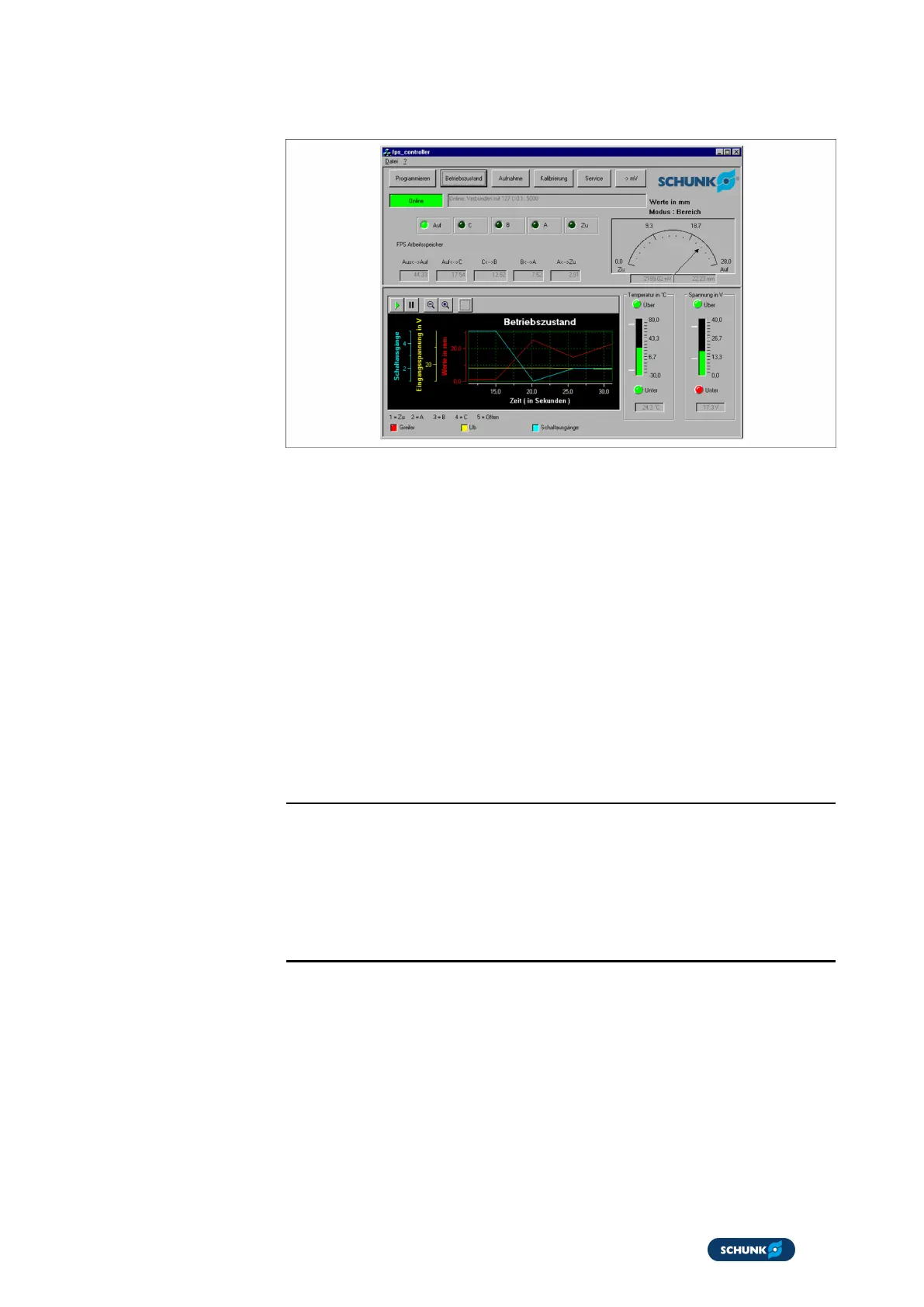

Switching outputs, input voltage and position values in the
diagram are displayed in relation to time. The diagram is
updated every second.
NOTE
Detailed information on switching outputs, input voltage and
position values can be called up in the Recording function. The
entire diagram can be zoomed by pressing the magnifying glass
buttons. Pressing the Window button allows you to zoom into
any area of the diagram.
