5.1.4 Mechanical connection MMS 22-A

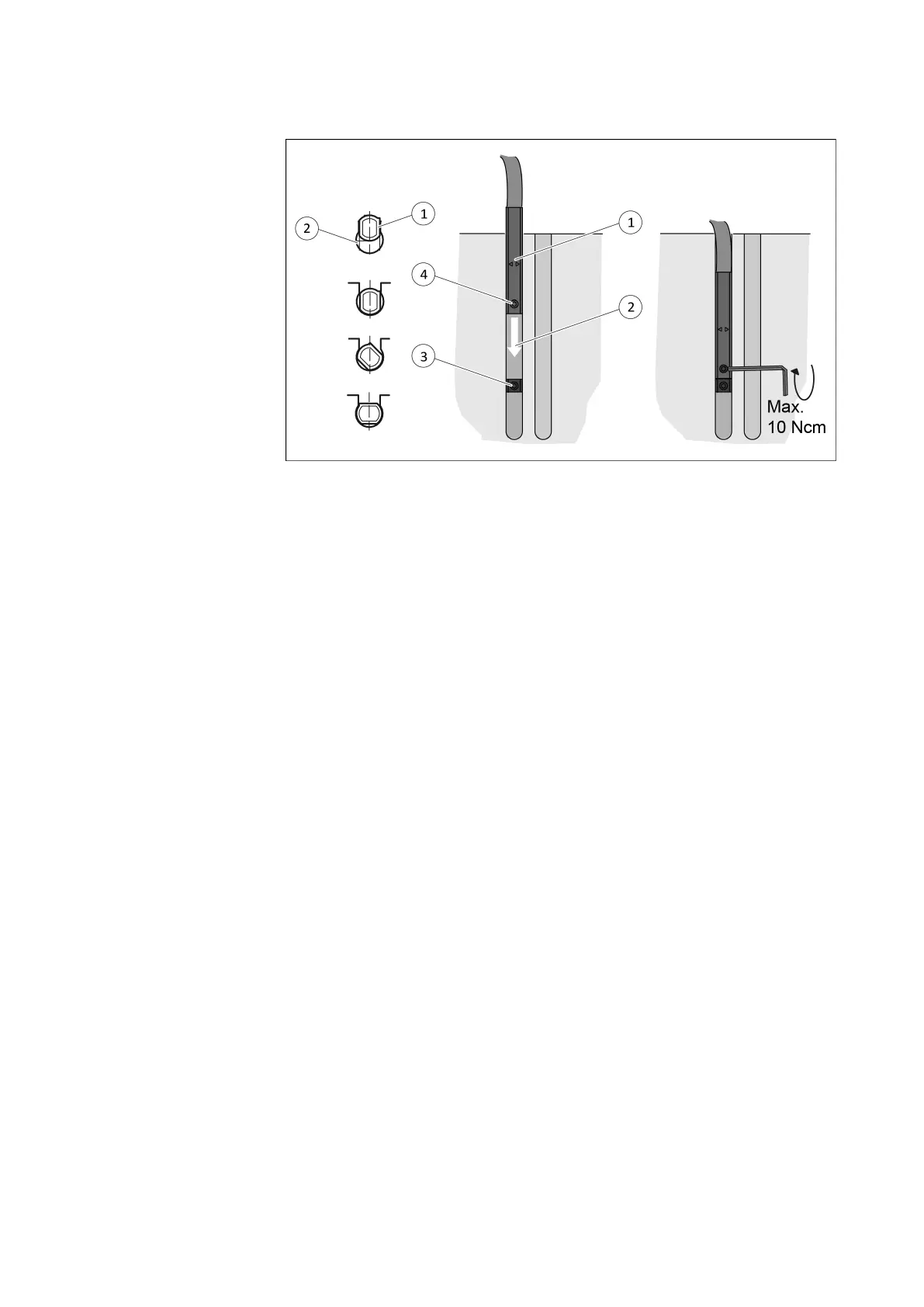

Mechanical connection
1. Turn the sensor (1) into the groove (2)
Or: Push the sensor (1) into the groove (2) until it reaches the
clamping stop.
2. Secure the sensor (1) using the set-screw.
ð Observe the maximum tightening torque of 10Ncm.
3. Connect the sensor (1) and fasten the cable.
