SCHUNK FPS Series - 5.2.3 Electrical connection FPS-S M8; 5.2.4 Electrical connection MMS 22 A

Assembly and settings
01.00 | FPS-F5 | Assembly and Operating Manual | en | 15959911 17
Sleeve M8
1 Supply voltage
3 GND
4 Output
Note about circuit symbol
5 Hall-effect sensor 6 Amplifier
l
Connect the sensor cable to the port of the evaluation
electronics and tighten the screw connection.
ð Do not exceed the permitted bending radius of the cable.

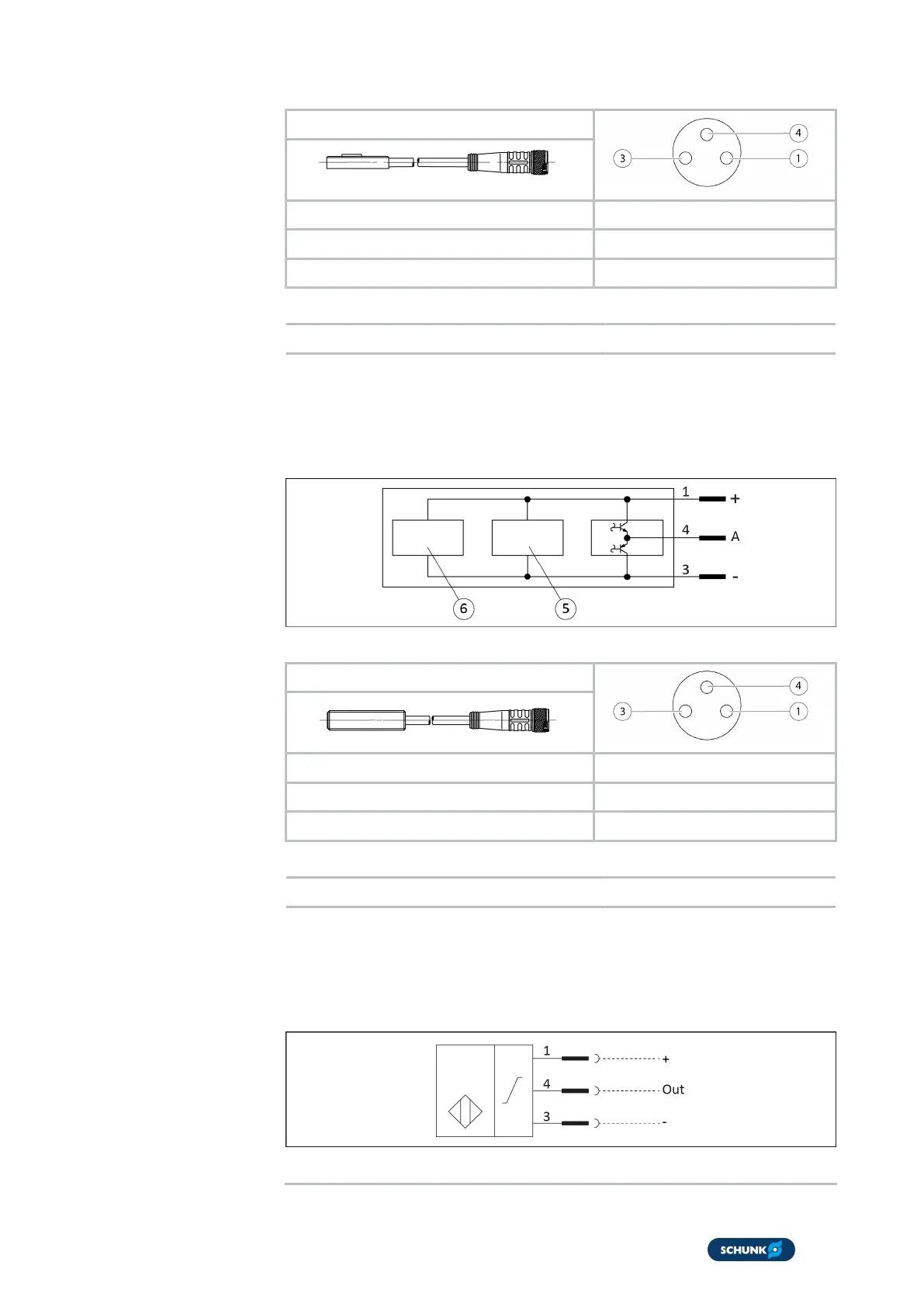

5.2.3 Electrical connection FPS-S M8
Type of switching: Analog
Sleeve M8
1 Supply voltage
3 GND
4 Output
Note about circuit symbol
5 Hall-effect sensor 6 Amplifier
l
Connect the sensor cable to the port of the evaluation
electronics and tighten the screw connection.
ð Do not exceed the permitted bending radius of the cable.
5.2.4 Electrical connection MMS 22A
Type of switching: Analog
