Commissioning
14.00 | GSM-P | Assembly and Operating Manual | en | 389104 39

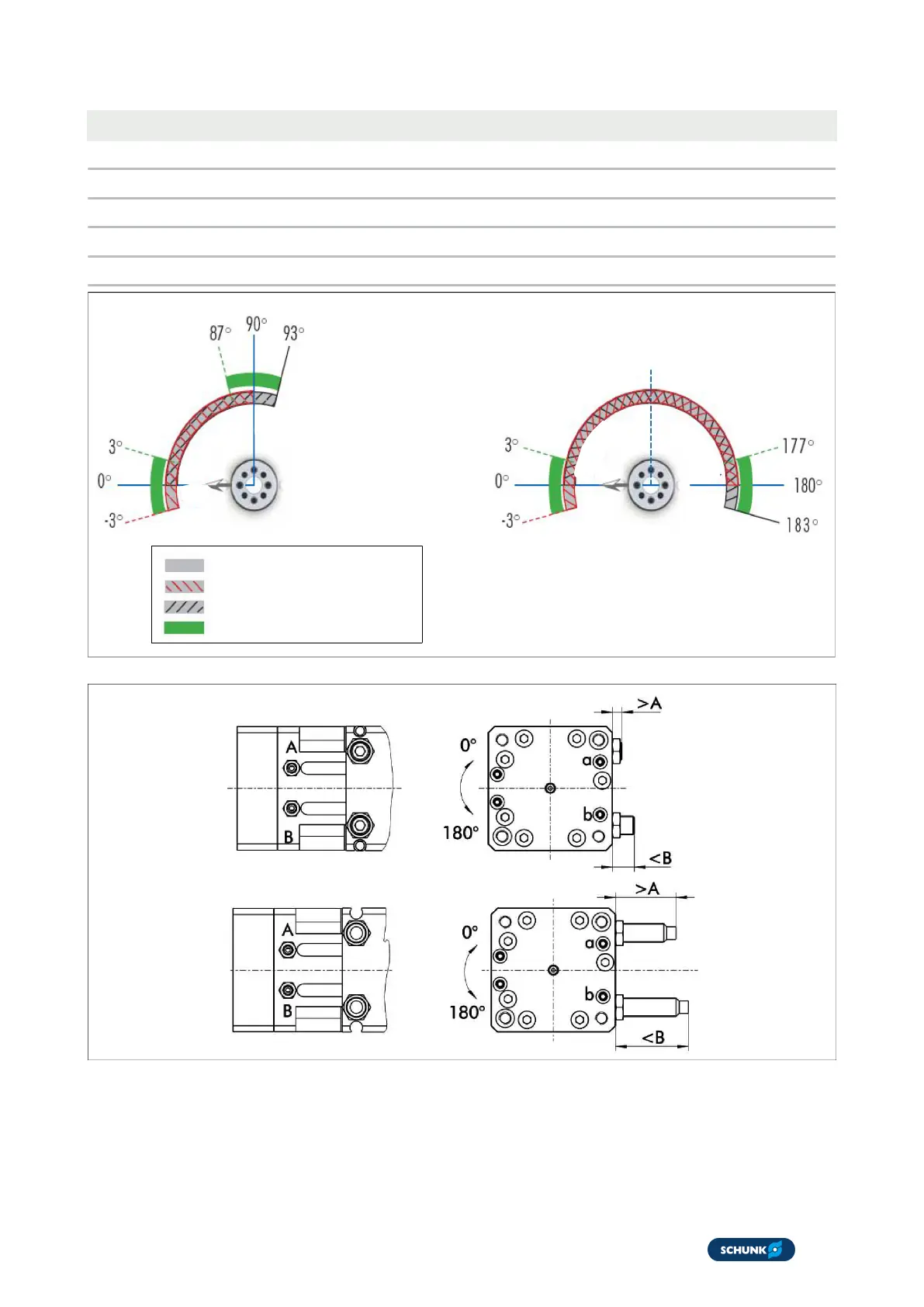

Basic size 40 Basic size 64
Angle limitation per ball [°] 19 13.5
Min. projection A [mm], E variants 3 4.5
Max. projection B [mm], E variants 7 9.5
Min. projection A [mm], S variants 19.5 28
Max. projection B [mm], S variants 23.5 33
Swivel range
Adjustment range of start angle
Adjustment range of end angle
Switching range of sensor
end angle
start angle
start angle
end angle
Swivel range
Adjustment range of start angle
Adjustment range of end angle
Switching range of sensor
Rotating angle setting and monitoring range with GSM-P
Total rotating angle range
