SCHUNK GSM-P - Assembly Drawing of the Gripping Modules

Maintenance
14.00 | GSM-P | Assembly and Operating Manual | en | 389104
59

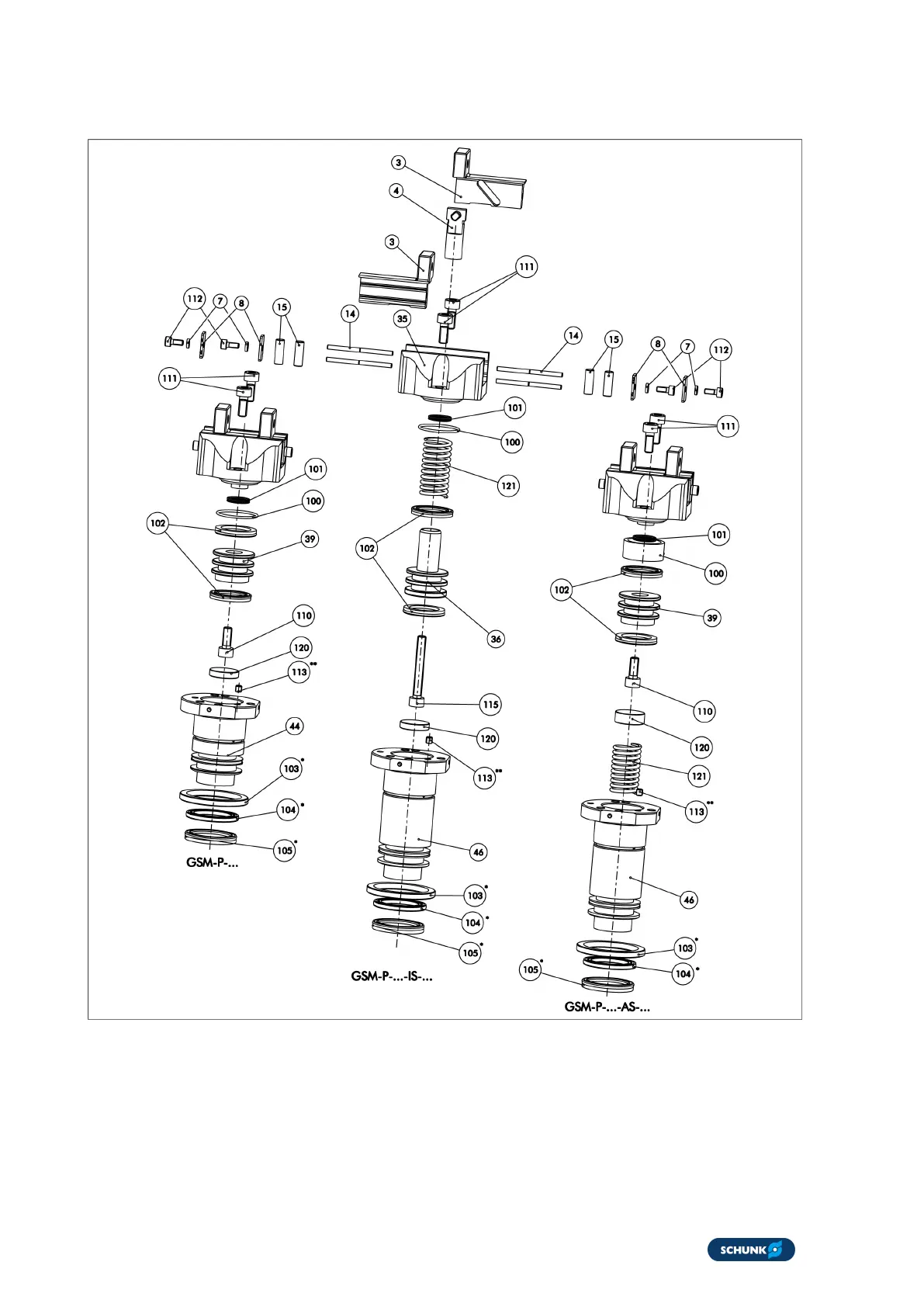

8.12.3 Assembly drawing of the gripping modules
Assembly drawing of the basic modules
* Included in the parts list for the DKM feed-through compact module
** Item 113 only available for the sizes P-40, P-50, and P-64
