5.3 Mounting the sensor
NOTE
Observe the assembly and operating manual of the sensor for
mounting and connecting.
The product is prepared for the use of sensors.
l
For the exact type designations of suitable sensors, please see
catalog datasheet and }5.3.1 [/27].
l
For technical data for the suitable sensors, see assembly and
operating manual and catalog datasheet.
– The assembly and operating manual and catalog
datasheet are included in the scope of delivery for the
sensors and are available at schunk.com.
l
Information on handling sensors is available at schunk.com or
from SCHUNK contact persons.
5.3.1 Overview of sensors
Designation GSM-P
32 40 50 64
Programmable magnetic switch
MMS-P 22
X X X X
Inductive proximity switch IN 40
X X X X
5.3.2 Sensor monitoring range
NOTE
The monitoring of swiveling and grasping movements with an
inductive proximity switch and magnetic switch can yield
reliable results only in the ranges of 0°±3° and 180°±3° or 0°
±3° and 90°±3°.

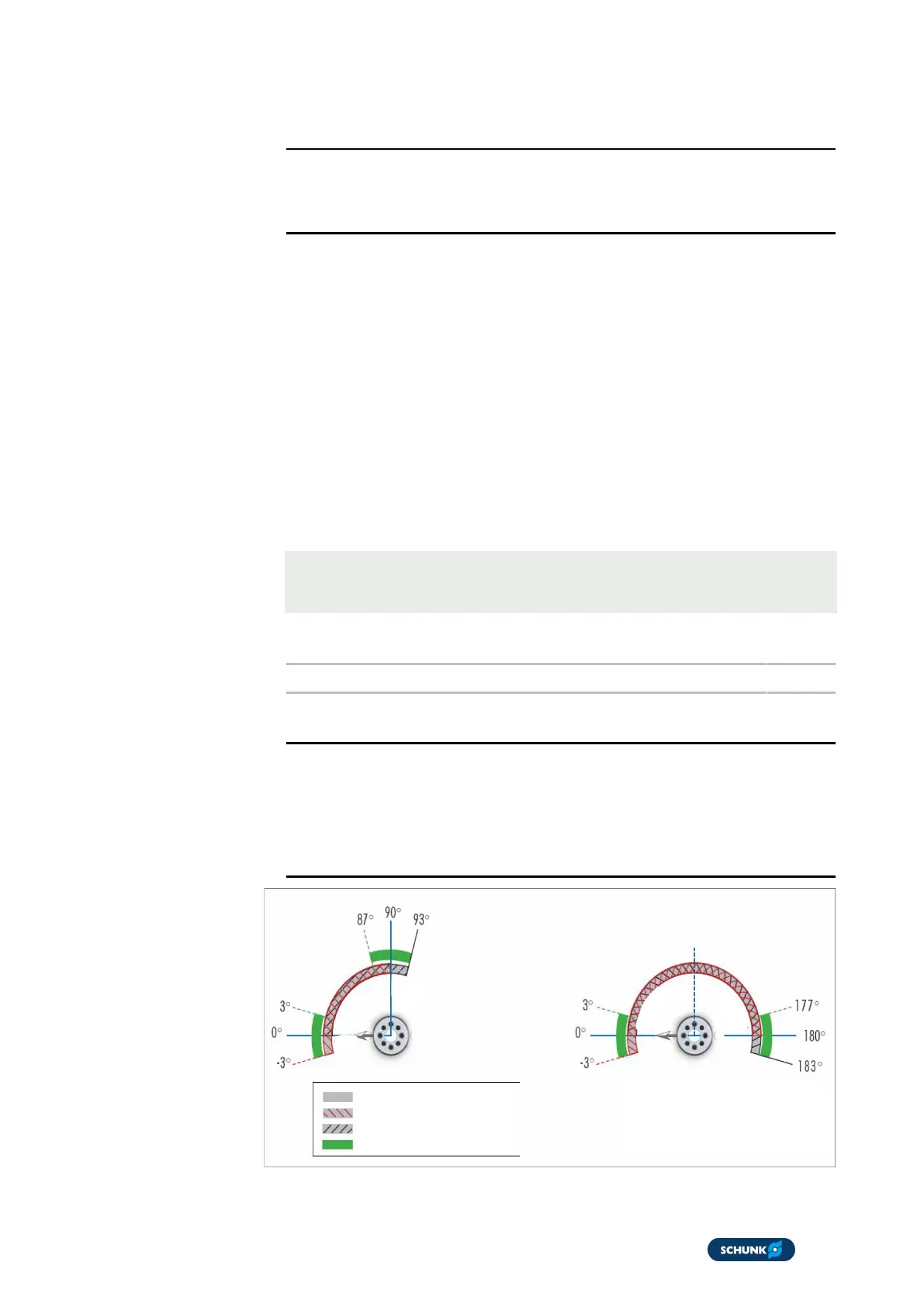

Swivel range
Adjustment range of start angle
Adjustment range of end angle
Switching range of sensor
end angle
start angle
start angle
end angle
Swivel range
Adjustment range of start angle
Adjustment range of end angle
Switching range of sensor
Rotating angle setting and monitoring range GSM
