2.6.1.2 FX MODULES 4 AND 5

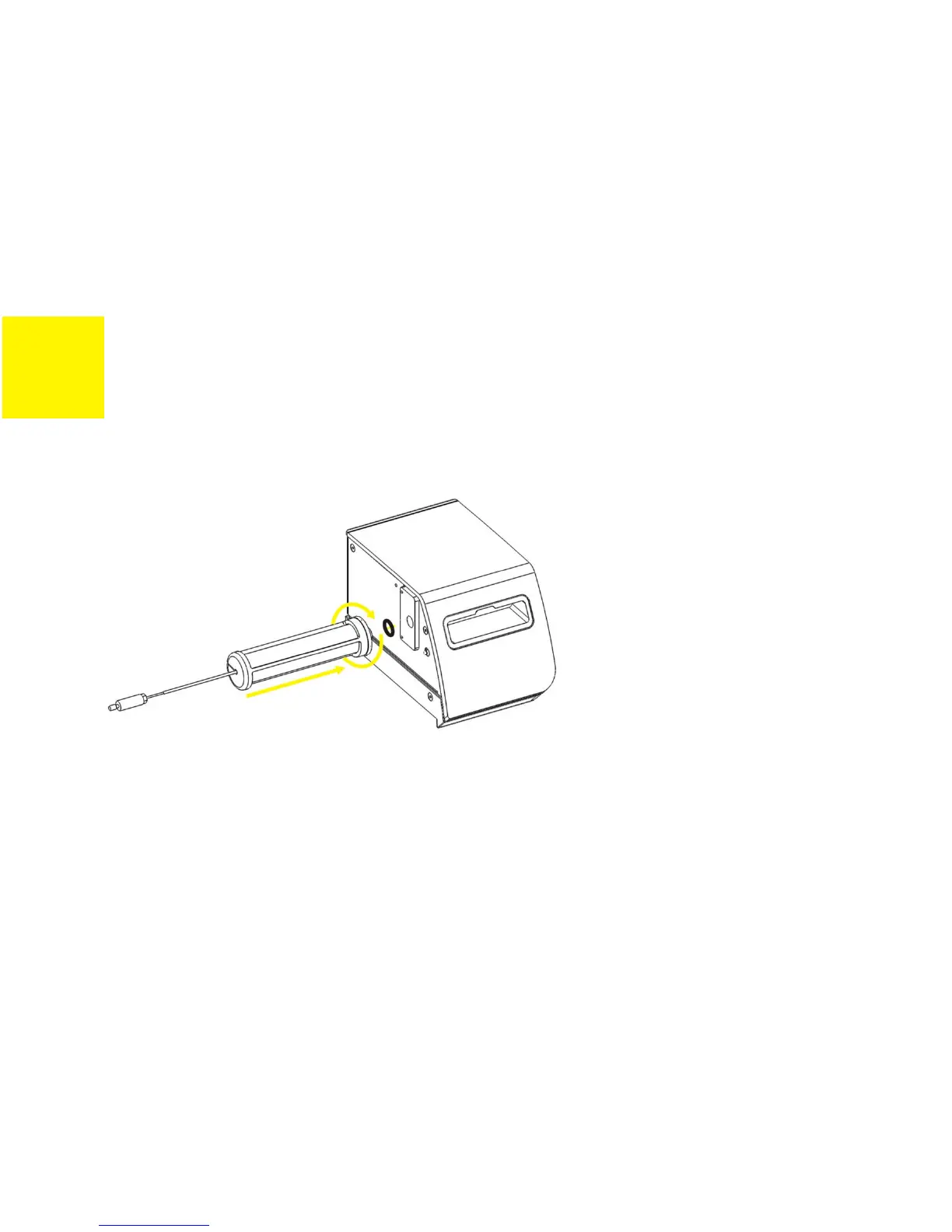

FIGURE 2-7: ASSEMBLY STEPS, FX MODULES 4 AND 5
1) Align the O-ring and the piston/cylinder assembly with the module per Figure 2-7.
2) Rotate the piston/cylinder clockwise until it is secure, but do not over-tighten as this may
cause damage.
2.6.2 REMOVING A MODULE FROM THE FX BASE UNIT
1)
Power off the flexiVent and disconnect it from its power supply.
2) Open the base unit protective cover.
