3) Remove the FX adapter.
Do not run fluids through the FX adapter when it is attached to the flexiVent .
4) Connect the quick-connects from the cleaning kit to the expiratory port on the front of the
module (A) and the air/gas exhaust port on the back of the module (B) per Figure 5-1.

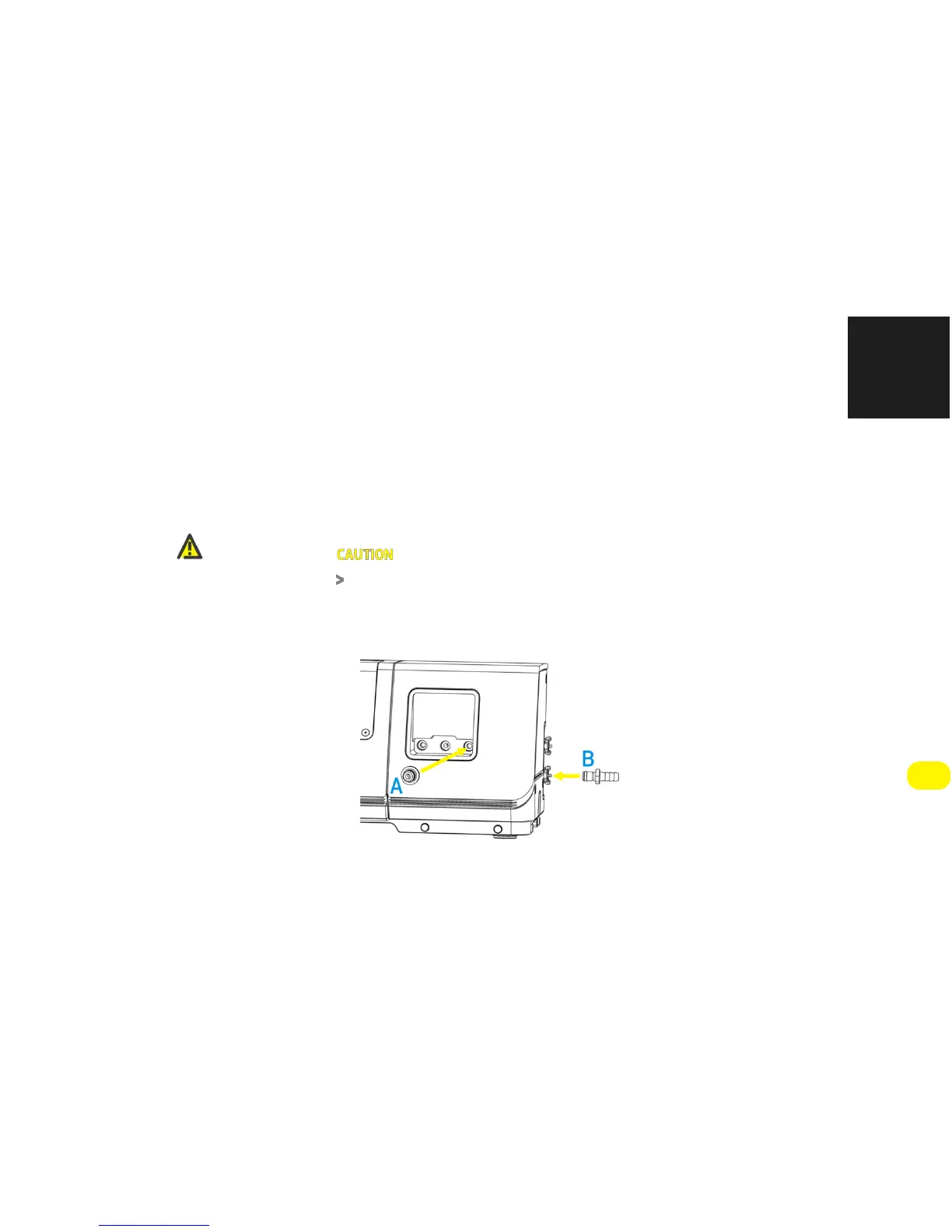

FIGURE 5-1: QUICK-CONNECT ATTACHMENT FOR CLEANING
5) Add a length of tubing (C) to each quick-connect per Figure 5-2.
