Scireq flexivent - Tubing Attachment for Cleaning; Full Cleaning Configuration

64

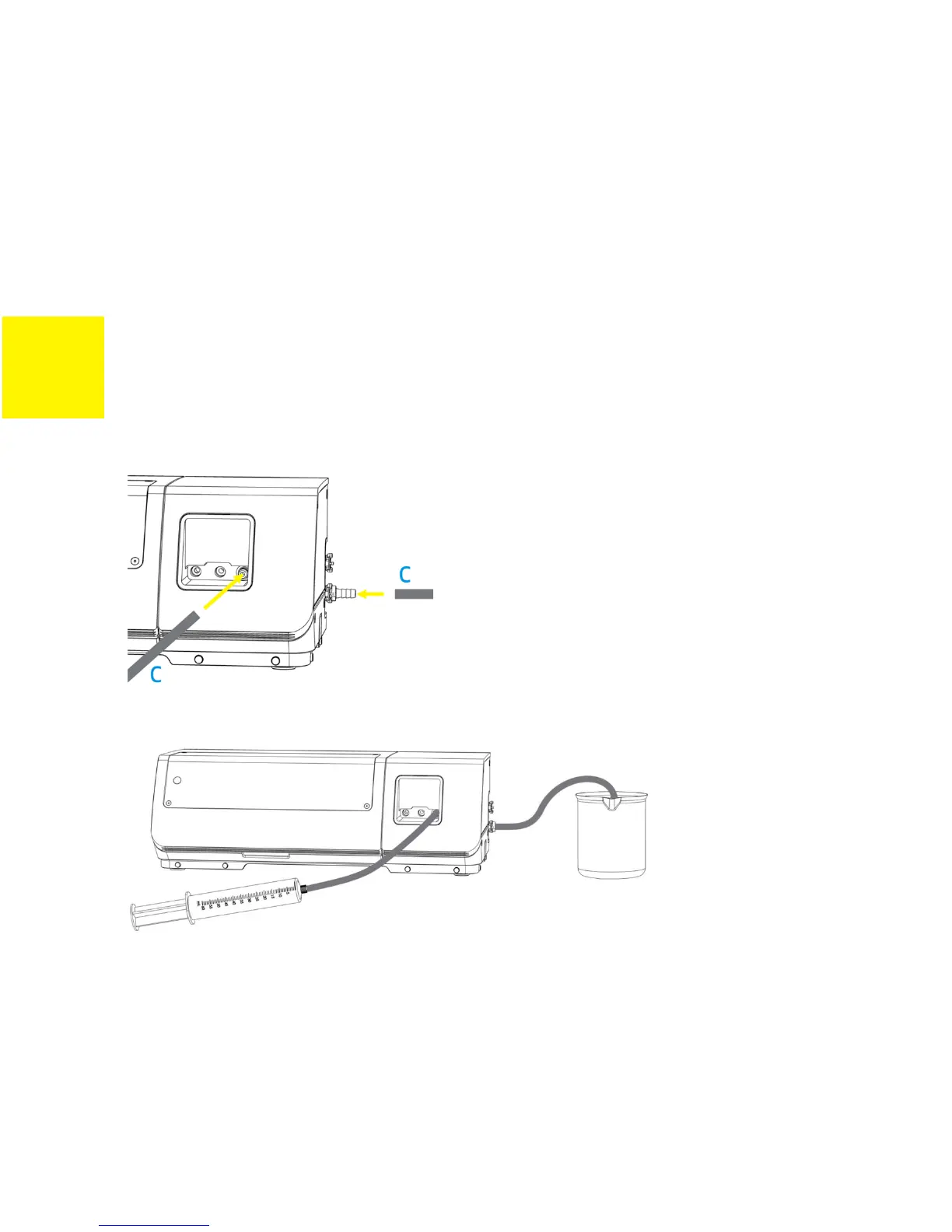

FIGURE 5-2: TUBING ATTACHMENT FOR CLEANING
6) Place the beaker at the end of the tubing connected to the air/gas exhaust port per
Figure 5-3.
FIGURE 5-3: FULL CLEANING CONFIGURATION
