The nebulizer will generate aerosol for a few seconds. Once this is complete place it
securely on the mount of the FX adapter.
13)
Proceed to channel calibration
Calibrate the cylinder pressure channel. Most templates require a two point calibration
in which the first point is 0 mmH
2
O (open to atmosphere) and the second point is
approximately 300 mmH
2
O (applied using a manometer) to cover the range of
expected pressures. The square to the right of the bar will turn green when a pressure
adequate for calibration is reached.
During Step 4 of the calibration, enter the exact pressure value applied
by the using manometer. For example, if the pressure actually applied was 295 mmH
2
O,
enter 295 mmH
2
O; do not retain the default value of 300 mmH
2
O that is initially
displayed.

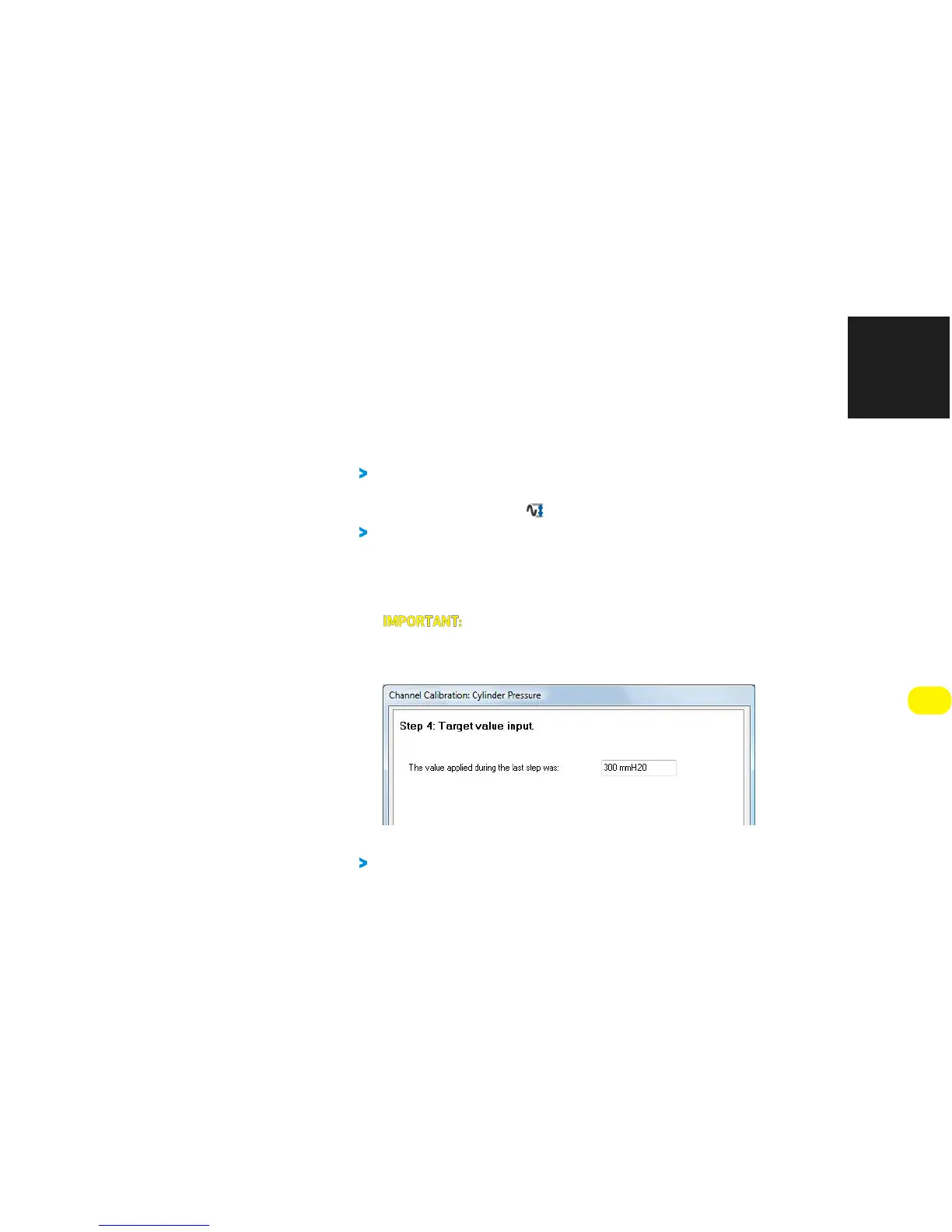

FIGURE 3-5: STEP 4 OF CHANNEL CALIBRATION, CYLINDER PRESSURE
Verify the calibration results when they are displayed (see Figure 3-6). Cylinder
pressure channel calibration values should fall within the following ranges:
Max. value: 80.0 cmH
2
O ± 5 cmH
2
O
Min. value: -80.0 cmH
2
O ± 5 cmH
2
O
