FX Module 1, 2 and 3:
3)
Remove the screws above and below the cylinder while supporting the cylinder and piston
rod per Figure 5-4.
This step requires a 7/64” hex/allen wrench.
4)
Gently pull the cylinder back from the module.
5)
Locate the O-ring that is seated between the cylinder and module. Place the O-ring and
screws from the assembly into a container (e.g. envelope or small plastic bag).

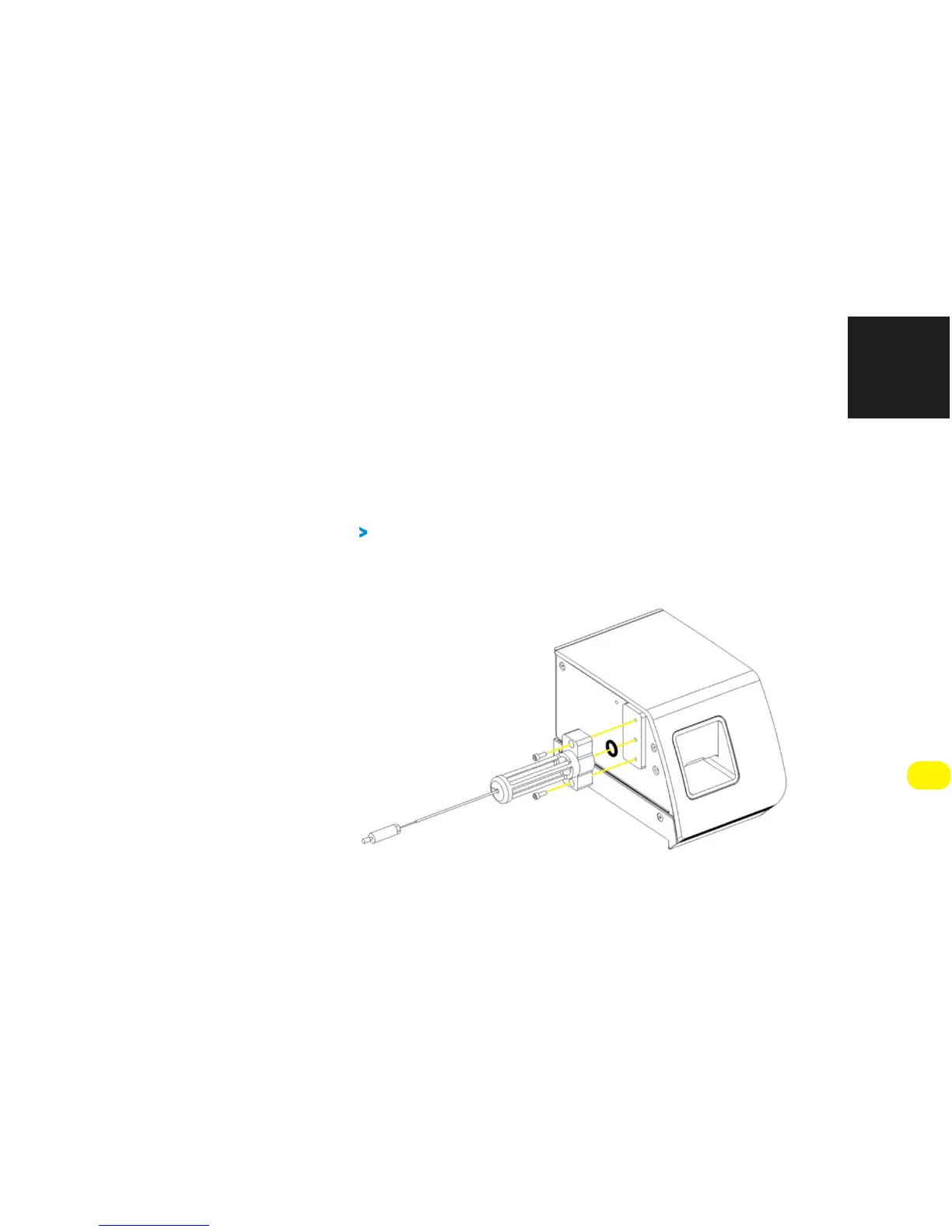

FIGURE 5-4: MODULE 1, 2 OR 3 DISASSEMBLY
