SPECIFICATIONS
Memory 64 Mbyte non-volatile FLASH memory
Data Storage Recorded Parameter Bytes/Sample
T + C 6
pressure - strain gauge or Quartz 5
each external voltage 2
auxiliary RS-232 sensor sensor dependent
Real-Time Clock 32,768 Hz TCXO accurate to ±1 minute/year
Internal Batteries 9 alkaline D-cells (Duracell MN1300, LR20) provide 60 hours profiling;
optional 9-cell NiMH battery pack provides 40 hours profiling per charge;
optional 9-cell Ni-Cad battery pack provides 24 hours profiling per charge
External Power Supply 9 - 28 VDC; consult factory for required current
Power Requirements
Sampling 70 mA
Pump SBE 5M: 100 mA Optional SBE 5T or 5P: 150 mA
Communications 65 mA
Quiescent 20 μA
Auxiliary Sensors
Auxiliary power out up to 500 mA at 10.5 - 11 VDC
Voltage sensor A/D resolution 14 bits
Voltage sensor input range 0 - 5 VDC
Housing Materials, Depth Rating, Weight in air*, Weight in water*
Acetal Copolymer Plastic housing, 600 m (1950 ft), 7.3 kg (16 lbs), 2.3 kg (5 lbs)
3AL-2.5V Titanium housing, 7000 m (22,900 ft), 13.7 kg (30 lbs), 8.6 kg (19 lbs)
*Weights listed are without pump; pump adds (in air) 0.3 to 0.7 kg (0.6 to 1.5 lbs),
depending on pump model selected. See pump brochures for details.
Optional Cage
(for 19plus V2 with strain-gauge pressure) 1016 x 241 x 279 mm (40 x 9.5 x 11 in.), 6.3 kg (14 lbs)
(for 19plus V2 with Digiquartz pressure) 1219 x 241 x 279 mm (48 x 9.5 x 11 in.)
Measurement Initial Typical
Range Accuracy Stability Resolution
0.00005 (most oceanic waters; resolves 0.4 ppm in salinity)
Conductivity (S/m) 0 to 9 0.0005 0.0003/month 0.00007 S/m (high salinity waters; resolves 0.4 ppm in salinity)
0.00001 S/m (fresh waters; resolves 0.1 ppm in salinity)
Temperature (°C) -5 to +35 0.005 0.0002/month 0.0001
0 to 20/100/350/600/ 0.1% of 0.1% of
Pressure - 1000/2000/3500/ full scale full scale 0.002% of full scale range
Strain Gauge 7000 meters range range/year
0 to 20/60/130/200/
Pressure - 270/680/1400/ 0.02% of 0.025% of 0.0025% of full scale range
Quartz 2000/4200/7000/ full scale full scale
10,500 meters range range/year
02/08

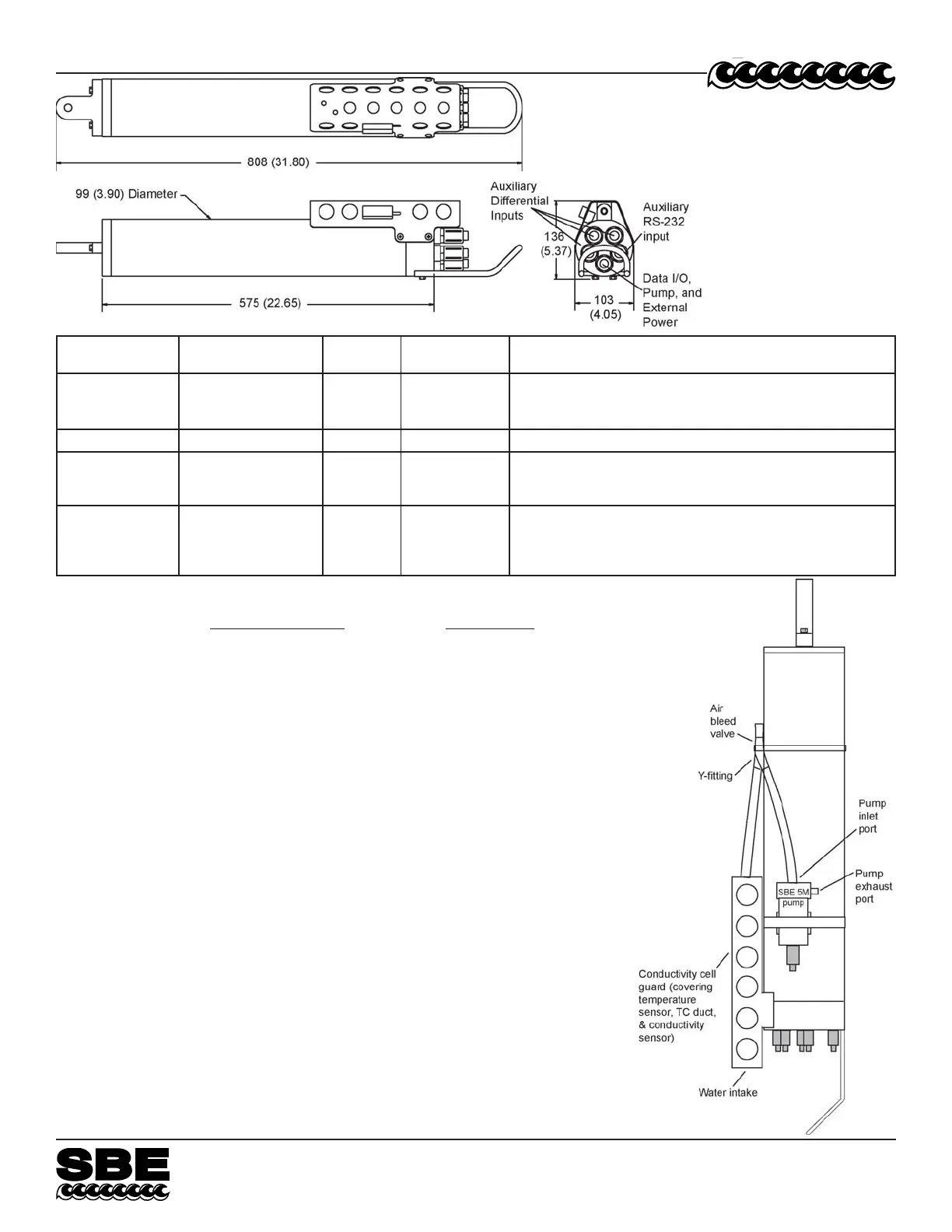

SBE 19plus V2
SEACAT Profiler CTD
Dimensions
in millimeters
(inches)
*Note: 19plus V2 with optional
Quartz pressure sensor is
190 mm (7.5 inches) longer
than shown in drawing.
*
144
