Sea-Bird Electronics SBE 19plusV2 - Dimensions and End Cap Connectors

Section 2: Description of SBE 19plus V2
13

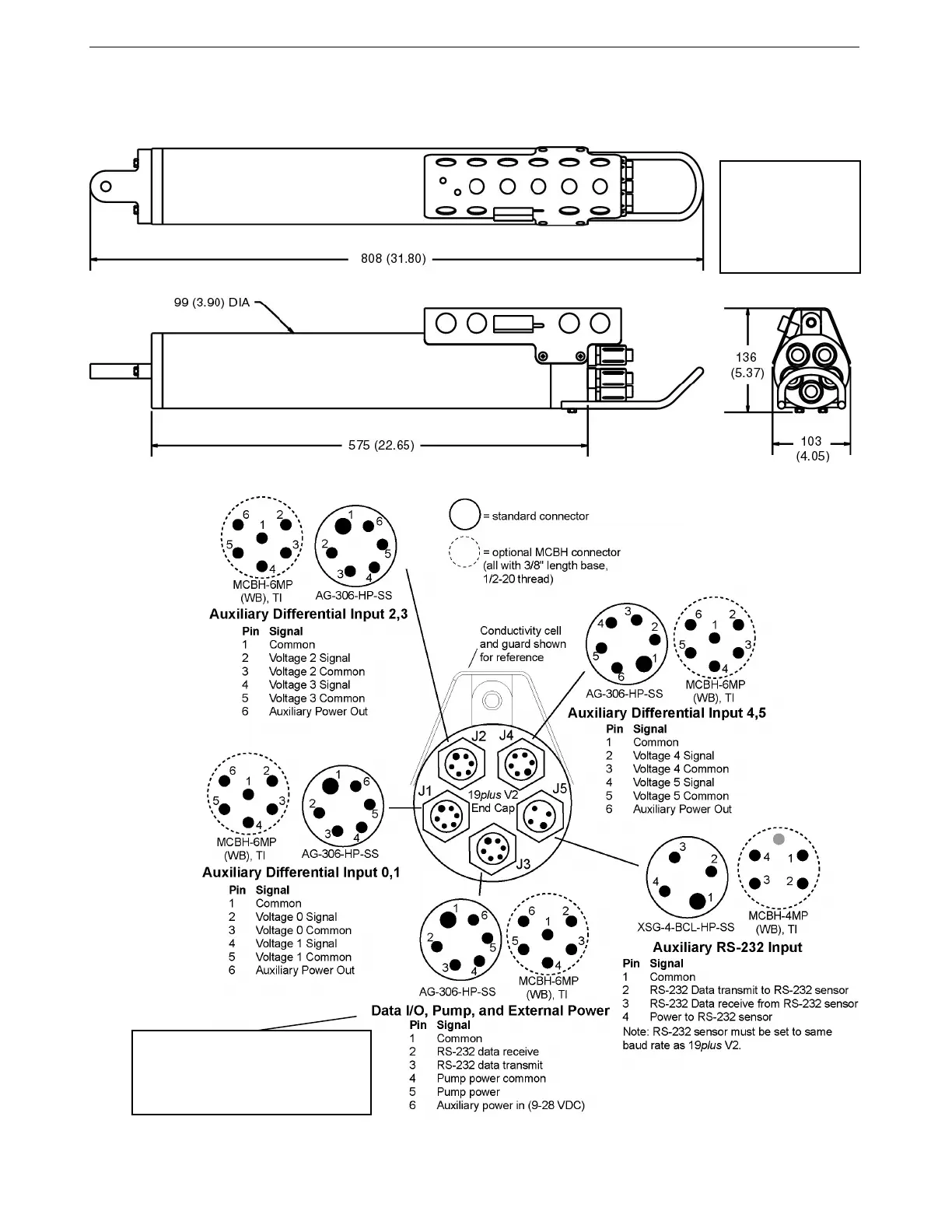

Dimensions and End Cap Connectors
Dimensions in millimeters (inches)
Note:
A Y-cable from this connector
connects to the pump and to a
data I/O - power cable.
Note:
19plus V2 with
optional Quartz
pressure sensor is
190 mm (7.5 inches)
longer than shown
in drawin
g
.
* See note
* See note
