Sea-Bird Electronics SBE 19plusV2 - Page 261

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Black
Red
White
Green
Title
Size Document Number Rev
Date: Sheet of
32935 -

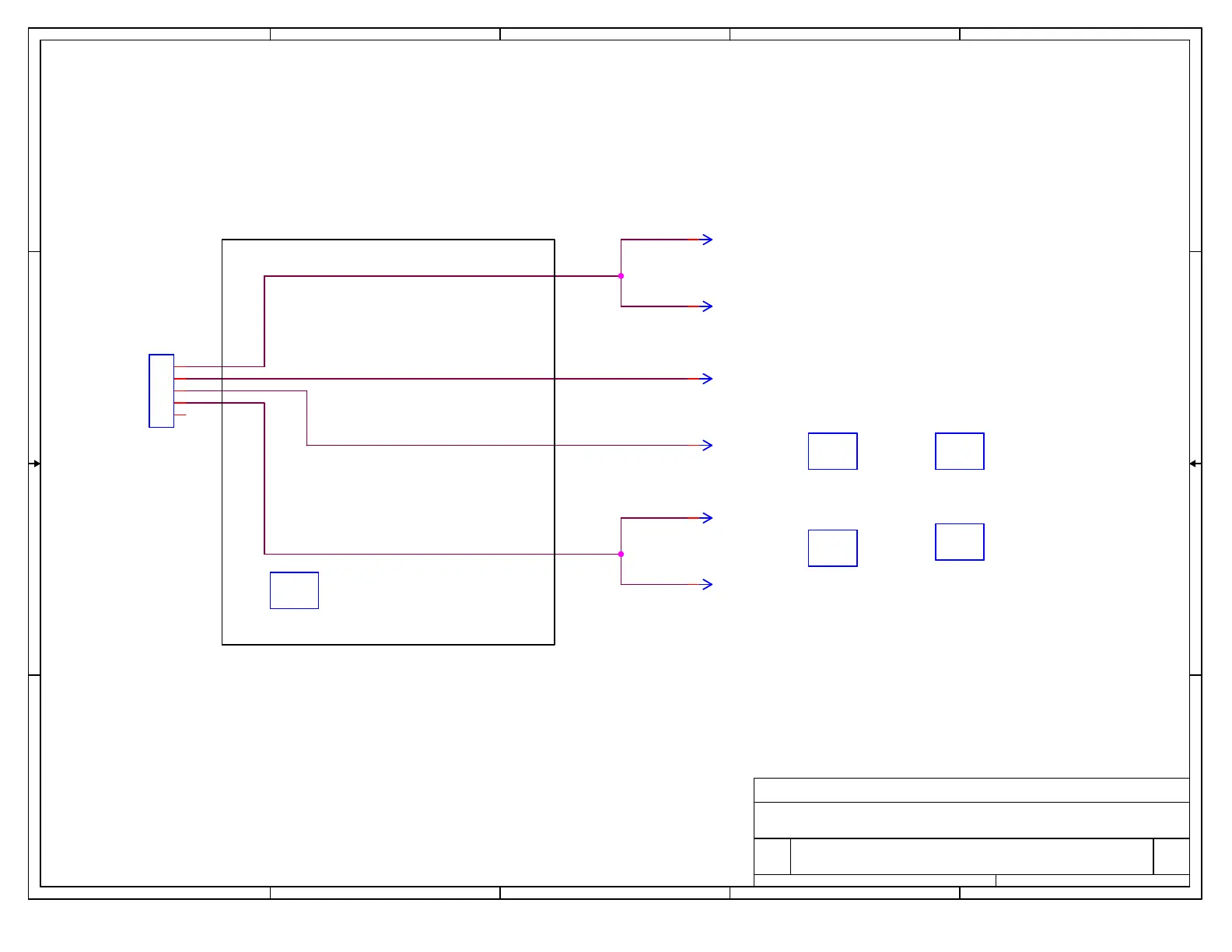

NiMH Battery Charger Cable Assembly
A
1 1Friday, May 21, 2004
Title
Size Document Number Rev
Date: Sheet of
32935 -
NiMH Battery Charger Cable Assembly
A
1 1Friday, May 21, 2004
Title
Size Document Number Rev
Date: Sheet of
32935 -
NiMH Battery Charger Cable Assembly
A
1 1Friday, May 21, 2004
These six pins and two PCB's form a custom
connector assembly in the DB25 hood. Swage &
solder pins 1 and 6, solder the rest.
Cut end of
connector boot to
fit cable
Manually connect pins 5
and 6 with 20AWG solid
tinned copper wire
Manually connect pins 1
and 2 with 20AWG solid
tinned copper wire
3
P3
Mini-plug
171934
P3
Mini-plug
171934
Cable1
Cable, Black SJOOW 18AWGx4 conductor, 10'
171933
Cable1
Cable, Black SJOOW 18AWGx4 conductor, 10'
171933
5
P5
Mini-plug
171934
P5
Mini-plug
171934
1
2
3
4
G
J1
XLR, 4pin/g, Female cable
171935
NC4FX-B
J1
XLR, 4pin/g, Female cable
171935
NC4FX-B
1
P1
Mini-plug
171934
P1
Mini-plug
171934
PCB2
Connector Inner PCB
10314
PCB2
Connector Inner PCB
10314
4
P4
Mini-plug
171934
P4
Mini-plug
171934
PCB1
Connector Outer PCB
10313
PCB1
Connector Outer PCB
10313
6
P6
Mini-plug
171934
P6
Mini-plug
171934
2
P2
Mini-plug
171934
P2
Mini-plug
171934
HOOD1
DB25 Hood
17006
HOOD1
DB25 Hood
17006
HOOD2
DB Connector Grommet Set
171956
HOOD2
DB Connector Grommet Set
171956
258
