PV200/210 Operating Instructions
- 19 -

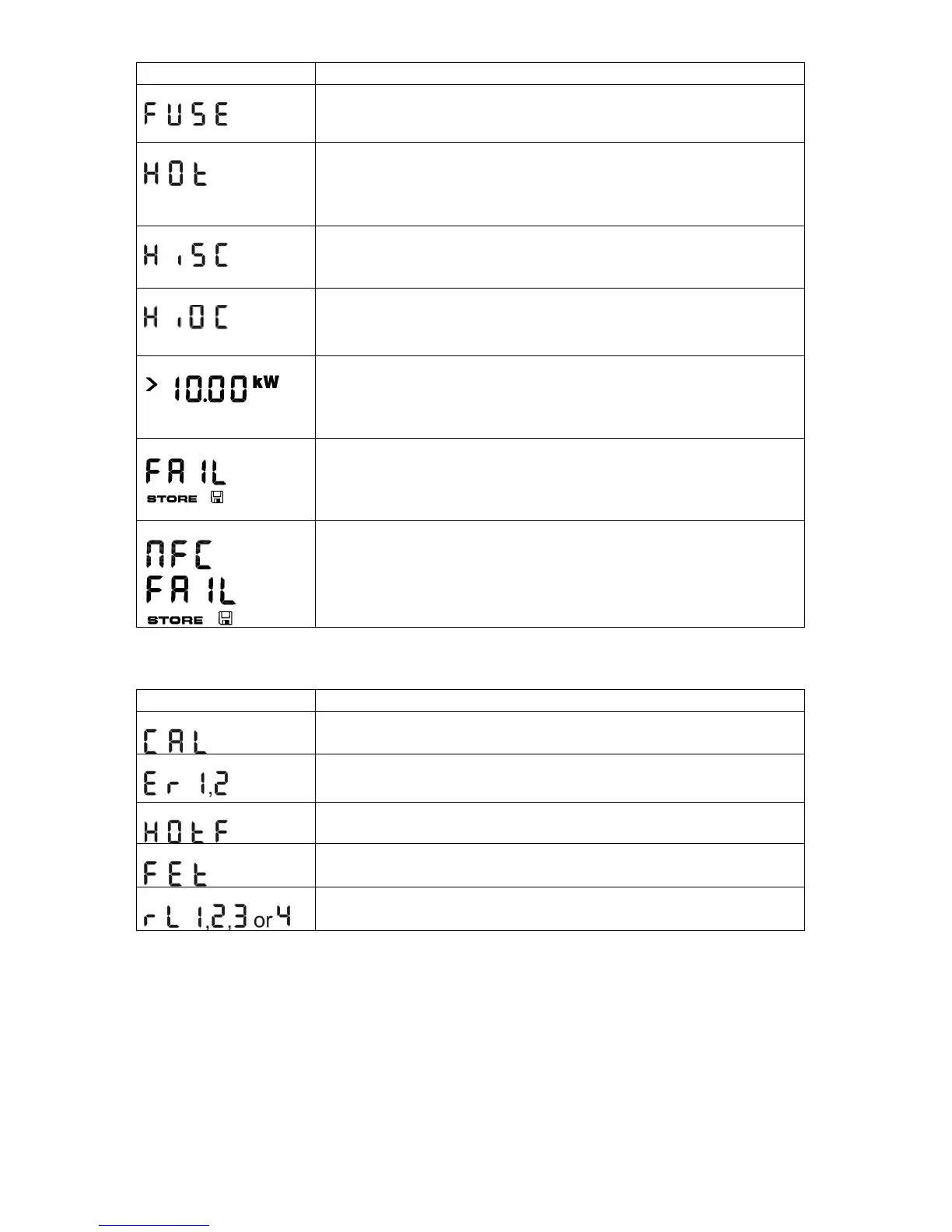

The internal fuse has blown. Refer to section 8.5 in the
operating instructions for details on how to replace the fuse.
The electronics within the PV200/210 have reached the
maximum safe temperature. This can occur after repeated
short circuit current measurements at high current levels.
Allow the unit to cool down before further use.
The DC short circuit current has exceeded the maximum
rated value of 15A. The measurement sequence has been
aborted. Reference section 5.13.3.
High Open Circuit Voltage (ie > 1000V ), check supply
voltage, if above 1000V cease testing.
During the Automatic test sequence the PV200/210 has
calculated that the maximum power rating has been
exceeded. Insulation tests and I-V Curves will not be
performed until the power measurement is less than 10kW.
The memory store verification check has failed, the stored
record will be logged as corrupt. Please store the result
again. Please note that this will store the record in the next
available memory location.
The NFC memory store verification check has failed, the
record in NFC is incomplete or corrupt. Ensure that no
NFC enabled device is near the PV200/210 NFC antenna.
Saved data can be reviewed by using the memory recall
function.
5.13.2 Non user serviceable error codes
The PV200/210 is not correctly calibrated. Return the unit to
an authorised Service Agent.
etc
Return the unit to an authorised Service Agent.
Return the unit to an authorised Service Agent.
Return the unit to an authorised Service Agent.
Return the unit to an authorised Service Agent.
5.13.3 Overriding the HiSC error code
The HiSC error code is displayed if a current of >15A is measured at the beginning of
the test. If this error code is displayed then ensure that the connections made to the
PV200/210 cannot generate >15A. Once you have confirmed that it is okay to proceed
the HiSC warning can be overridden. To override the HiSC warning press the AUTO
key, this will start a new test and display the HiSC error code, while this is displayed
press and hold the NULL key then press and hold the AUTO key while the NULL is still
being pressed, the selected AUTO test will start will the pre-test disabled.
