44 •
17-10-06-643-100a/04-2018S

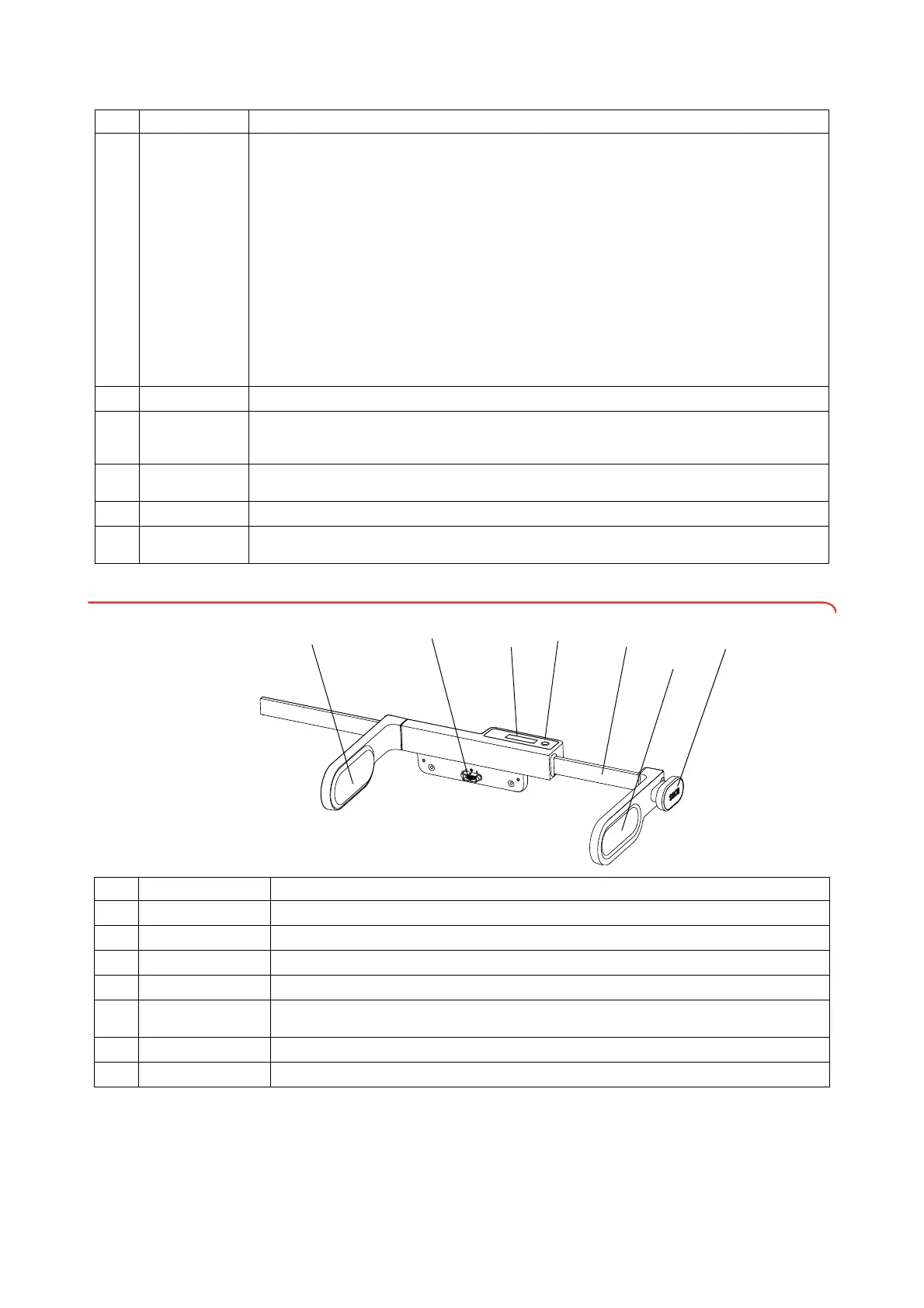

3.2 Controls for seca 234 measuring rod (optional)
6
Status LED
Indicates the status of data recording and data transmission:
• Illuminated in green: Identification or measuring procedure started.
• Flashing green (approx. 5 seconds): Measured results being sent to the HIS (depending on
setting).
• Illuminated in green (approx. 5 seconds): Measured results successfully sent to the HIS
(depending on setting).
• Illuminated in red (approx. 5 seconds, see “Data transmission (models with a WiFi interface)”
from page 38):
-ID
not found in hospital information system (HIS) or in seca software.
- Device has not saved measured results to the clipboard.
- Measured results have not been sent to an HIS or to seca software.
NOTE
The data recorded and transmitted are set in the configuration software. If you have any
queries, please contact your administrator or hospital technician.
7
Foot screw
4 pcs, for precise alignment
8
Electrical
connection (with
protective cap)
For connecting a digital measuring rod
9
Battery
compartment
Takes type AA batteries, 1.5 V
10
USB interface
For connecting a barcode scanner
11
Power supply
connection
For connecting the power supply unit
No. Control Function
1
Head stop
For positioning the baby
2
Connector
For connecting to a scale
3
Display
Display element for measured results
4
hold key
Sends measured result to the connected scale
5
Measuring rod with
scale
For reading off length
6
Foot stop
For positioning the baby
7
Handle
For moving the foot stop
No. Control Function
