Setting the Proper Cutband Receiver ID Code

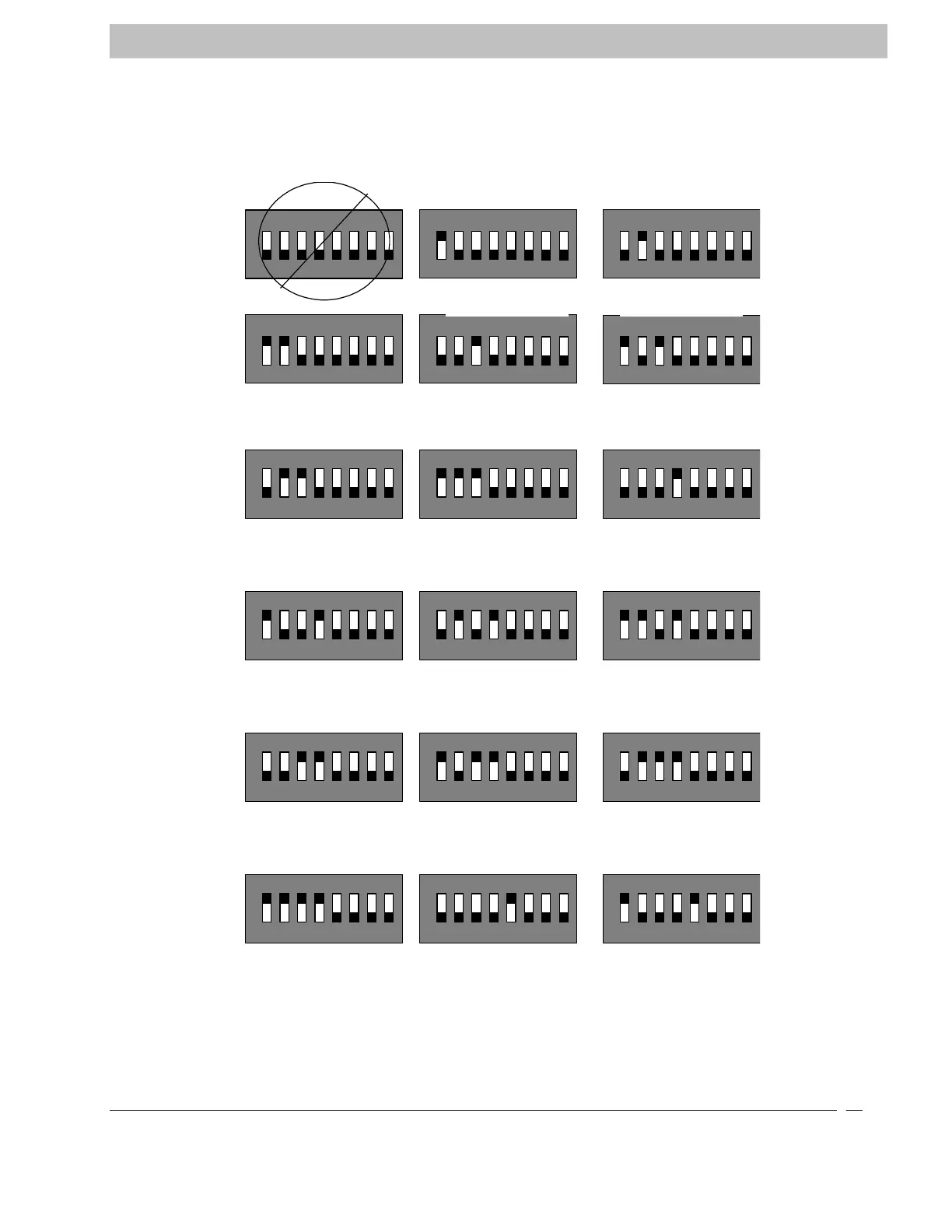

NOTE: Never use Address ID = 0 Each Cutband Receiver must be setup with a unique address when interfaced to
the XIU. If each Cutband Receiver is not set up with a unique address, the XIU will not have the ability to distinguish
between the individual receivers.
SECTION 9 INSTALLATION AND CONNECTIONS
ON
1 2 3 4 5 6 7 8
Address = 0
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
Address = 1
Address = 2
Address = 3
Address = 4
Address = 5
Address = 6
Address = 7
Address = 8
Address = 9
Address = 10
Address = 11
Address = 12
Address = 13
Address = 14
Address = 15
Address = 16
Address = 17
