Secutron MMX-2003-12NDS User Manual

40
Paging Operation

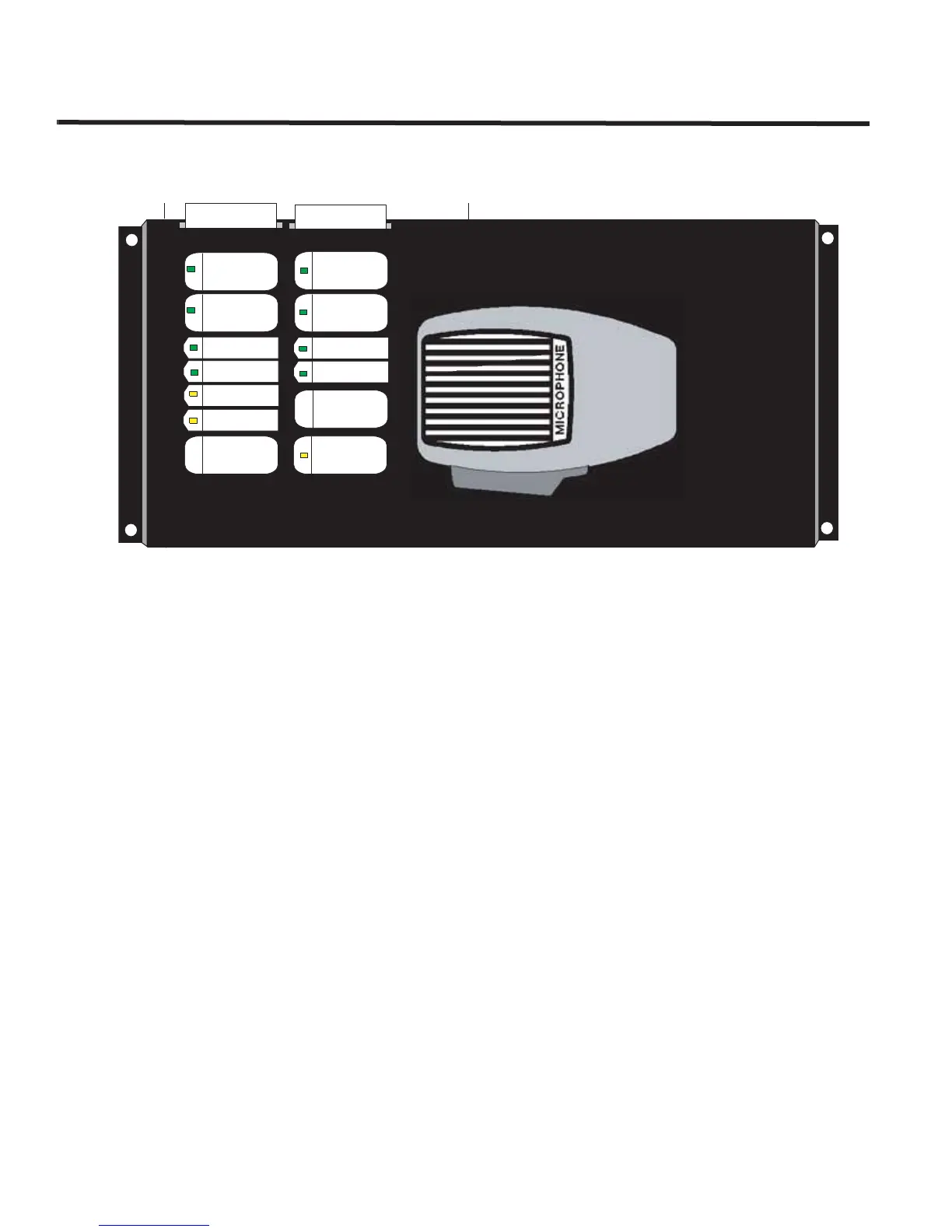

QMP-5101N and QMP-5101NV Network Master Paging Indicators and Controls
This section describes the controls and indicators on the QMP-5101N (shown in figure above) and QMP-5101NV
Master Paging and QAZT-5302 Paging Selector Modules. The QMP-5101NV is similar to the QMP-5101N except
mounting is vertical.
QMP-5101N/V LEDs
Amplifier Trouble LED
Indicates any QX-5000N amplifier internal trouble.
Warden Page
Illuminates steady green to indicate that the Warden Page function is active.
All Call
Illuminates steady green to indicate that the All-Call function is active. This LED will not function if the DIP switch
SW1-5 is set to ON.
Mic Active LED
Flashes green to indicate any activity on the paging bus (i.e. other microphone in use). Illuminates steady green
when associated microphone (at proximity of LED) is in use.
Pre-Tone Active LED
Steady green when paging and warden paging
Amplifier Trouble LED
Indicates any QX-5000N amplifier internal trouble.
Mic Trouble LED
Flashes amber to indicate a microphone trouble.
Page to Evac LED
Illuminates steady green when the Page to Evac pushbutton is active.
PAGE TO
ALERT
WARDEN
PAG E
ALL CALL
A.C. ON
PAGE
READY
PRE-TONE
ACTIVE
AMPLIFIER
TROUBLE
MIC
TROUBLE
LAMP
TEST
PAGE
CANCEL
PAGE TO
EVAC
MIC.
ACTIVE
ALL CALL
MINUS
NP-6659
NP-6659
