Paging Operation
42

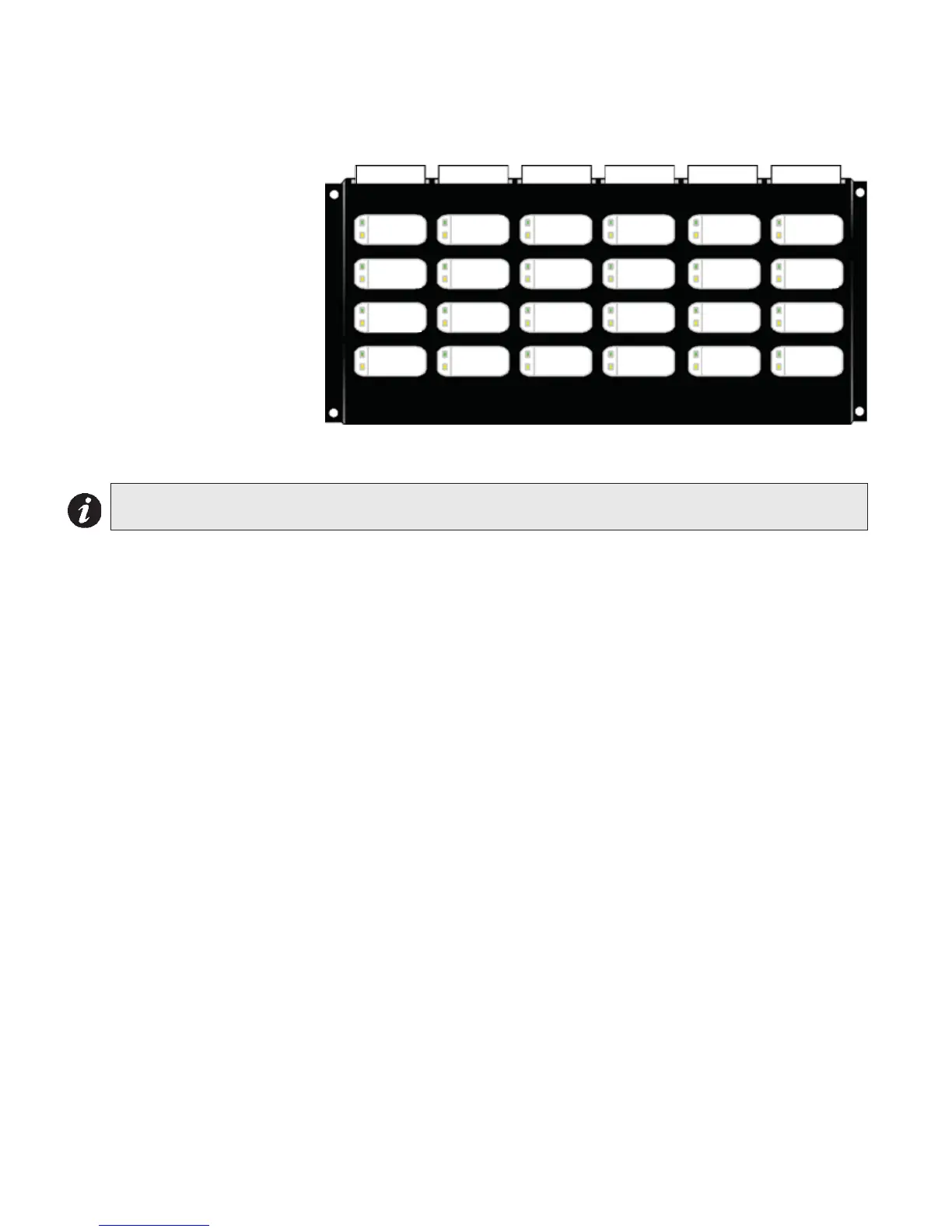

QAZT-5302 Paging Selector Panel
Each QAZT-5302 annunciates
and controls up to 24 paging
zones. There is one button and
two LEDs per zone. The lower
amber LED indicates zone
trouble. The upper green LED
indicates whether that zone is
selected for paging
communication.
Paging zone selection buttons
toggle ON and OFF voice paging
for that zone.
QAZT-5302 Paging Selector Panel LEDs
Page LED
Illuminates green if the zone is selected for voice paging.
Trouble LED
Flashes amber to indicate that the zone is in trouble.
QAZT-5302 Pushbuttons
Page Button (if enabled)
Selects / deselects that zone for voice paging.
Note: Use configurator to set up the QAZT-5302 Paging Zone Selector Panels.
