Secutron MMX-2003-12NDS User Manual

2

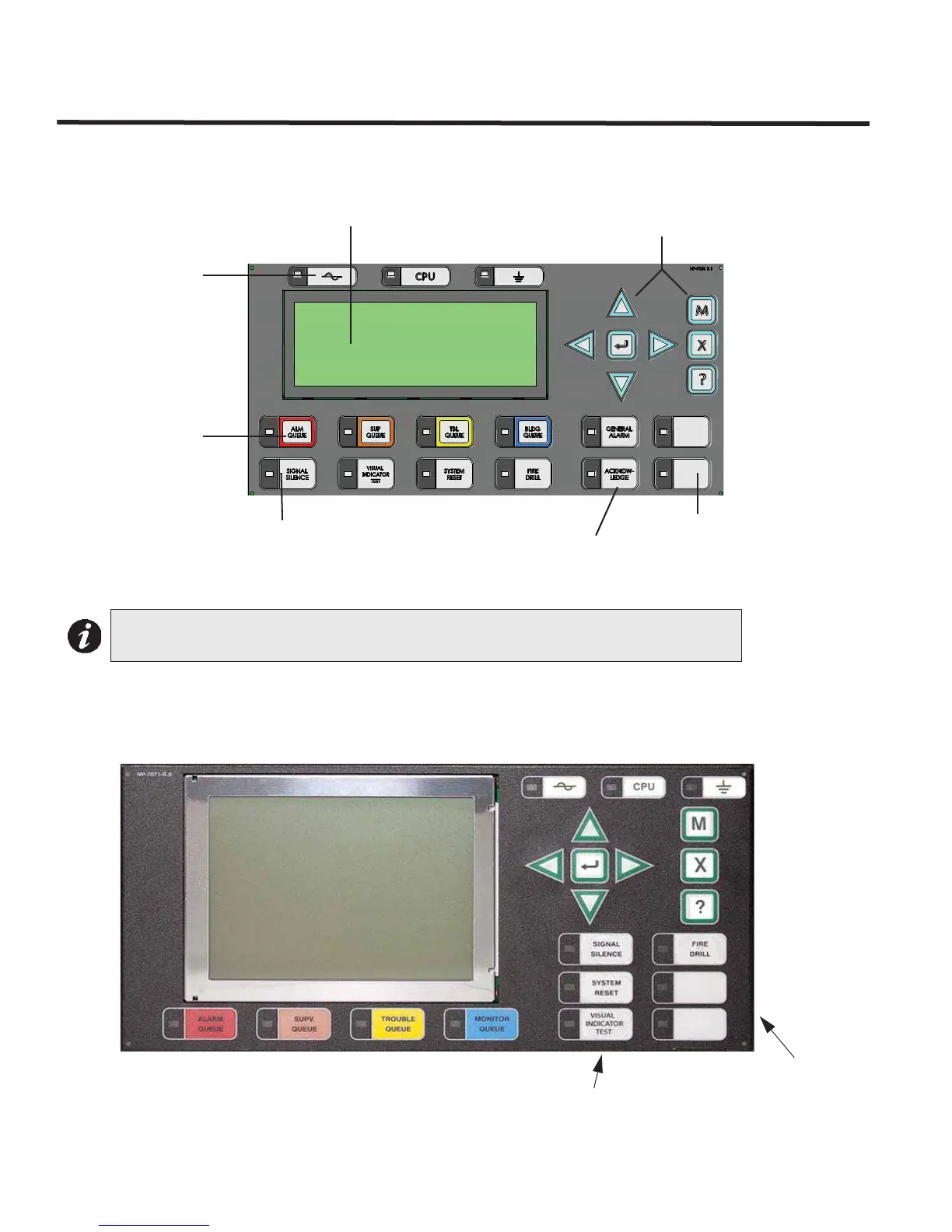

Front Panel Indicators, Controls, and Operation
Front Panel Indicators and Control Locations (Model DSPL-420)
Graphic Front Panel Indicators and Control Locations (Model DSPL-2440)
Note: The General Alarm LED and pushbutton, and the Acknowledge LED and
pushbutton, are active only on a system configured for Two Stage.
MCG Network
Fire Control System
- System Normal -
May 04, 2016 12:00:00
LCD Display - four lines,
20 characters per line
Cursor buttons, ENTER, MENU,
CANCEL, INFO
Queue controls and
indicators for Alarm,
Supervisory, Trouble,
and Building
Indicators for AC On,
CPU Fault, and
Ground Fault
Controls & Indicators for Signal
Silence, Visual Indicator Test,
System Reset, Fire Drill
Two configurable
switches & amber
LEDs
Controls & Indicators for General
Alarm & Acknowledge (2 stage
systems)
Graphic Display - 24 lines,
40 characters per line
Queue controls and indicators for
Alarm, Supervisory, Trouble, and
Controls & Indicators for Signal
Silence, Visual Indicator Test,
System Reset, Fire Drill
Two configurable switches & amber
LEDs such as General Alarm &
Acknowledge for Two-stage Systems
Cursor buttons:
ENTER,
MENU,
CANCEL,
INFO
Indicators for AC On, CPU Fault, and Ground
