User Guide
3

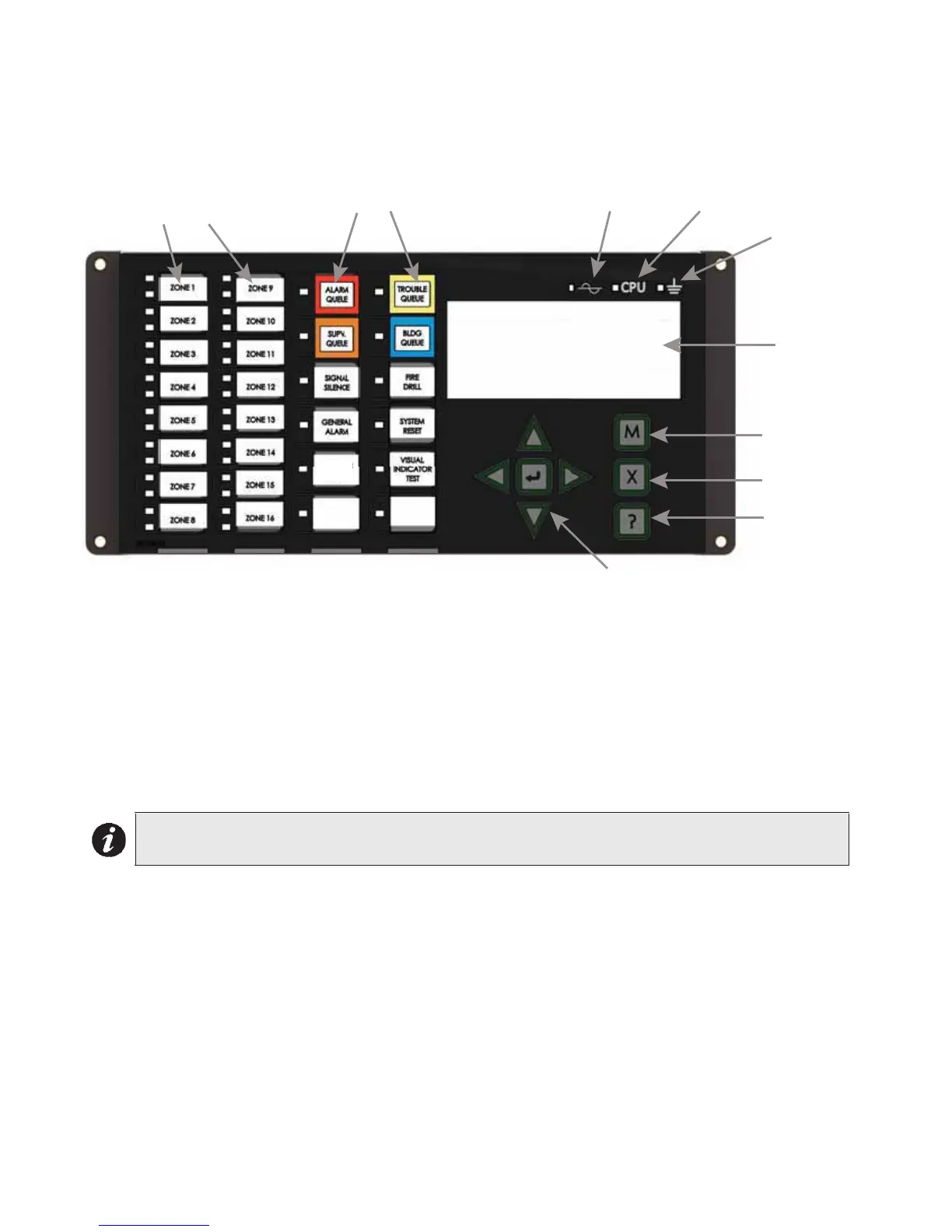

Front Panel Indicators and Control Locations (Model DSPL-420-16TZDS)
LED indicators are amber (trouble or supervisory), red (alarm), or green (AC ON), and may illuminate
continuously (steady) or at one of two flash rates:
• Fast flash: 120 flashes per minute, 50% duty cycle
• Trouble flash: 20 flashes per minute, 50% duty cycle
Paper Labels for Buttons and Indicators
Buttons and indicators are supplied with paper labels. These labels slide into the plastic label templates on the
face of the panel. Paper labels allow for easy English / French selection and custom-printed zone information.
Note: The Acknowledge LED and pushbutton, are active only on a system configured for Two Stage.
16 congurable
bi-coloured zone
indicators and 16
trouble indicators
Queue controls and
indicators for Alarm,
Supervisory,
Trouble and Monitor
AC On
Indicator
CPU Fault
Indicator
Ground Fault
Indicator
LCD Display
4 lines
20 characters
Menu
Cancel
Info
Cursor buttons
and Enter button
Control and Indicators for Signal Silence, General Alarm,
Automatic Alarm Signal Cancel, Fire Drill, System Reset,
Visual Indicator Test and Spare programmable Buttons
AUTOMATIC
ALARM
SIGNAL
CANCEL
