Secutron Inc. 28
4.1.2 Zone Wiring Chart
Table 5 Zone Wiring Chart

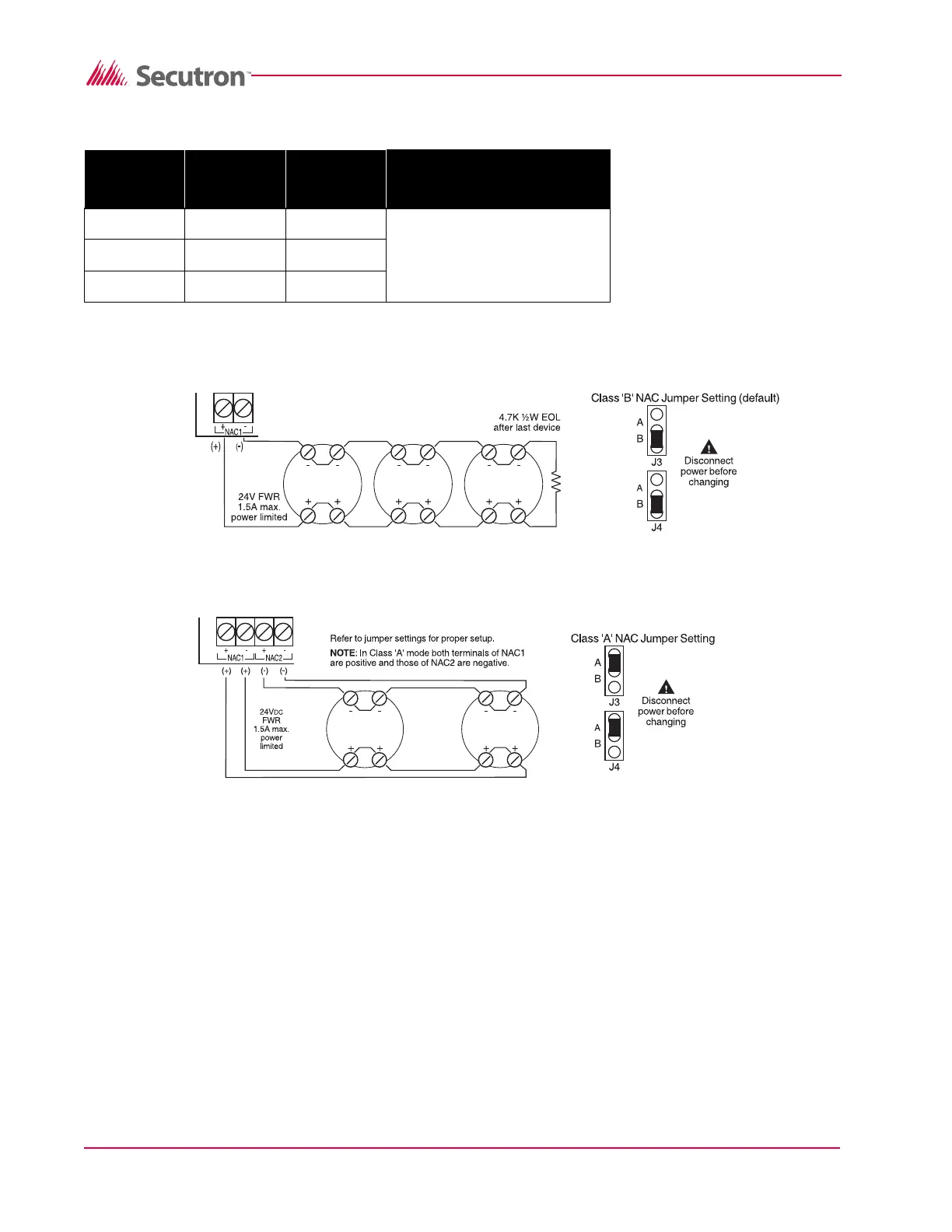

4.2 Connecting NAC Devices (Class ‘A’ and Class ‘B’)
Figure 11 Connecting NAC Devices (Class ‘B’)
Figure 12 Connecting NAC Devices (Class ‘A’)
Wire
(Gauge)
Distance
(feet)
Distance
(meters)
18 7,690 2,345 Maximum loop resistance is
100 ohms. Maximum current
in alarm is 60 mA.
16 12,195 3,717
14 19,230 5,861
