6.3.6 Reference AC Line Frequency (50 or 60 Hz)
Use the Zone 2 Alarm, Supervisory and Trouble LED’s to select the Reference AC Line
Frequency.
Press the Silence Alarm control to cycle through the programmable settings,
Press the Silence Trouble control to cycle through the Zones. To proceed to the next
programming function cycle through the 2 zones.
The Trouble LED flashes when the panel is in programming mode.
The Ground Fault Status LED will illuminate steady.

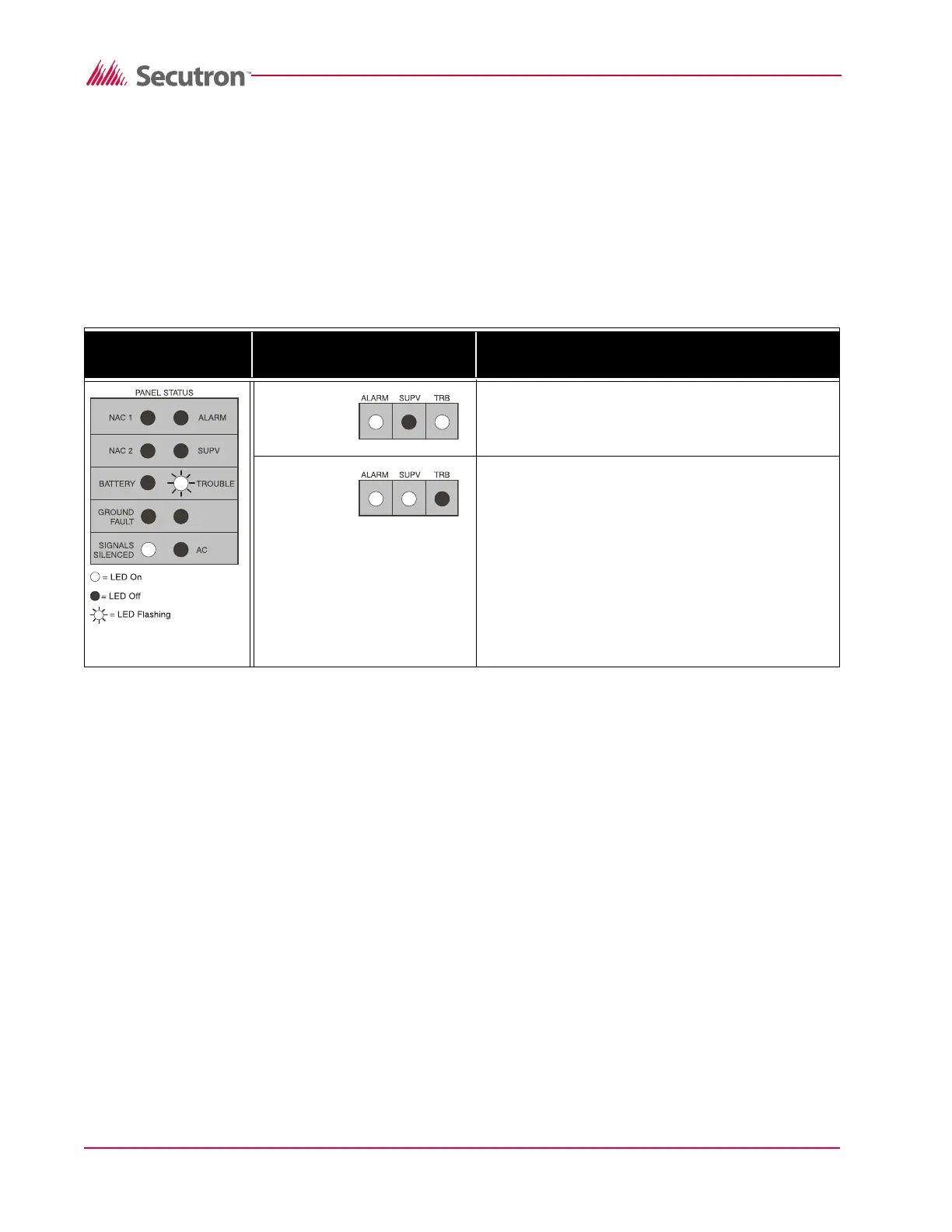

Table 15 LED Indicators for Reference AC Line Frequency (50 or 60 Hz)
6.3.7 Entering the Reset Programming Mode
The Reset Programming mode allows for the following
• Removing a Module
• Adding a Module
• Default the System
Enter the Reset Programming Mode as described in the following steps
How to enter the Reset Programming Mode
1. Enter the Installer Programming Mode as described in 6.1 Entering Installer Programming
Mode on page 40.
2. To enter the Reset Programming mode, press and hold the System Reset button for 2
seconds. The Zone1 Alarm LD and Trouble LED will be ON and all the System Trouble
LEDs will flash Once in the Installer Programming Mode, the Reset Programming Mode can
be accessed at any time.
Panel Status LED Alarm, Supervisory and
Trouble LED’s
Programmable Setting Description
50 Hz
60 Hz (default)
CPU
FAULT
Zone 2
50 Hz
Zone 2
60 Hz
To Next Page
