6. Position the Column and make it firm to floor and wall. Check that it is
properly levelled on both lateral sides and on the front. Make sure the
Column is firmly anchored. (Refer to Illustration 3-3.)
It is recommended that the upper part of the Column should be
placed slightly leaned towards the wall with its top in a closer
position to the wall than its base. This position will compensate
Column levelling in the installation of the Tube-Collimator
Assembly and Bucky.

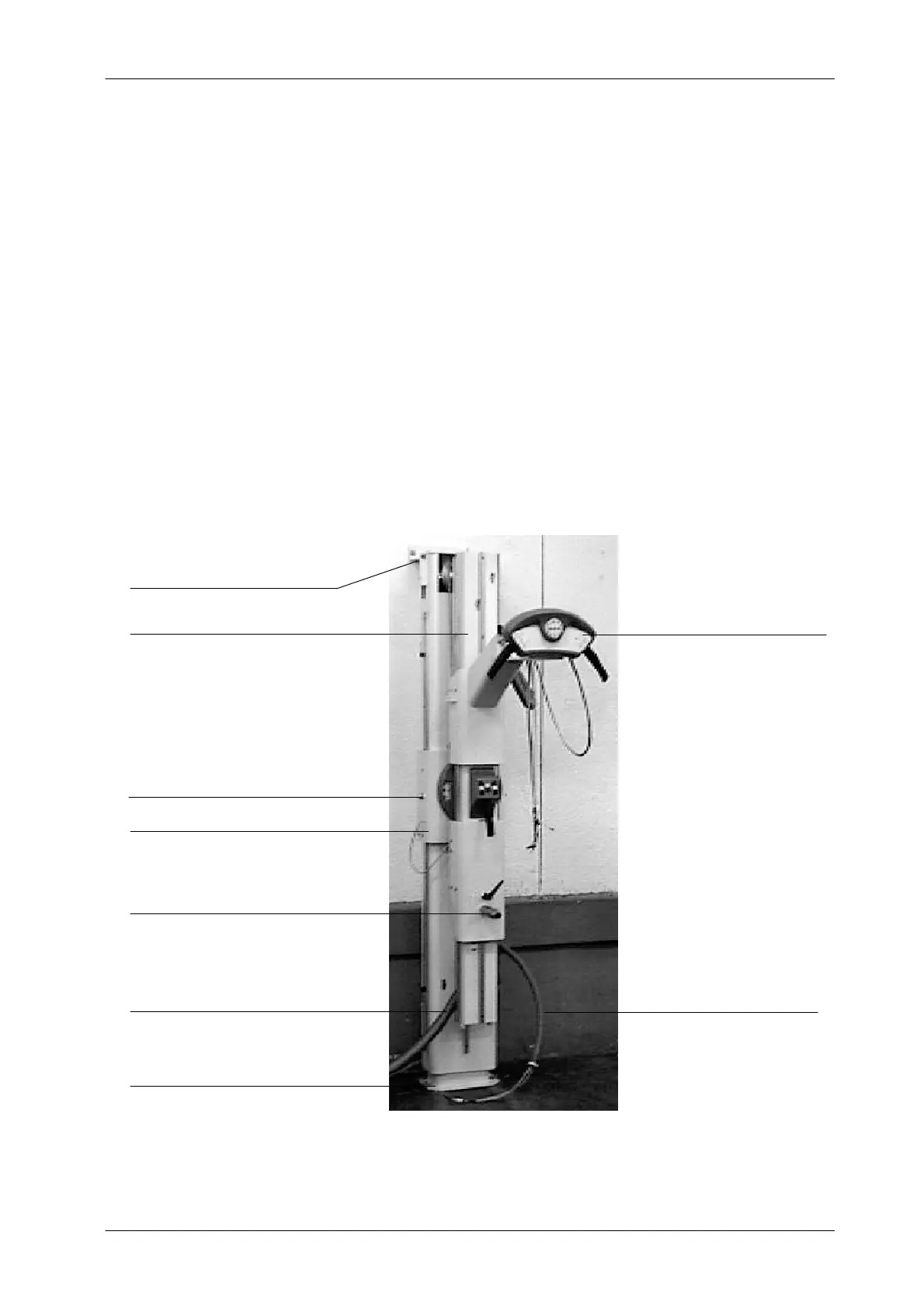

Illustration 3-3
Column anchoring
SAFETY LOCKING ROD
UPPER WALL SUPPORT
LOWER ANCHORAGES
FRONTAL CONTROL PANEL
SWIVEL ARM
CENTRAL CARRIAGE
LOWER AXIS FOR BUCKY SUPPORT
BUCKY HARNESS
MAIN HARNESS
Note .
